› 2x Transmitter 1x Receiver Kit
› 2.4G wireless, 500ft receiving
› Zero latency and full synchronization
› Compact size, built-in Mic or Lav beltpack
› Pocket clip and Coldshoe mounting
› 3.5mm Mic input and audio output
› 180Hz low cut and Gain control
› SPL 110dB, more space for post production
› LCD display for both Tx and Rx
› 8 hours run time built-in battery
› 1.5 hours quick charging via USB-C
The Transmitter
Wireless Transmission: Digital 2.4GHz
RF Frequency Band: 2400-2483.5MHz
Frequency Response: 20Hz-20KHz
Working Distance: 500ft/150m (LOS)
Mounting: Pocket clip and Cold shoe
Audio Input: 1/8” / 3.5mm TRS Mic input
Audio Input Level: 1V (0dBV)
Power Consumption: 3.3V-4.7V
Inner Battery: 400mAh, 8 hours run time
Charging Port: USB Type C
Charging Time: 1.5 hours
Dimensions: 52x42x17mm
Weight: 39g

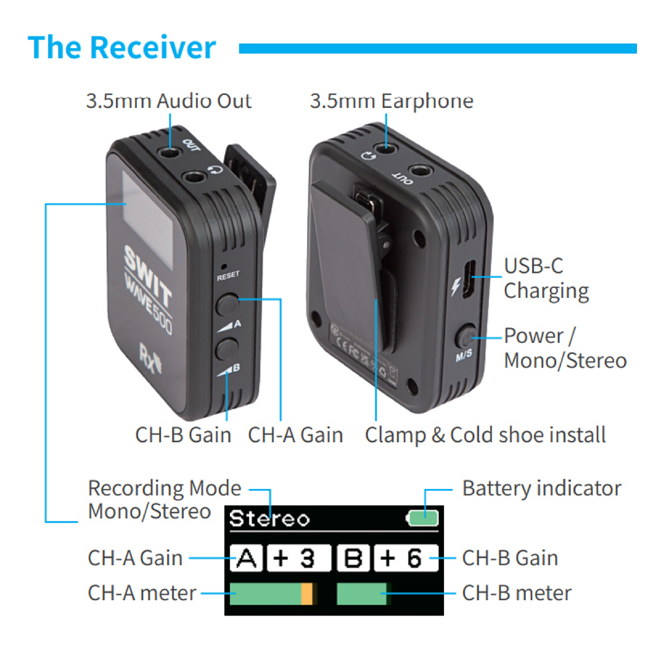

The Receiver
Wireless Transmission: Digital 2.4GHz
RF Frequency Band: 2400-2483.5MHz
RF Sensitivity: -81dBm
Working Distance: 500ft/150m (LOS)
Mounting: Pocket clip and Cold shoe
Audio Channels: 2 channels
Audio Output:
1/8” / 3.5mm TRS Mic output
1/8” / 3.5mm TRS Headphone output
Gain: 0-5 level: Audio Output Level
Line out: 1V; Headphone out: 25-30mW
Power Consumption: 3.3V-4.7V
Inner Battery: 400mAh, 8 hours run time
Charging Port: USB Type C
Charging Time: 1.5 hours
Dimensions: 52x42x17mm
Weight: 39g
Microphone
Form Factor: Built-in / External Mic
Sound Field: Mon
Polar Pattern: Omnidirectional
Frequency Range: 50Hz-20KHz
Sensitivity: -40dB (±3dB, re 1V/Pa at 1KHz)
Maximum SPL: 135dB SPL (at 1KHz)
