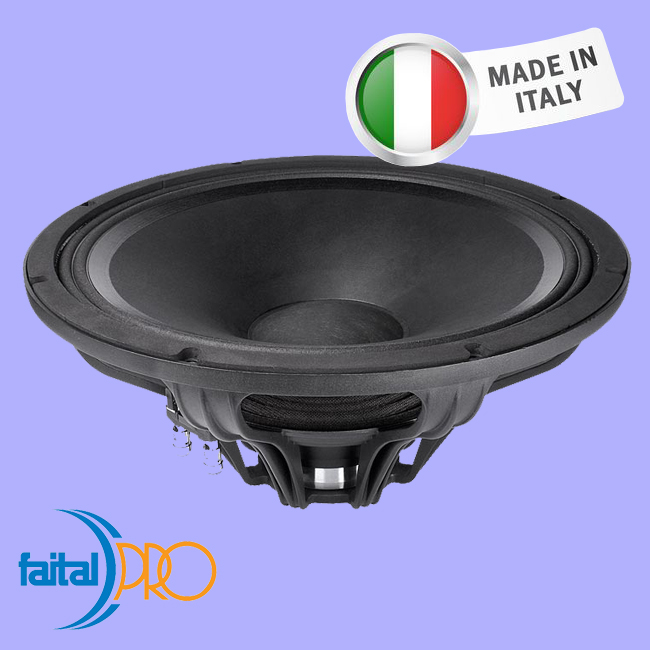

NOMINAL SPECIFICATIONS
|
Nominal Diameter |
380 mm (15 in) |
|

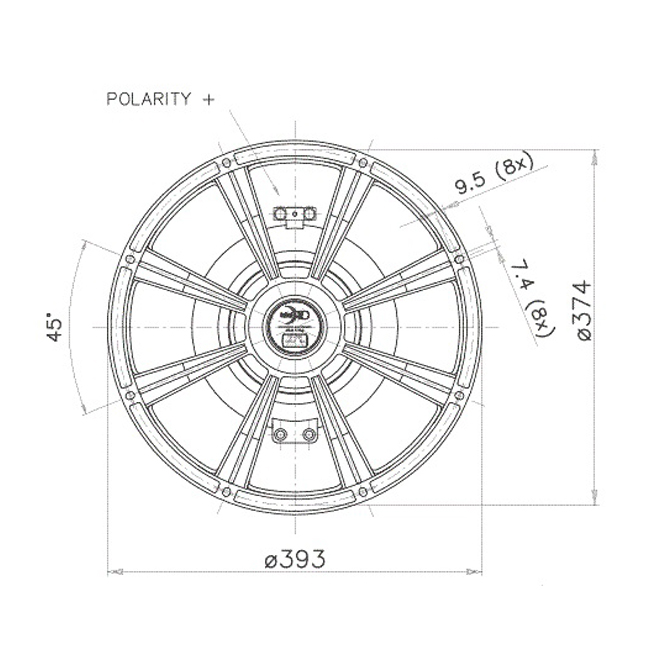

Overall Diameter |
393 mm (15.47 in) |
|
Bolt Circle Diameter |
374 mm (14.72 in) |
|
Baffle Cutout Diameter |
356 mm (14.02 in) |
|

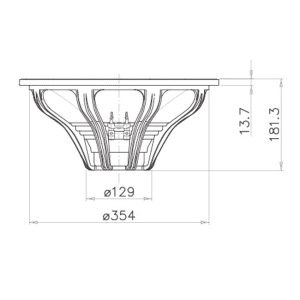

Depth |
181.3 mm (7.14 in) |
|
Flange and Gasket Thickness |
13.7 mm (0.54 in) |
|
Net Weight |
4.3 Kg (9.5 lb) |
TECHNICAL PARAMETERS
|

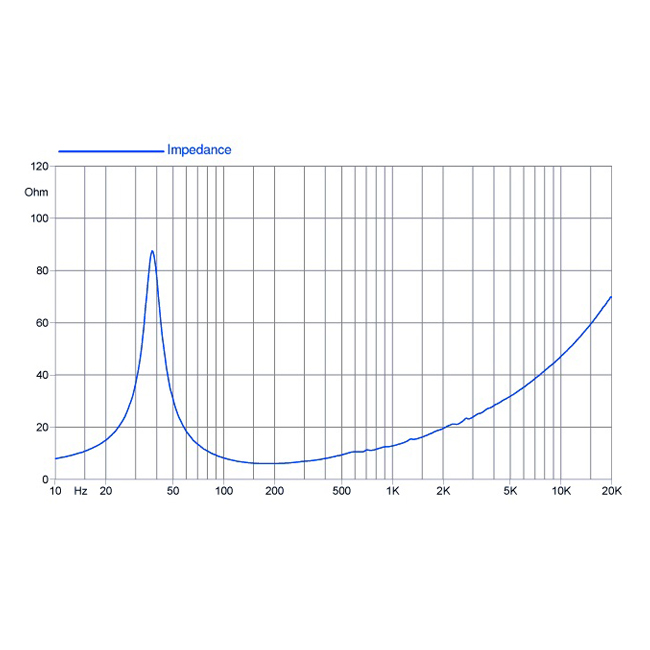

Nominal Impedance |
8 Ohm |
|
Minimum Impedance |
6 Ohm |
|
AES Power Handling (1) |
500 W |
|
Maximum Power Handling (2) |
1000 W |
|
Sensitivity (1W/1m) |
98 dB |
|

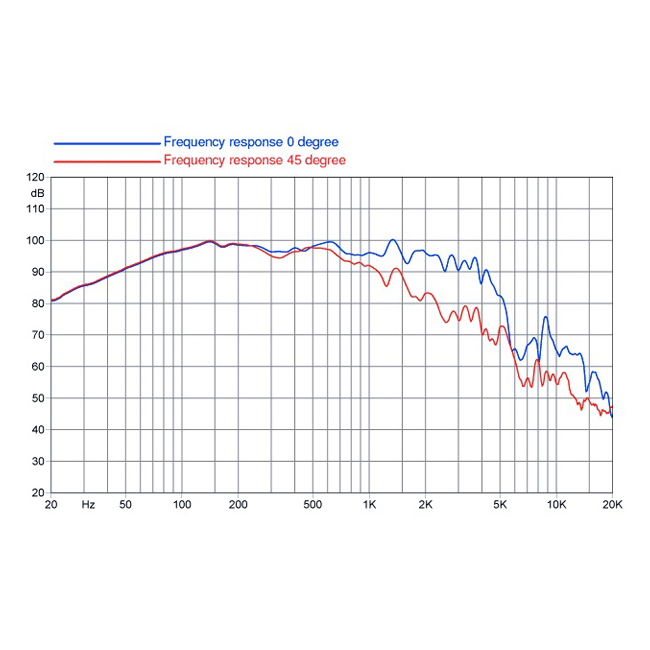

Frequency Range |
35÷3150 Hz |
|
Voice Coil Diameter |
77 mm (3 in) |
|
Winding Material |
Cu |
|
Former Material |
Glass Fiber |
|
Winding Depth |
22 mm (0.87 in) |
|
Magnetic Gap Depth |
10.5 mm (0.41 in) |
|
Flux Density |
1.2 T |
|
Magnet |
Neodymium Slug |
|
Basket Material |
Aluminum |
|
Demodulation |
No |
|
Cone Surround (3) |
M-Roll |
|
NET Air Volume filled by Loudspeaker |
3.4 dm^3 (0.120 ft^3) |
|
Spider Profile |
1x variable height waves |
THIELE AND SMALL PARAMETERS
|
Fs |
35 Hz |
|
Re |
5.1 Ohm |
|
Qes |
0.32 |
|
Qms |
10.4 |
|
Qts |
0.31 |
|
Vas |
180.5 dm^3 (6.37 ft^3) |
|
Sd |
800 cm^2 (124.00 in^2) |
|
Xmax (4) |
9.25 mm |
|
Xdamage (5) |
16 mm |
|
Mms |
104.0 g |
|
Bl |
19.2 N/A |
|
Le |
1.3 mH |
|
Mmd |
89.7 g |
|
Cms |
0.20 mm/N |
|
Rms |
2.2 Kg/s |
|
Eta Zero |
2.38 % |
|
EBP |
109 Hz |
