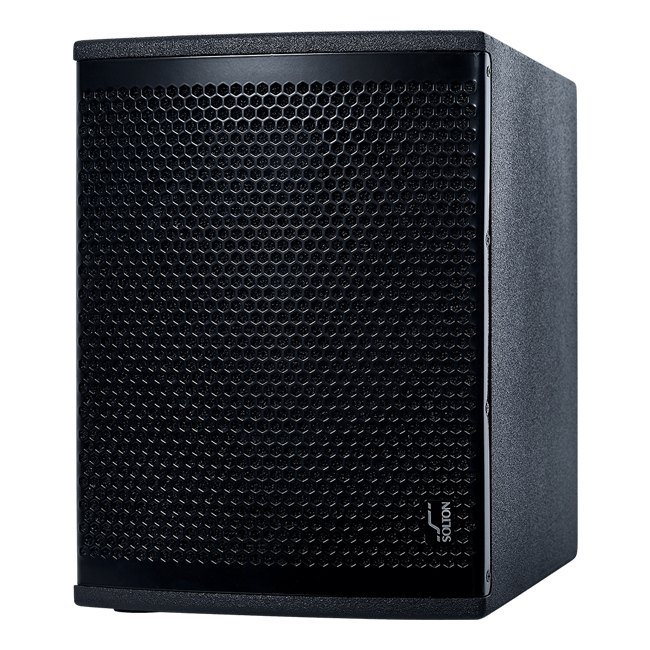

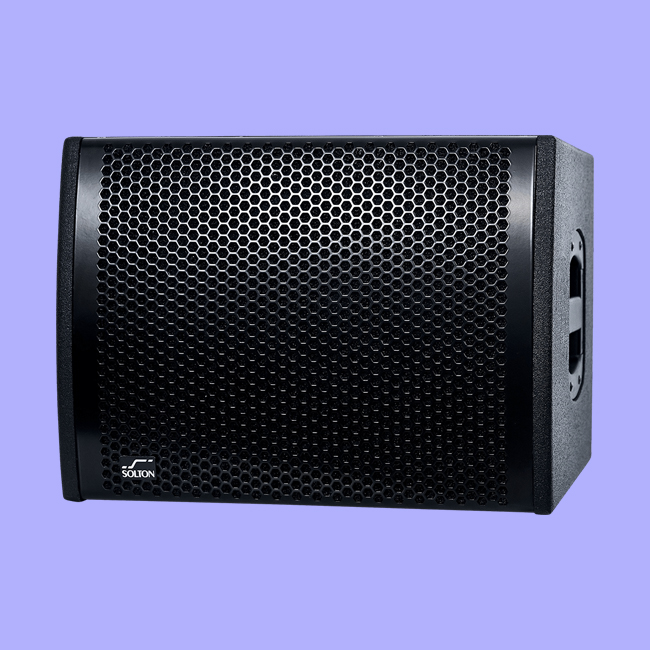

The Solton IP 10 Sub is a single 10” direct small sized subwoofer.
It has been designed to add high-output loudspeaker systems in various installed applications.
The IP 10 Sub features a long-excursion, 10” ,2” (50mm) voice coil LF transducer, and a low distortion port design in a compact reflex enclosure made of 15 mm plywood.
The integrated Handle makes this Sub also perfect for mobile use. The wall mount accessories complete this Sub to a perfect small size allrounder for installation on the ground or on walls.
Two speakon connectors (NL4) are mounted at the rear side of the enclosure for signal input (input), signal link (PARALLEL).
The IP 10 Sub has many features that make it a versatile subwoofer system.
• 1x 10” , 2” (50mm) voice coil LF Transducer
• Wallmount accessories available
• Passive subwoofer operation
• Compact design
• Integrated Handle for Easy Portability
SPECIFICATION
Loudspeaker Type: Single10”, bass-reflex, subwoofer
Frequency Range (-10dB): 40 Hz – 300
Frequency Response (+- 3dB): 50 Hz – 250
Coverage Pattern: Omni
Power Handling: 300 continuous, 1200 W peak
System Sensitivity (1w/1m): 97 dB
Maximum SPL (Calculated at 1m): 122 dB continuous, 128 dB Peak
LF Driver: 10”, 2” voice coil speaker
Nominal Impedance: 8 ohms
Crossover: active by DSP
Protection: Limiter by DSP
Enclosure: 15 mm birch plywood
Finish: Black textured paint
Fittings: Handle, Wall mount optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2x NL 4, 1+/1- IN
Dimensions mm (WxHxD): 298 x 402 x 400
Weight: 12 kg
