Electrical
Voltage: 100V ~240V,50-60HZ
Power consumption: 230W
Light Source
LED: 80W White LED @5000lm/72000lux@5m
LED lifespan: 50000 hours
Control Mode
DMX512: √
Master/slave: √
Auto: √
RDM protocol: √
Artnet: √
Channel: standard mode 16CH/ extended mode 20 CH
Optical System
Strobe: 1~30t/s
CCT: 9800K
Color wheel: 2 color wheels, 1color wheel includes: 11pcs color plates + CTO+ 1pc CTB plate + White open,semi-color effect, bi-direction flow effect. 1 pcs 6-color plate which can create rainbow effect with prism.
Fixed Gobo Wheel: 9 gobos + 2 different size beam holes+ White open+gobo shake + bi-direction flow effect
Scan: Scan: 3-phase motor, Pan 540°/1.8s,Tilt 270°/0.9s,with photoelectric auto reset and correction
Prism: 1 pc 8-facet prism 1 pc 16-facet prism, (one of the prism can be replaced by linear prism) rotate independently, stackable to be 24 facet, bilateral rotation, bi-direction flow effect.
Angle: Beam 0.85°; with frost
Touch screen Display (optional): 1.4 -inch LCD color screen, can set the channel mode (standard model, extended mode), horizontal vertical inversion, screen reversible, signal hint, switchable in both Chinese and English, automatic screen turn off / long last for display power on, display the channel number, source temperature, fan speed, record the power on time, power on times, fault prosecution, manual control channel data memory, the software version information, restore factory Settings, the scanning and the effect correction result.
Cooling system: Cooling system: intelligent-temperature-control fan, fan stop when under 40℃,fan goes faster when over 40℃,every cooling board is made with mold,so it's accurate,efficient ventilation and noiseless. SUNON FAN optional
Safety protection: The power will be cut off automatically when the fixture is overheating or with system error
Light source opening mode: support instant blackout and lights on

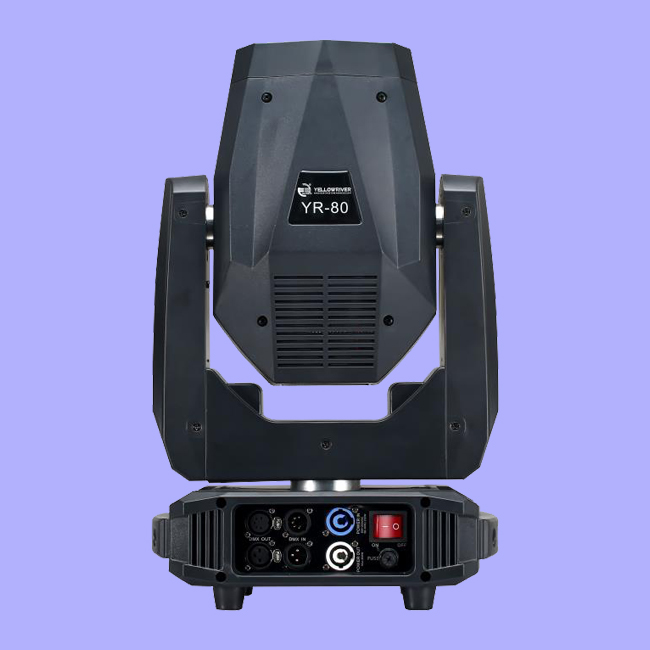

Light body: 1pc screen touch display, 4pc buttons, power interface:1 in;1 out powercon; signal interface: 3 pin + network/ 3pin+5 pin
Featured Effect
1. High efficiency cooling system, whole-process temperature monitoring.
2. 2 color wheels, 1 pc 8-facet prism +1 pc 16-facet prismsemi-color effect, bi-direction flow effect.
3. Intelligent-temperature-control fan, timely display rotation speed.
Machine N.W
11.4KG
Machine Size
298*231*473mm
Environment & Safty
Level of Protection: IP20
Stock: Clean and dry place
Running temp.: -10°C~40°C
