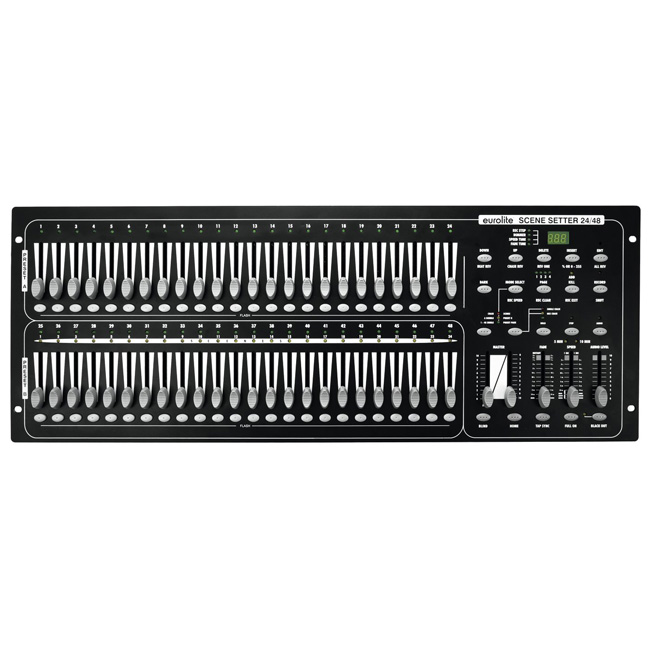

EUROLITE DMX Scene Setter 24/48
Theater light console for 48 DMX channels, brightness control for each scene
• 48 control channels
• 96 memorizable programs via 4 pages
• 24 scenes can be called up directly via the faders
• Blackout function
• Mix and single chase function
• Blind/home function
• Sound control via built-in microphone or via line input
• Supports standard MIDI
• 3-pin XLR connector with polarity selector
• Footswitch control possible
• Desktop console
• Rack installation (27”) with 6 units
• Controller useable for: general mix of colors; Controls KLS in general; Controls DMX effects; Luminaires for white
• Control: Sound to light viaMicrophone; Sound to light viaRCA (F) mounting version; DMX
• Housing design: (19”) 48.3 cm rack installation 6 U
|
Power supply: |
230 V AC, 50 Hz |
|
Power consumption: |
8,00 W |
|
DMX channels: |
48 |
|
DMX output: |
1 x 3-pin XLR (F) mounting version with polarity selector |
|
IP classification: |
IP20 |
|
Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
|
Control: |
Sound to light via Microphone |
|
Sound to light via RCA (F) mounting version |
|
|
DMX |
|
|
Color: |
Black |
|
Case color: |
Black |
|
Housing design: |
(19”) 48.3 cm rack installation 6 U |
|
Width: |
71 cm |
|
Height: |
9 cm |
|
Depth: |
26,4 cm |
|
Weight: |
6,05 kg |
