• 4K HDMI Inputs
• Embedded & Insert Audio with Sync
• Mix audio from multiple inputs
• USB Streaming Output
• Record to USB
• Joystick Camera Control
• Assignable Preview Multi-View
• Onboard video preview
• Chroma Key
• Configurable PIP video overlay
• Broadcast style TBAR
• Control remotely from XPOSE mini software for computers
• Control remotely from the XPOSE mini app for mobiles & tablets
• Support for third party apps including OBS Studio

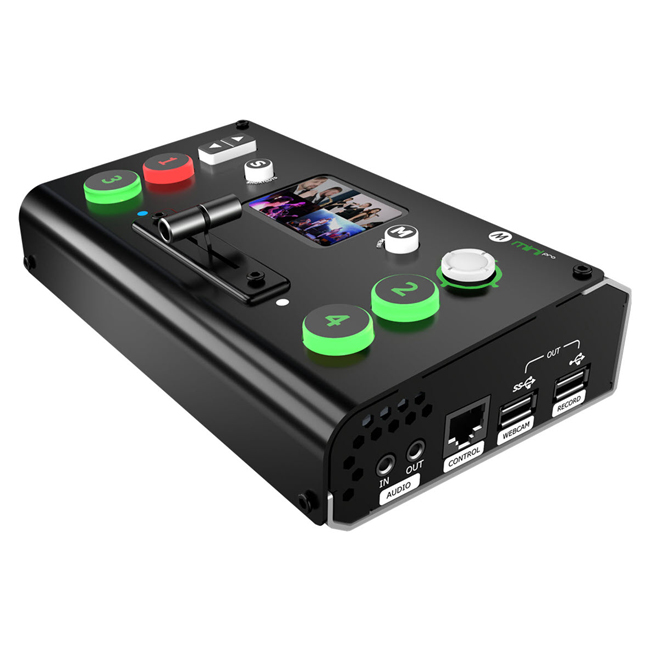

The dual channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.
Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on board with variable delay controls to bring audio into sync if needed.
In addition to HDMI and USB3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.
The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for
laptops and mobile devices too.
Mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.

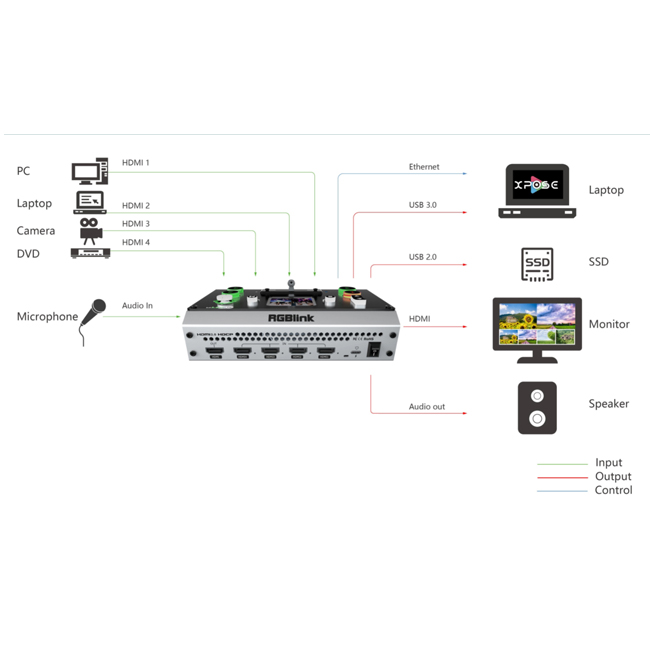

Connector
Input
HDMI 4K: 4×HDMI-A
Output
HDMI 2K: 1×HDMI-A
Streaming: 1×USB TypeA
Recording: 1×USB TypeA

Audio
In: 1×3.5mm Stereo Jack
Out: 1×3.5mm Stereo Jack
Communication
LAN: 1×RJ45
Power: 1×USB-C

Performance
Input Resolutions
HDMI
SMPTE: 720p@50/60 |1080i@50 | 1080p@24/30/50/60 |2160p@60
VESA: 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |
1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 |
1920×1080@60 | 1920×1200@60 | 3840×2160@60 | 4096×2160@60
Output Resolutions
HDMI
SMPTE: 720p@50/60 | 1080p@24/25/30/50/60
VESA: 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@24/25/30/50/60
USB: 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@24/25/30/50/60
Supported Standards
HDMI: 2.0
USB: 3.0
H.265: ITU-T H.265/ ISO/IEC 23008-2
Supported Protocol
PTZ: VISCA
Video Formats
HDMI 2.0 | HDCP 2.2
Streaming Formats
ITU-T H.265 | ISO/IEC 23008-2
Disk Formats
FAT32(≤32 GB) | exFAT(64GB~2T)
Recording Formats
MP4 | WAV
Color Space
RGB
Video Sampling
4:4:4 YUV
Latency
Line In Delay
Up to 8 frames

Power
Input Voltage
DC 12V/1.5A (via plug pack supplied)
Max Power
24W
Compatability
USB Power Delivery (PD) 3.0
Supported Cables
Certified USB PD Aware

Environment
Temperature
0℃~60℃
Humidity
10%~85%

Physical
Weight Net
0.5kg
Package
1.25kg
Dimension
Net: 180mm×118.3mm×58.4mm
Package: 255mm×145mm×85mm
