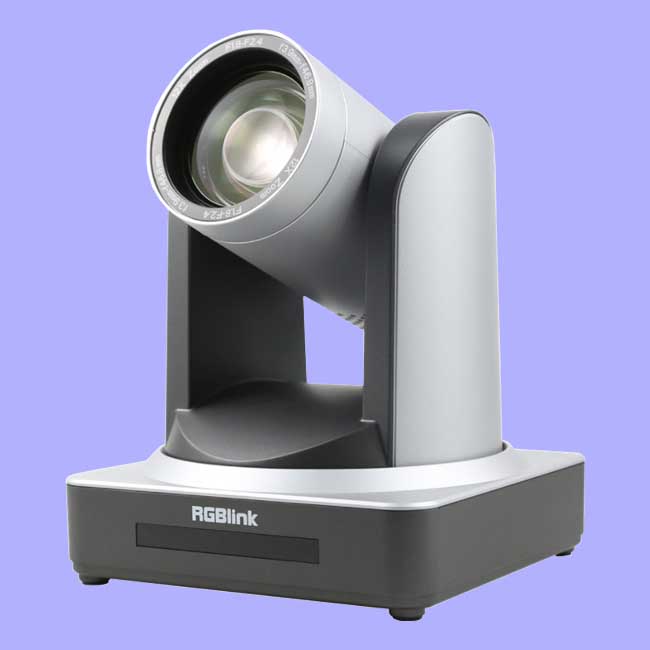

Kamera PTZ RGB12X-PTZ-WH RGBlink

Proizvod je dostupan: Na stanju

With shipment Brza pošta for 0,00 KM
1700,00 KM
Količina

Key Features
● Two models 20x & 12x with high speed optical zoom
● High performance in low light with Wide Dynamic Range
● White Balance control
● 1920x1080p FullHD camera resolution up to 60fps
● H.265/H.264 dual stream output adaption
● HDMI & SDI outputs


Connectors
Video Output:
HDMI 1xHDMI-A
SDI 1xBNC
Audio: Input 1x3.5mm mini-Jack
Communication:
Network/LAN 1xRJ45
RS232 2xDIN-8
RS485 1x2way Terminal Connector
Power: 1×HEC3800 DC Socket

Performance
Camera:
Optical Zoom 20x f=5.5~110mm; 12x f=3.9~46.8mm
Digital Zoom 10x
Viewing Angle 20x 3.3°~ 54.7°; 12x 6.3°~72.5°
AV 20x f1.6 ~ f3.5; 12x f1.8~f2.4
Illumination Min 0.5 lux (F1.8, AGC ON)
Noise Reduction (DNR) 2D & 3D
White Balance Auto | Manual | One Push | 3000K | 3500K | 4000K | 4500K | 5000K | 5500K | 6000K | 6500K |7000K
White Range (WDR) OFF | Dynamic
Focus Auto | Manual
Aperture / Shutter Auto | Manual
BLC ON | OFF
Adjustments Brightness | Color | Saturation | Contrast | Sharpness | B/W | Gamma Curve
SNR >55dB
Pixels 2.07m, 16:9
Positioning:
Movement: Pan: -170°~+170°; Tilt: -30°~+90°
Speed Pan: 0.1sec ~60°; Tilts: 0.1sec~30°/S
Presets Up to 255
Output Resolutions:
SDI | HDMI; 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60;
H.264 | H.265; 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/6
Standards Supported:
SDI; SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI; 1.3
IP Streaming H.264 | H.265
Audio AAC | MPEG3 | G.711A
PTZ Control VISCA | Pelco-D | Pelco-P
Network RTSP | RTMP | ONVIF | GB/T28181 | VISCA

Power
Input Voltage: DC12V/1.5A (via Plug Pack supplied)
Max Power: 12W

Environment
Temperature: -10℃~50℃
Humidity: 20%~80% RH
