DVC GOLD
Daslight Virtual Controller DVC Gold

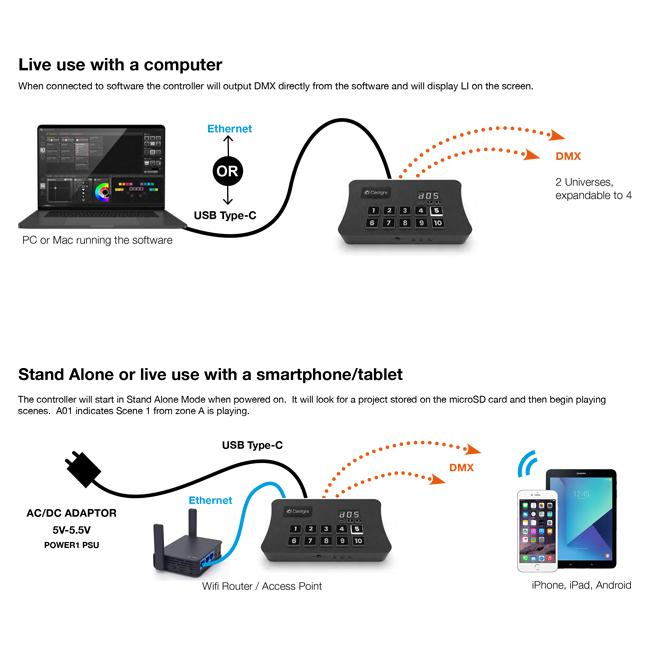

Overview The DVC GOLD is built on the latest generation of lighting controllers from Daslight and combines all our recent innovations. Use in either Live or Stand Alone mode to control a wide variety of DMX fixtures from RGB/RGBW to more advanced moving heads and specialist fixtures and stage effects. Control the DVC Gold Live through Daslight 4 & Daslight 5 software. The controller comes with a variety of features including 1024 DMX channels (expandable up to 2048 channels), DMX In/Out, 10 buttons for triggering

Key Features
• 2x DMX512 universes in live mode (computer/tablet)
• 1x DMX512 universes in stand alone mode
• Expandable from 2 to 4 DMX LIVE universes
• Expandable from 1 to 4 DMX STAND ALONE universes
• DMX in or out.
• Intuitive backlit keyboard with 10 presets
• 99 scenes (total) across 5 pages
• USB & Ethernet for programming/control
• Multi-zone microSD memory

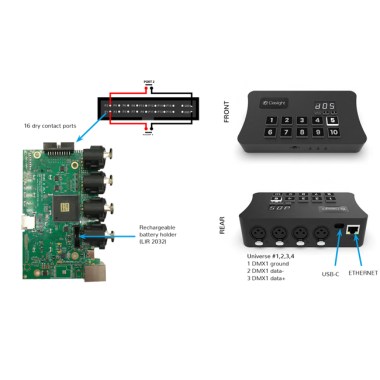

• 16 dry contact trigger ports via 20-Pin IDC Socket
• Clock & calendar Stand Alone triggers (Optional upgrade)
• Network communication. Control lighting remotely
• Windows/Mac software to create and operate live shows
• Windows/Mac software to write Stand Alone scenes
• Phone/iPad/Android remote and programming apps
• Smart Upgrade Technology (SUT)
• OEM customization

Technical Data
Input Power: 5-5.5V DC 0.6A
Output Protocol: DMX512
Programmability: Windows, Mac OS, iOS, Android

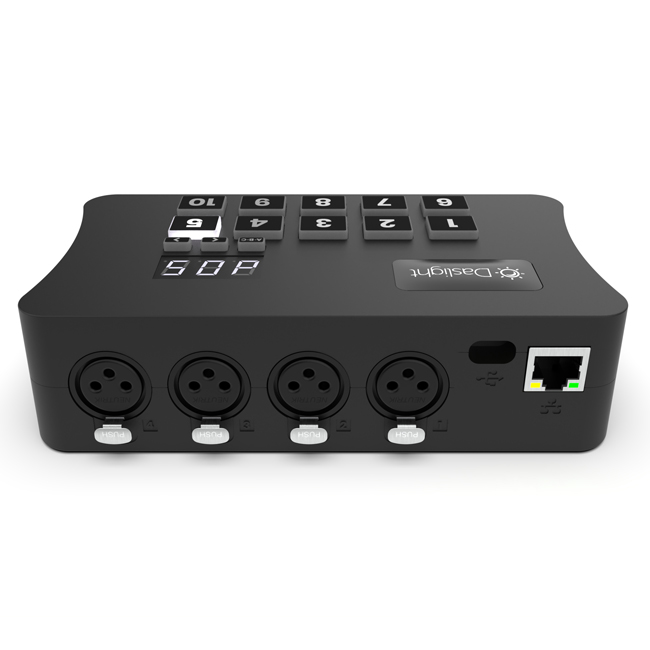

Connections: Type C USB, XLR3, Ethernet, 20-Pin (2x10) Male IDC Socket, battery
Memory: microSD SD & SDHC (32Gb Max)
Environment: IP20. 0°C - 50°C
Buttons: 10 buttons for direct access 2 buttons to change scene + 1 button to change zone
Dimensions: 160x90x45mm 268g
OS Requirements Mac OS X 10.13 onwards
Windows 8.1 64bit onwards
Standards: EC, EMC, ROHS
