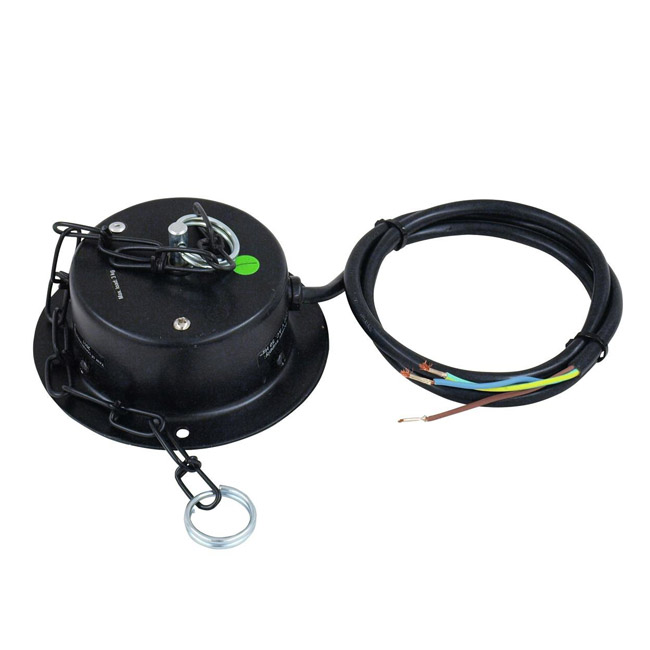

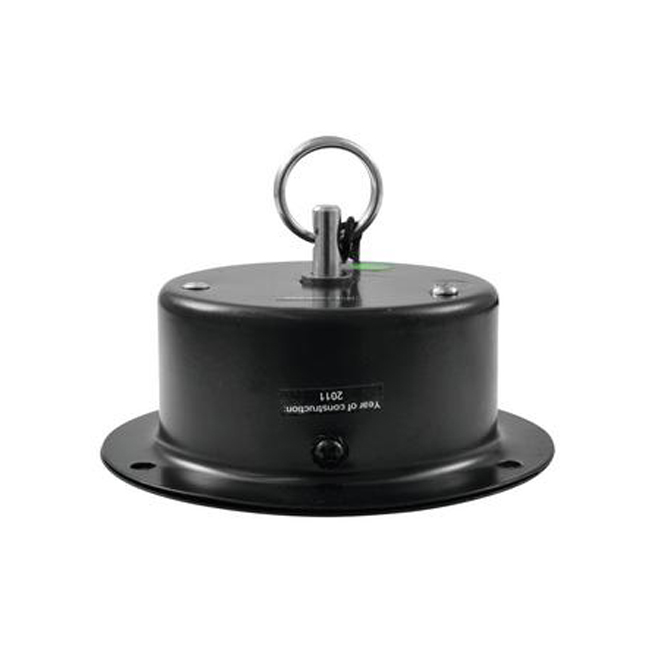

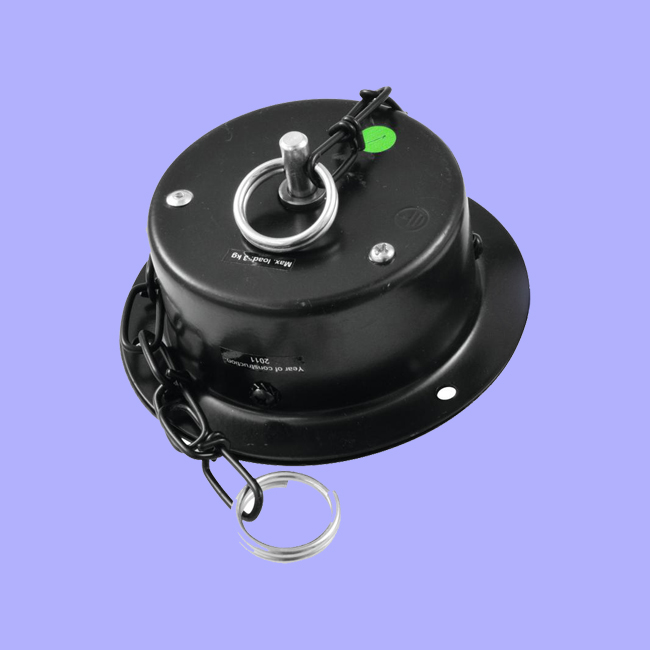

Motor for mirror balls up to 30 cm with 3 RPM
• Suitable for driving mirror balls up to a maximum weight of 3 kg
• This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
• The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
• 3 rotations per minute
• Delivered with open cable-ends
• For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
• The motor always has to be installed with a secondary safety attachment
• Before taking into operation for the first time, the installation has to be approved by an expert
• Power connection: Fix Power supply cord with safety plug (M)
Power supply: |
230 V AC, 50 Hz |
Maximum load: |
3 kg |
Max. diameter of mirror ball: |
30 cm (EUROLITE) |
Rotation-speed: |
approx. 3 RPM |
Diameter of base plate: |
113 mm |
Height: |
58 mm |
Weight: |
0,3 kg |
Power consumption: |
4 W |
Maximum load: |
3 kg |
Diameter: |
10,8 cm |
Height: |
5,8 cm |
Power connection: |
Fix Power supply cord with safety plug (M) |
Rotation: |
3 RPM |
Power supply: |
230 V AC, 50 Hz |
⬆
