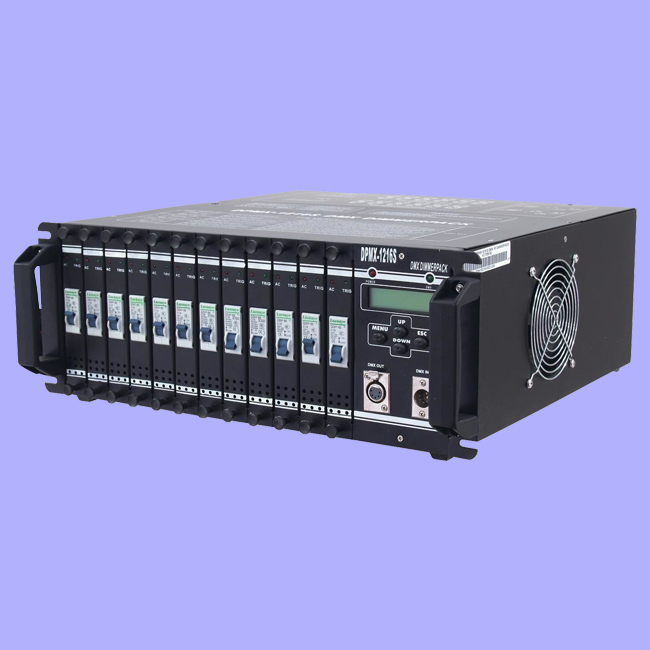

EUROLITE DPMX-1216 S DMX Dimmer Pack

12 x 16A dimmer, service friendly modules, 12 safety sockets

Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted.
The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout.
Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.

• 12-channel dimmer pack with up to 16 A output per channel
• Modular design of the individual dimmer modules for quick and easy change
• 3-phase or 1-phase power supply
• Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
• Curve function for selection of different fade modes
• Dim or switch option assignable to each channel
• DMX Fail function: automatic digital input check to detect DMX signal errors
• Manual mode for dimming capability without an external lighting controller
• Synchronization of several devices possible via DMX
• Automatic circuit breaker per channel (type C)
• Channel outputs on the rear panel via safety sockets
• Only for professional use
• 12 integrated Showprograms
• Preprogrammed 12 chasers
• Can be operated in 12 CH mode
• Controlling by stand-alone; DMX
• (19") 48.3 cm rack installation 4 U

Power supply: 230/380 V AC, 50 Hz
Output power: Max. 43470 W; Max. 3680 W per channal
Output current: Max. 189 A
Power connection: Mains input via screw terminal
Power output: 12 x Safety contact (F), hinged lid mounting version
Power output fuse per channel: C 16 A Fuse resettable
Programs: Preprogrammed 12 Chasers
DMX channels: 12
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: Stand-alone; DMX
Control channels: 12
Color: Black
Housing design: (19") 48.3 cm rack installation 4 U
Dimensions: Width: 48,3 cm; Depth: 52,0 cm; Height: 17,8 cm
Weight: 18,70 kg
