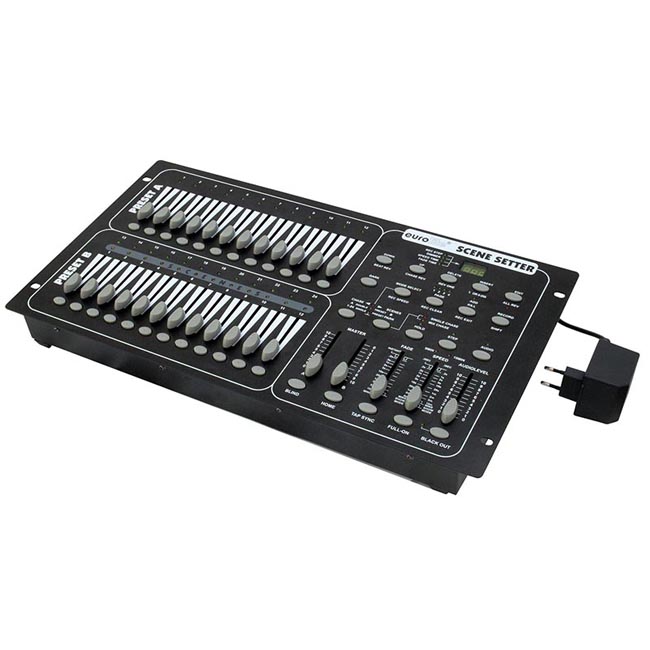

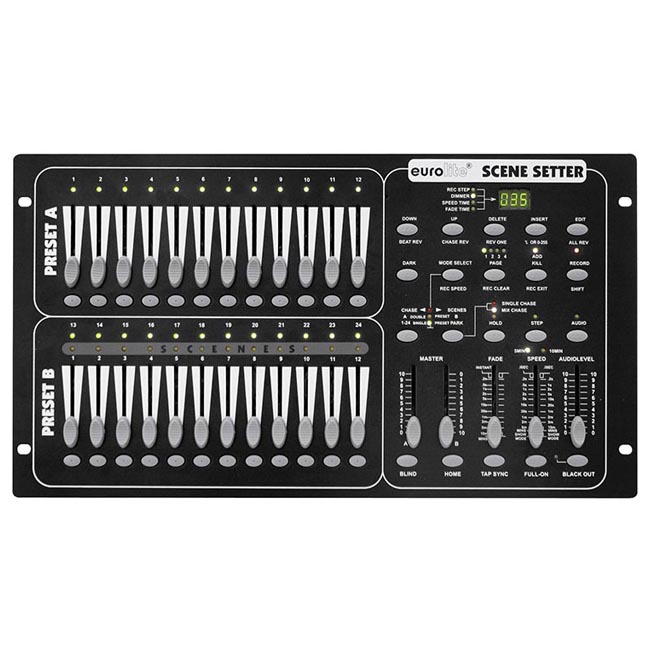

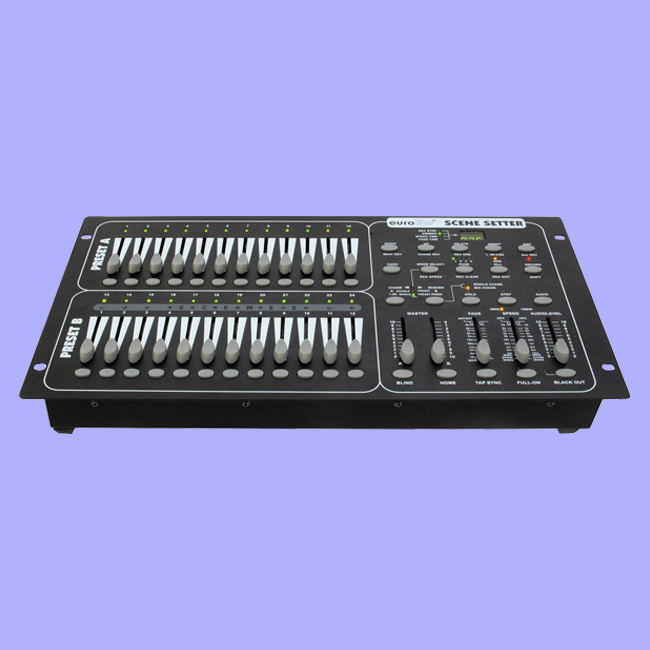

Theater light console for 24 DMX channels, brightness control for each scene

12 scenes can be called up directly via the faders
Blackout function
Mix and single chase function
Blind/home function
Supports standard MIDI
3-pin XLR connector with polarity selector
Footswitch control possible
Desktop console
Rack installation with 6 units
Programmable 48 chasers 12 scenes
Can transmit up to 24 DMX channels
Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version
(19") 48.3 cm rack installation 6 U

Power supply: 230 V AC, 50 Hz; 12 V DC 500 mA
Power consumption: 4.00 W
IP classification: IP20
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Programs: Programmable 48 Chasers; 12 Scenes
DMX channels: Output 24

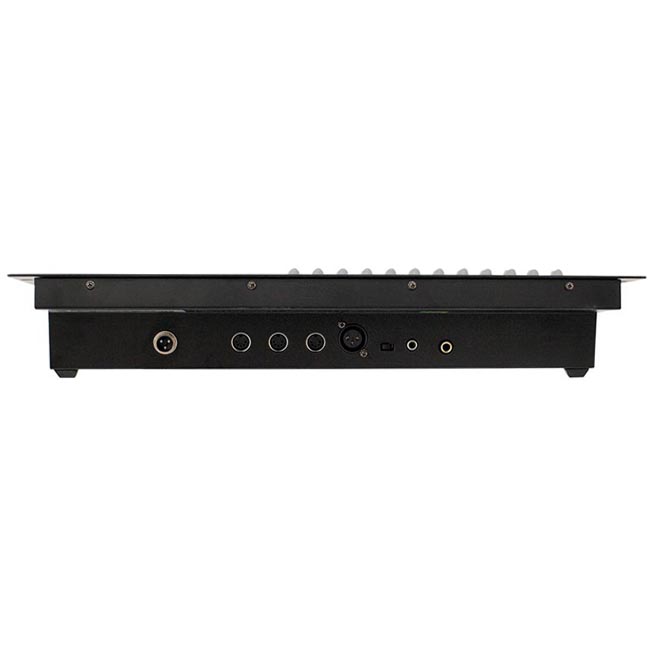

DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version
Housing color: Black
Control elements: DMX polarity selector, power switch
Color: Black
Mounting depth: 80 mm
Housing design: (19") 48.3 cm rack installation 6 U
Dimension: 48.3 x 26.4 x 8.9 cm
Weight: 4.30 kg
