Specification
Voltage：AC110V-240V
Frequency：50/60Hz
Rated Power：80W
LED: 10WX7pcs RGBWA+UV(6 IN 1)
Control：DMX512
25°(40° option)
Beam angle:
Channel: 11/7 channels (switchable)
Control Mode：
DMX/sound active/auto/ master-slave/manual
Level of Protection: IP65
Stock: Clean and Dry place
Running Temp.: 0°C~40°C
Weight: 3.6kg
Size: 22x24x19cm (excluding bracket)

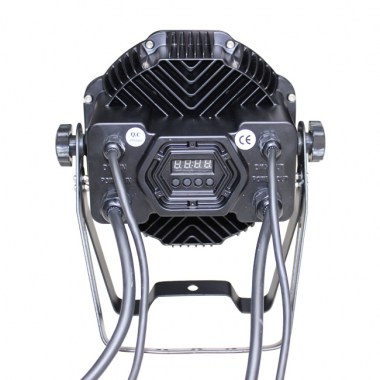

1. Display
Display menu and selected function.
2. Button
MENU
Switch menu function
UP
On function: page up
On numerical value: increase value
DOWN
On function: page down
On numerical value: reduce value
ENTER
Settle selected function and value
3. DMX signal input
Control model by DMX signal，please use 3pin XLR signal cable.
4. DMX Signal output
Transfer DMX signal to next model, please use 3pin XLR signal cable.
5. Power output
Connect to obtain power (attention：please use connect to stated voltage.)
6．Power input
Connect to obtain power
