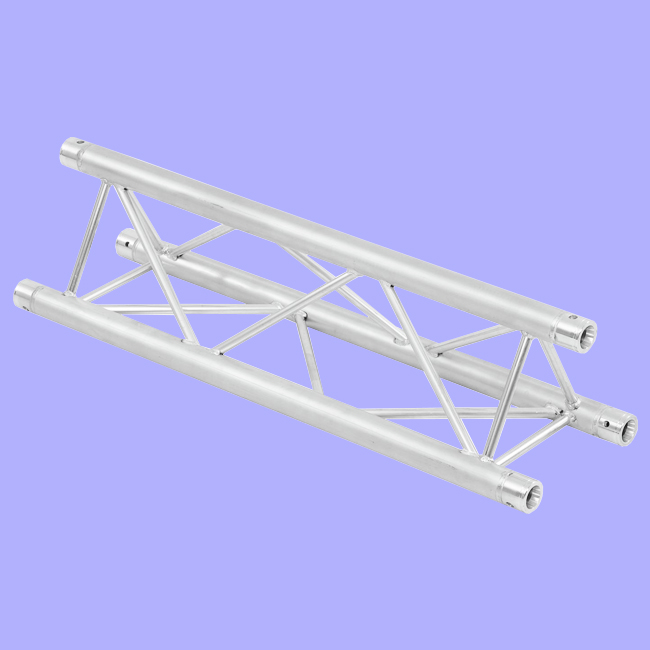

AluTruss TRILOCK 6082-3000 3-Way Cross Beam


• Strong EN-AW 6082 alloy for high loads
• High-quality aluminum-tubes with 50 mm in diameter
• Easy installation
• Low weight

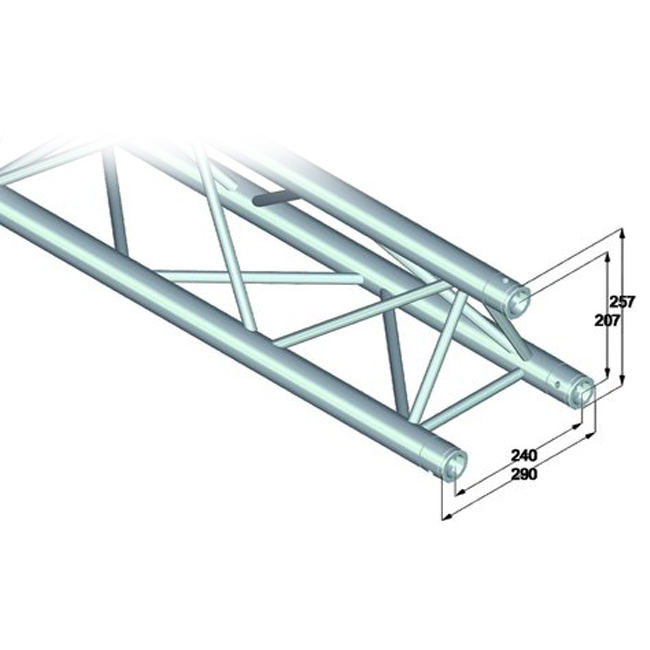

• Distance center - center: horizontal 240 mm, vertical 207 mm
• For exhibition and shop installers, discotheque and theatre installations
• 1 x Connection set included
• Made in Europe

Main chords: 50 x 2 mm
Braces: 16 x 2 mm
Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
Welding material: AlMg 5
Welding technique: TIG-welding

Outer dimensions:
Width: 290 mm
Height: 257 mm
Length: 3000 mm
Weight: 10.7 kg
Strut: 16 x 2mm
