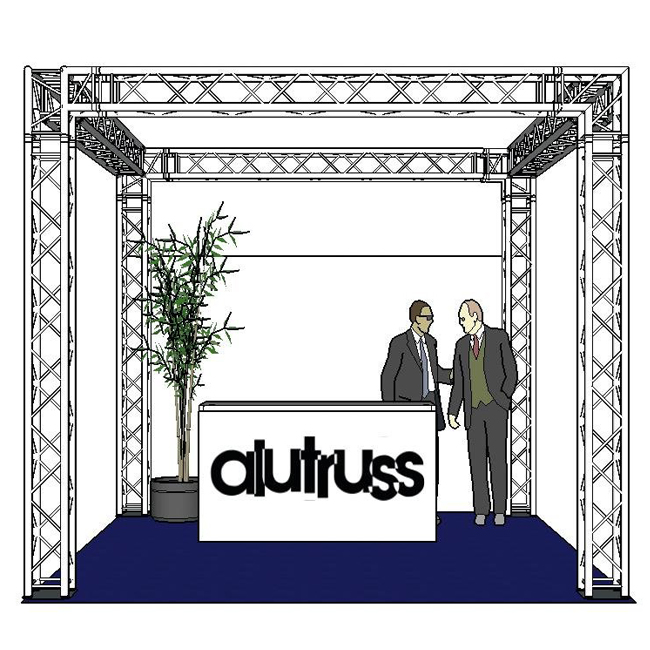

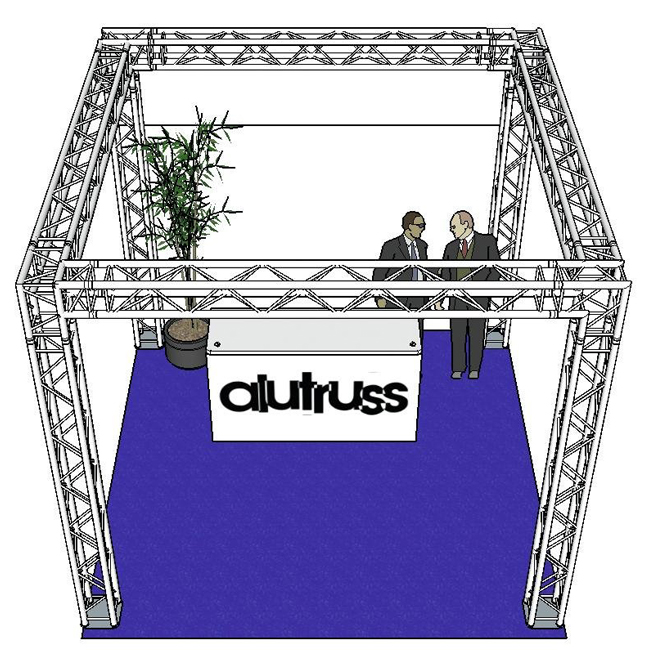

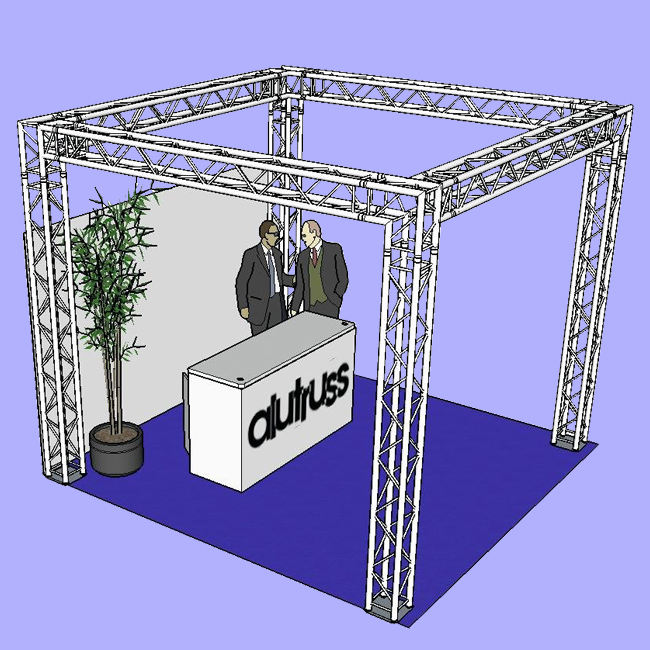

ALUTRUSS Truss set QUADLOCK 6082 square 4x4x3.5m (WxDxH)

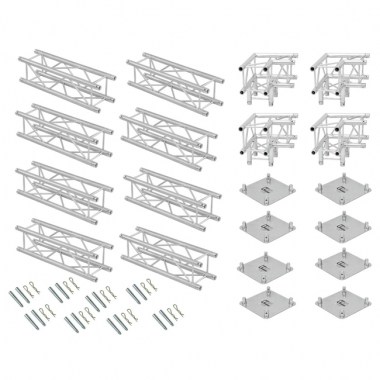

Set consisting of:
8x ALUTRUSS QUADLOCK 6082-3000 4-Way Cross Beam
4x ALUTRUSS QUADLOCK 6082L-30 3-Way Corner 90°
8x ALUTRUSS QUICK-LOCK Spare Pivot with Pin
4x ALUTRUSS QUADLOCK End Plate QQGP-Male

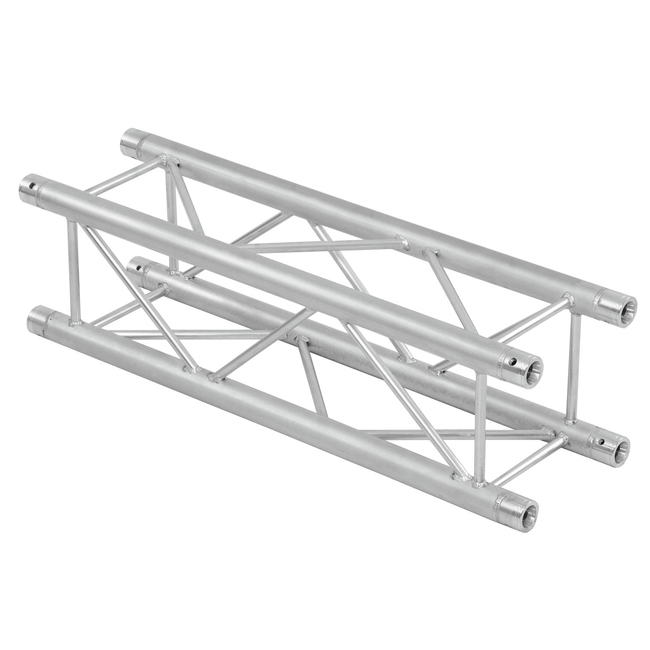

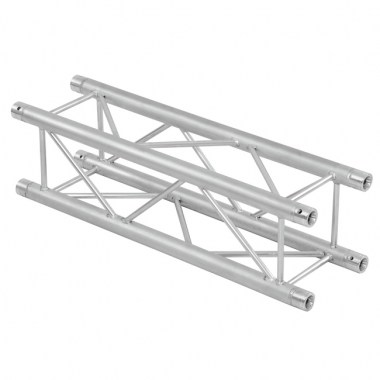

ALUTRUSS QUADLOCK 6082-3000 4-Way Cross Beam
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Trusspipe: 50 mm
- TÜV Süd

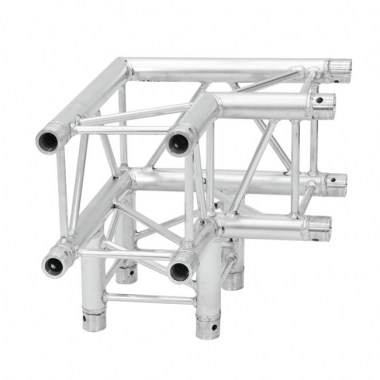

ALUTRUSS QUADLOCK 6082L-30 3-Way Corner 90°
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 2 x Connection set included
- Trusspipe: 50 mm
- Made in Europe

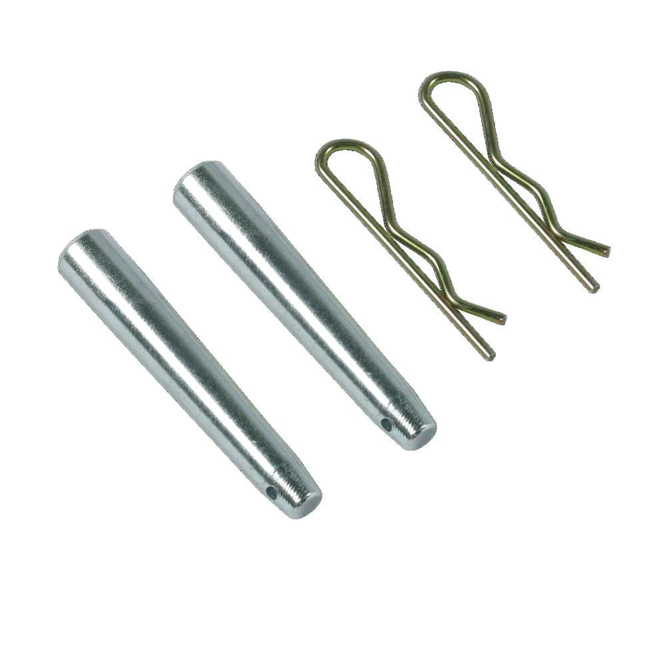

ALUTRUSS QUICK-LOCK Spare Pivot with Pin
QUICK-LOCK Set
- Accessories for the robust truss system with Quick-Lock
- For use with TRI/QUAD system
- Trusspipe: 50 mm
- Made in Europe

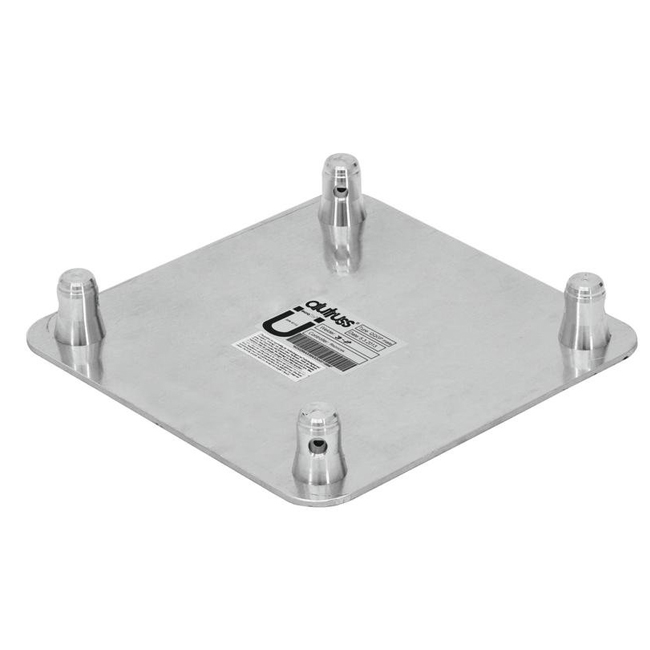

ALUTRUSS QUADLOCK End Plate QQGP-Male
- Trusspipe: 50 mm
- Made in Europe
ALUTRUSS QUADLOCK 6082-3000 4-Way Cross Beam
|
Color: |
Alu colored |
|
Trusspipe: |
50 mm x 2 mm |
|
Welding material: |
AlMg 5 |
|
Welding technique: |
TIG-welding |
|
Alloy: |
AIMgSi1 T6 |
|
Strut diameter x thickness: |
16 x 2mm |
|
Length: |
3000 mm |
|
Width: |
290 mm |
|
Height: |
290 mm |
|
Weight: |
14,2 kg |
ALUTRUSS QUADLOCK 6082L-30 3-Way Corner 90°
|
Color: |
Alu colored |
|
Trusspipe: |
50 mm x 2 mm |
|
Strut diameter x thickness: |
16 x 2mm |
|
Length: |
500 mm |
|
Width: |
500 mm |
|
Height: |
500 mm |
|
Weight: |
7,95 kg |
ALUTRUSS QUICK-LOCK Spare Pivot with Pin
|
Color: |
Alu colored |
|
Trusspipe: |
50 mm |
|
Weight: |
0,09 kg |
ALUTRUSS QUADLOCK End Plate QQGP-Male
|
Color: |
Alu colored |
|
Trusspipe: |
50 mm |
|
Weight: |
1,45 kg |
