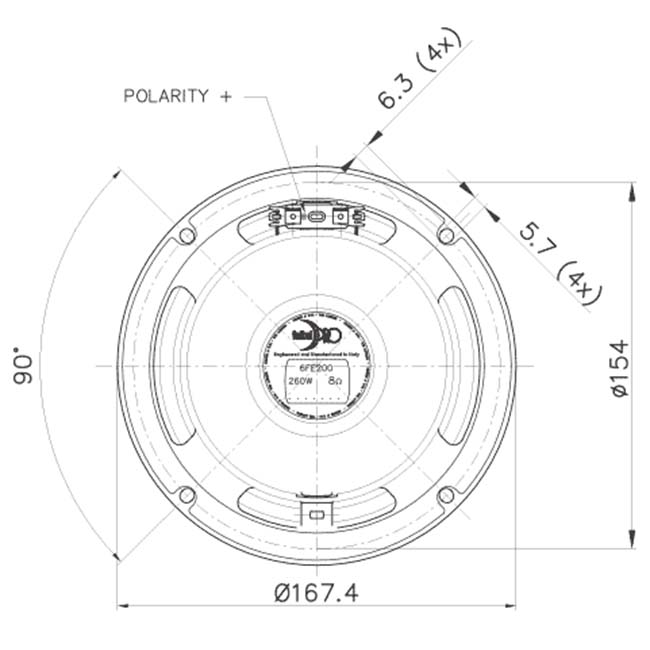

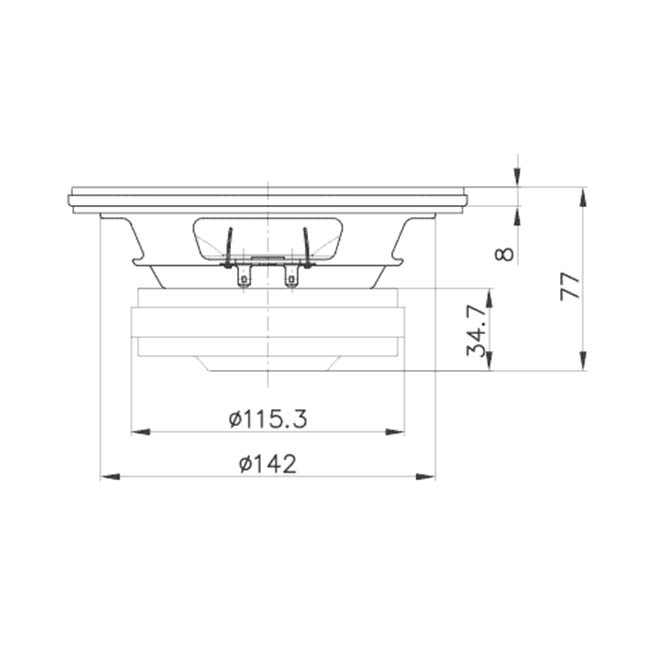

Nominal Specifications
Nominal Diameter: 160 mm (6 in)
Overall Diameter: 167.4 mm (6.59 in)
Bolt Circle Diameter: 154 mm (6.06 in)
Baffle Cutout Diameter: 144 mm (5.67 in)
Depth: 77 mm (3.03 in)
Flange and Gasket Thickness: 8 mm (0.31 in)
Net Weight: 2 Kg (4.4 lb)

Technical Parameters
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.8 Ohm
AES Power Handling: 130 W
Maximum Power Handling: 260 W
Sensitivity (1W/1m): 95 dB
Frequency Range: 85÷6000 Hz
Voice Coil Diameter: 37 mm (1.46 in)
Winding Material: Al
Former Material: Kapton
Winding Depth: 12 mm (0.47 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: M-Roll
NET Air Volume filled by Loudspeaker: 0.45 dm^3 (0.016 ft^3)
Spider Profile: 1x constant height waves

Thiele and small parameters
Fs: 120 Hz
Re: 5.9 Ohm
Qes: 0.75
Qms: 6.2
Qts: 0.67
Vas: 3.0 dm^3 (0.11 ft^3)
Sd: 118 cm^2 (18.29 in^2)
Xmax: 4.67 mm
Xdamage: 10.4 mm
Mms: 11.5 g
Bl: 8.2 N/A
Le: 0.4 mH
Mmd: 11.1 g
Cms: 0.15 mm/N
Rms: 1.4 Kg/s
Eta Zero: 0.67 %
EBP: 160 Hz
