Type: Elliptical Tractrix
Throat Diameter: 25.4 mm (1 in)
Frequency Range: 1÷20 kHz
Recommended Crossover Freq.: 1.4 kHz
Horizontal Nominal Coverage (-6dB): 80°
Vertical Nominal Coverage (-6dB): 70°
Directivity Index: 8 dB
Material: Al

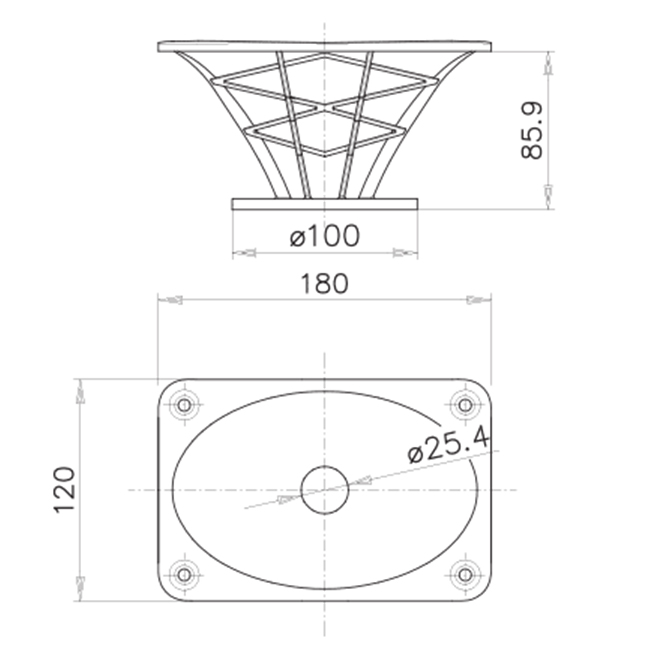

Mouth Height: 120 mm (4.72 in)
Mouth Width: 180 mm (7.09 in)
Depth: 85.9 mm (3.38 in)
Mouth Mounting Holes: 6.5 mm (0.26 in)
Net Weight: 460 g (1.01 lb)
