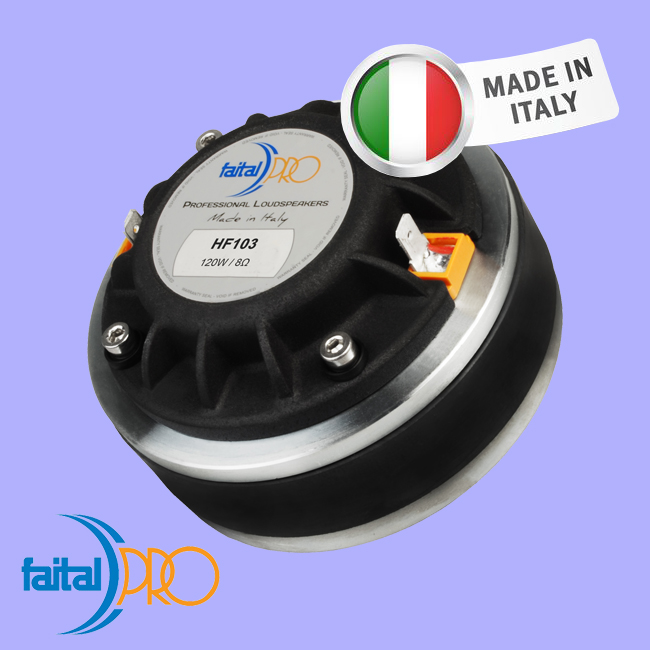

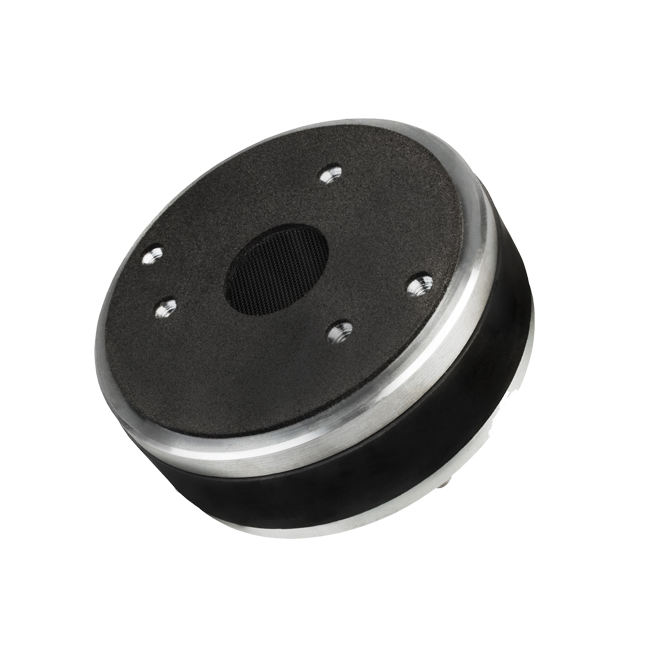

Driver HF103 1″ Faital PRO

Proizvod je dostupan: Nema na stanju

Nominal Specifications
Throat Diameter: 25.4 mm (1 in)

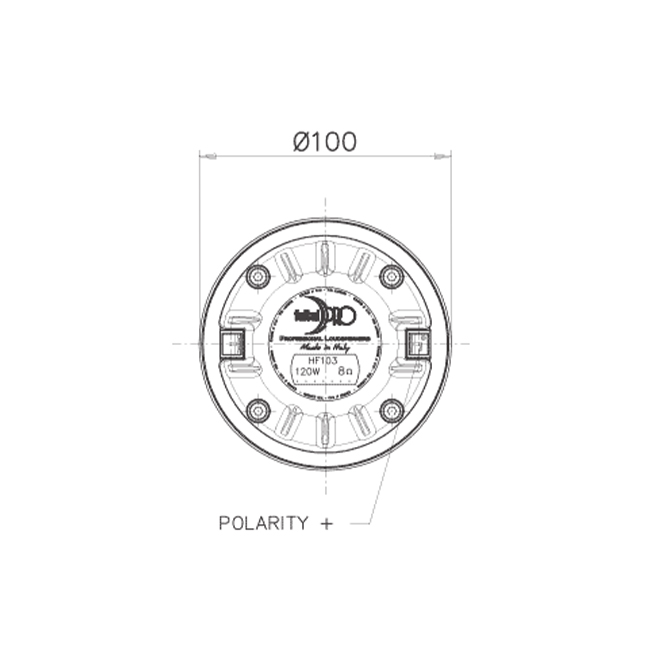

Overall Diameter: 100 mm (3.94 in)

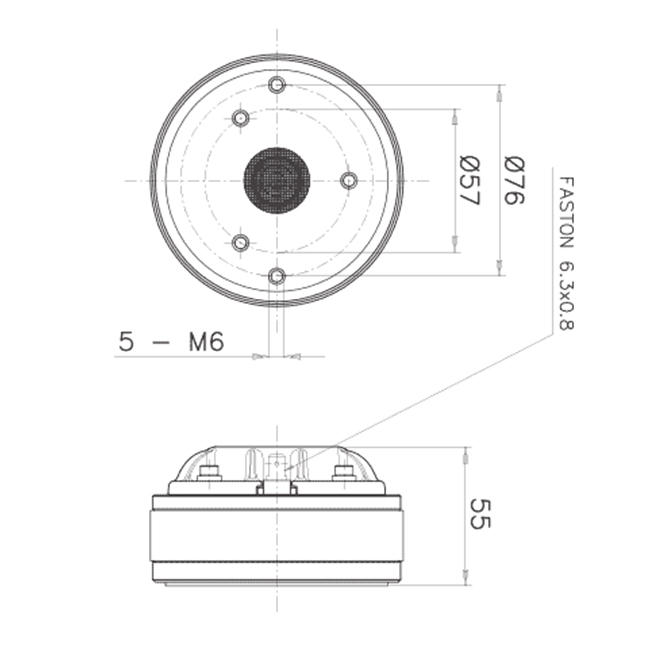

180° Mounting Holes Diameter (2xM6): 76 mm (2.99 in)
Depth: 55 mm (2.17 in)
Net Weight: 1.3 Kg (2.9 lb)

Technical Parameters
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.8 Ohm
AES Power Handling: 60 W
Maximum Power Handling: 120 W
Minimum Crossover Frequency: 1.3 kHz
Sensitivity (1W/1m): 107 dB
Frequency Range: 1÷20 kHz
Voice Coil Diameter: 44 mm (1.73 in)
Winding Material: Al
Former Material: Kapton
Diaphragm Material: Ketone Polymer
Diaphragm Shape: Dome
Winding Depth: 2.3 mm (0.09 in)
Magnetic Gap Depth: 2.85 mm (0.11 in)
Flux Density: 1.5 T
Magnet: Ferrite Ring
Re: 5.8 Ohm
Phase Plug Design: Annular
Exit Angle: 13° Conical
NET Air Volume filled by HF Driver: 0.33 dm^3 (0.011 ft^3)
