Nominal Diameter

380 mm (15 in)

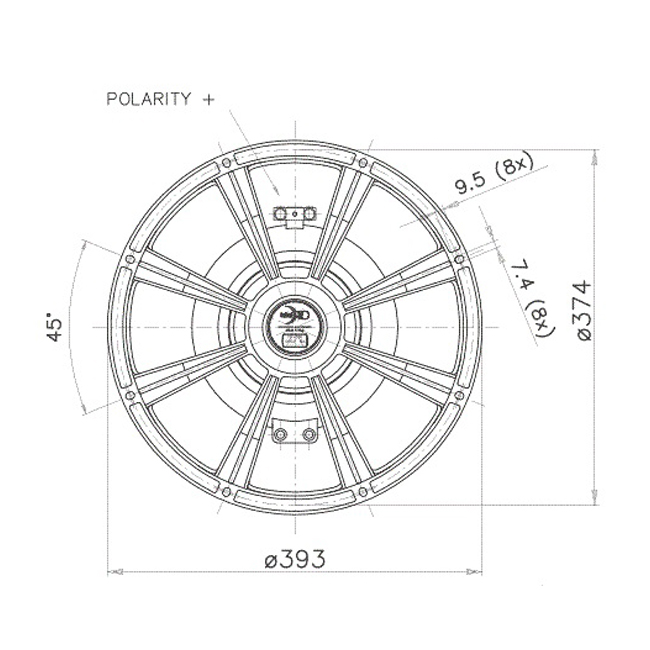

Overall Diameter

393 mm (15.47 in)

Bolt Circle Diameter

374 mm (14.72 in)

Baffle Cutout Diameter

356 mm (14.02 in)

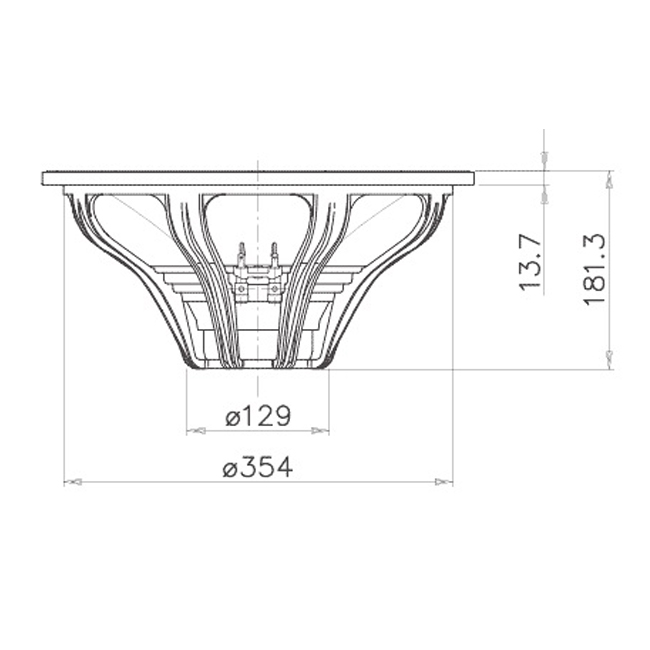

Depth

181.3 mm (7.14 in)

Flange and Gasket Thickness

13.7 mm (0.54 in)

Net Weight

4.3 Kg (9.5 lb)

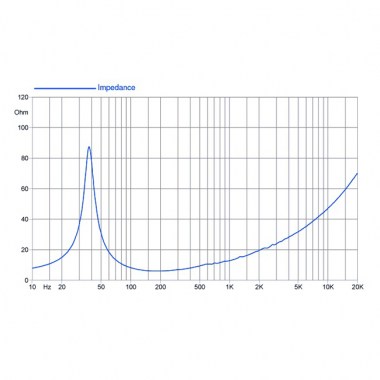

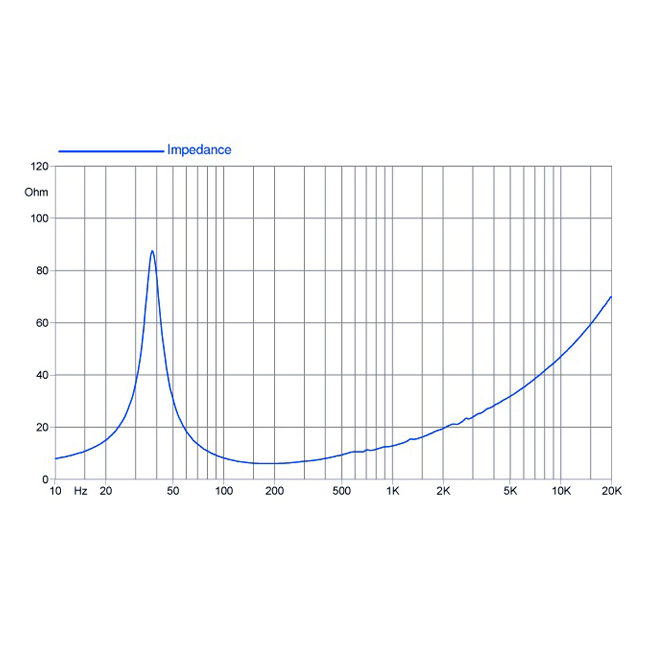

Nominal Impedance

8 Ohm

Minimum Impedance

6 Ohm

AES Power Handling (1)

500 W

Maximum Power Handling (2)

1000 W

Sensitivity (1W/1m)

98 dB

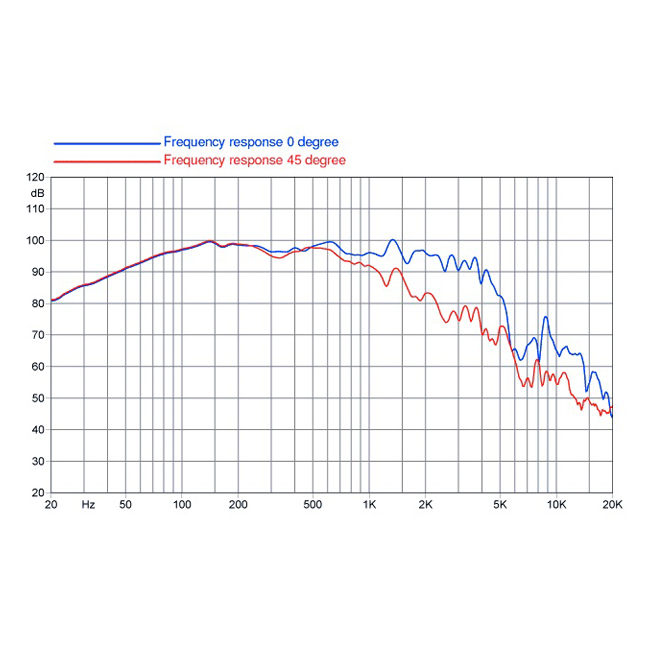

Frequency Range

35÷3150 Hz

Voice Coil Diameter

77 mm (3 in)

Winding Material

Cu

Former Material

Glass Fiber

Winding Depth

22 mm (0.87 in)

Magnetic Gap Depth

10.5 mm (0.41 in)

Flux Density

1.2 T

Magnet

Neodymium Slug

Basket Material

Aluminum

Demodulation

No

Cone Surround (3)

M-Roll

NET Air Volume filled by Loudspeaker

3.4 dm^3 (0.120 ft^3)

Spider Profile

1x variable height waves

Fs

35 Hz

Re

5.1 Ohm

Qes

0.32

Qms

10.4

Qts

0.31

Vas

180.5 dm^3 (6.37 ft^3)

Sd

800 cm^2 (124.00 in^2)

Xmax (4)

9.25 mm

Xdamage (5)

16 mm

Mms

104.0 g

Bl

19.2 N/A

Le

1.3 mH

Mmd

89.7 g

Cms

0.20 mm/N

Rms

2.2 Kg/s

Eta Zero

2.38 %

EBP

109 Hz
