Nominal Diameter

300 mm (12 in)

Overall Diameter

316 mm (12.44 in)

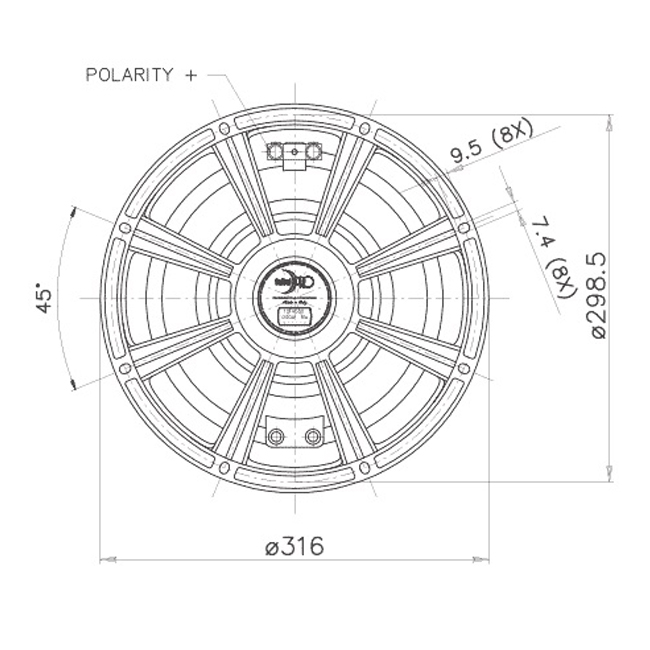

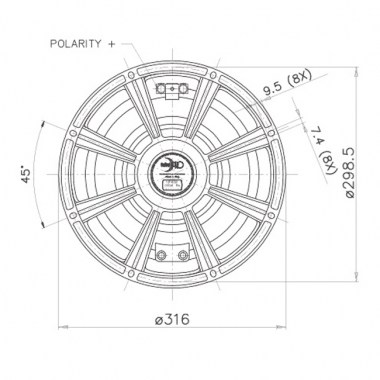

Bolt Circle Diameter

298.5 mm (11.75 in)

Baffle Cutout Diameter

284 mm (11.18 in)

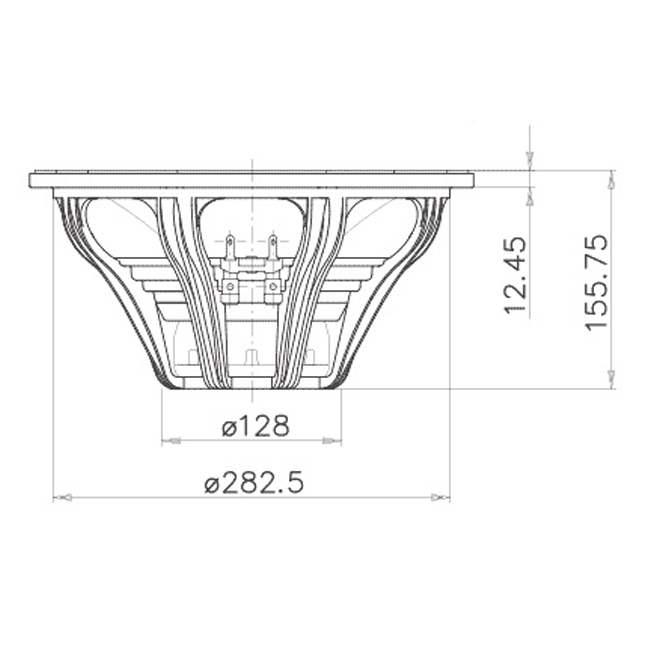

Depth

155.75 mm (6.13 in)

Flange and Gasket Thickness

12.5 mm (0.49 in)

Net Weight

4.2 Kg (9.3 lb)

Shipping Box
(Single Carton Box)

350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in)

Shipping Weight

5 Kg (11.0 lb)

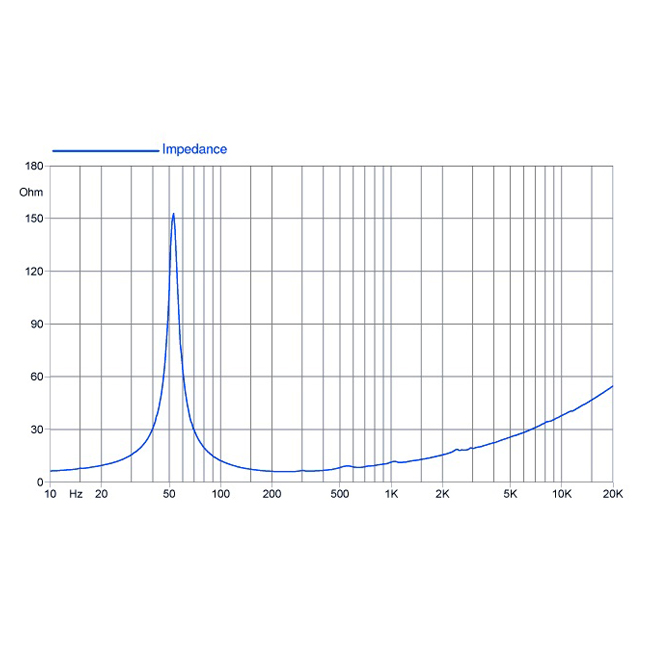

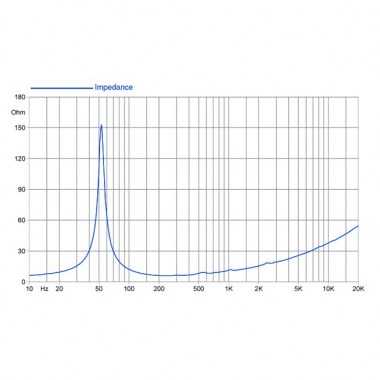

Nominal Impedance

8 Ohm

Minimum Impedance

6.3 Ohm

AES Power Handling (1)

600 W

Maximum Power Handling (2)

1200 W

Sensitivity (1W/1m)

98 dB

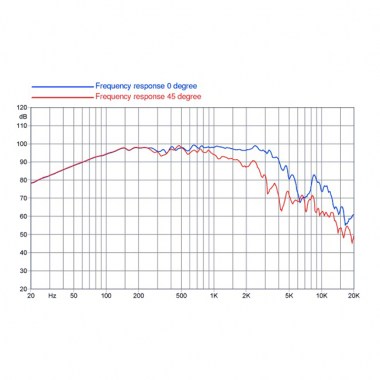

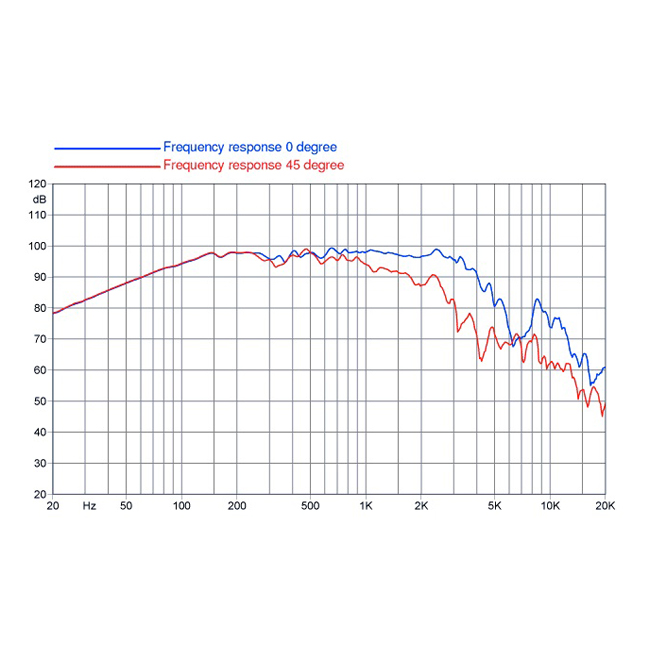

Frequency Range

50÷4000 Hz

Voice Coil Diameter

77 mm (3 in)

Winding Material

Al

Former Material

Glass Fiber

Winding Depth

18.5 mm (0.71 in)

Magnetic Gap Depth

12 mm (0.47 in)

Flux Density

1.1 T

Magnet

Neodymium Slug

Basket Material

Aluminum

Demodulation

Aluminum Ring

Cone Surround (3)

Triple Roll

NET Air Volume filled by Loudspeaker

2.4 dm^3 (0.085 ft^3)

Spider Profile

1x variable height waves

Fs

50 Hz

Re

5.1 Ohm

Qes

0.30

Qms

11.1

Qts

0.29

Vas

64.2 dm^3 (2.27 ft^3)

Sd

500 cm^2 (77.5 in^2)

Xmax (4)

7.25 mm

Xdamage (5)

19.5 mm

Mms

56.0 g

Bl

17.3 N/A

Le

0.74 mH

Mmd

49.7 g

Cms

0.18 mm/N

Rms

1.58 Kg/s

Eta Zero

2.60 %

EBP

167 Hz

Nominal Impedance

8 Ohm

Minimum Impedance

6.3 Ohm

AES Power Handling (1)

600 W

Sensitivity (1W/1m)

98 dB

Frequency Range

50÷4000 Hz

Flux Density

1.1 T

Magnet

Neodymium Slug

Demodulation

Aluminum Ring

Cone Surround (2)

Triple Roll

Fs

50 Hz

Re

5.1 Ohm

Qes

0.30

Qms

11.1

Qts

0.29

Vas

64.2 dm^3 (2.27 ft^3)

Sd

500 cm^2 (77.5 in^2)

Xmax (3)

7.25 mm

Xdamage (4)

19.5 mm

Mms

56.0 g

Bl

17.3 N/A

Le

0.74 mH

Mmd

49.7 g

Cms

0.18 mm/N

Rms

1.58 Kg/s

Eta Zero

2.60 %

EBP

167 Hz

Nominal Diameter

300 mm (12 in)

Overall Diameter

316 mm (12.44 in)

Bolt Circle Diameter

298.5 mm (11.75 in)

Baffle Cutout Diameter

284 mm (11.18 in)

Depth

155.75 mm (6.13 in)

Flange and Gasket Thickness

12.5 mm (0.49 in)

Net Weight

4.2 Kg (9.3 lb)
