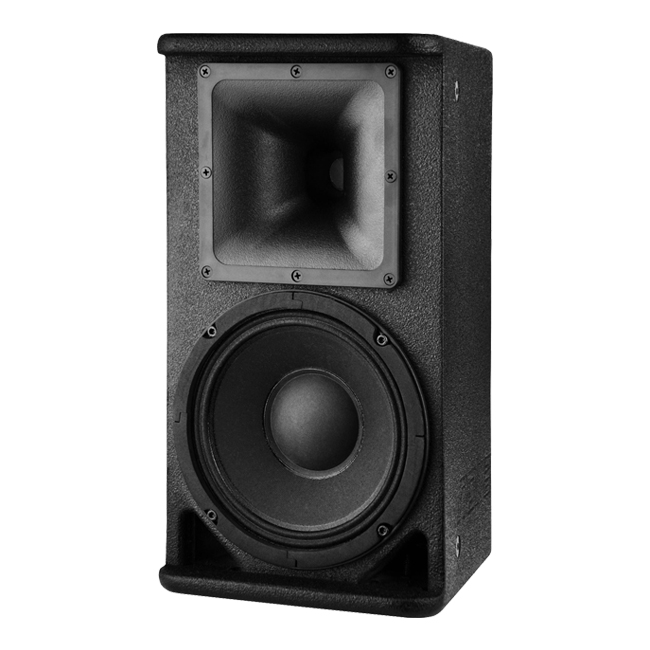

8”/2-way loudspeaker/150 W (RMS)

HF compression driver with 1.75” voice coil
Compact design
90° x 60° nominal coverage
Passive fullrange operation
Flange adapter (tube diameter 35 mm)
Ergonomic grip handles
Rotatable HF horn
5 screw-nuts (M8) for installation
Durable NOVA PolyCoat© finish

System Type: 8", two-way, bass-reflex, utility
Frequency Range (-10 dB): 70 Hz - 18 kHz
Frequency Response (±3 dB): 80 Hz - 17.5 kHz
Coverage Pattern: 90° x 60° nominal
HF Horn: Rotatable fibre glass horn
Crossover Modes: Passive
Crossover Frequency: 2.2 kHz

Power Rating
(Continuous** / Program): Passive: 150 W / 300 W
Maximum SPL***: 121 dB SPL peak
System Sensitivity (1w/1m): 97 dB SPL
LF Driver: 1 x NOVA 8/150VS
LF Nominal Impedance: 8 ohms (passive)
MF Driver: n/a
MF Nominal Impedance: n/a
HF Driver: 1 x NOVA T1001VS, 1.75 in. voice coil driver
HF Nominal Impedance: 8 ohms (passive)
Active Tunings: n/a (passive)
Enclosure: Fullrange, 15 mm, plywood (multi layer)

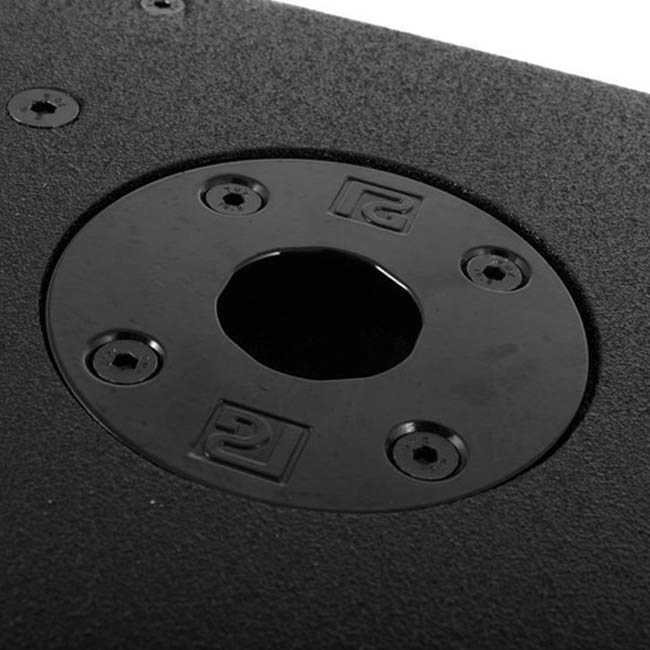

Suspension / Mounting: 35 mm pole socket, 5 x M8 mounting points
Transport: 1 x integrated handle
Finish: Black NOVA PolyCoat© finish
Grille: Powder coated, black, perforated steel with acoustic transparent charcoal foam backing, NOVA logo

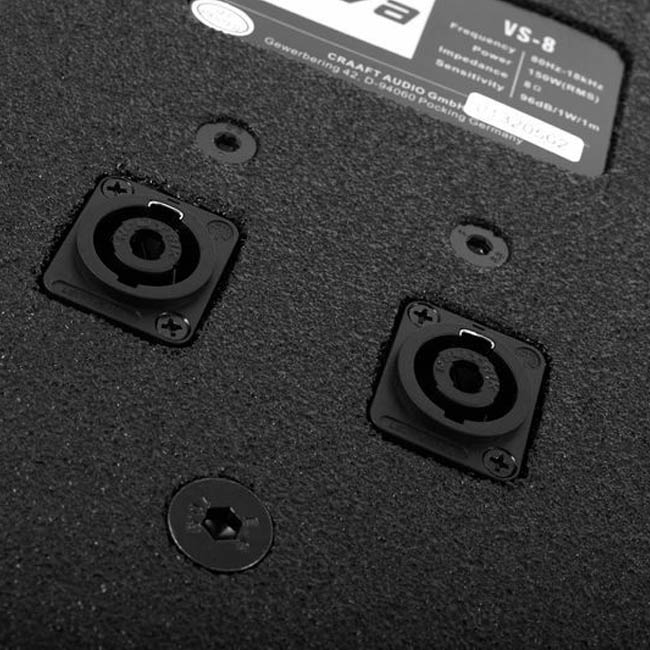

Input Connectors: 2 x Neutrik© Speakon© NL4, 1+/1- (2+/2- linked from input to output)
Dimensions (W x H x D): 230 mm x 420 mm x 230 mm
Net Weight: 8.5 kg
