Made in Germany

System Type: 2 x 12″, two-way, bass-reflex, utility
Frequency Range (-10 dB): 50 Hz – 20 kHz
Frequency Response (±3 dB): 60 Hz – 18 kHz
Coverage Pattern: 60° x 40° nominal
HF Horn: Rotatable fibre glass horn
Crossover Modes: Passive
Crossover Frequency: 1.6 kHz

Power Rating (Continuous** / Program / Peak):
Passive: 800 W / 1.600 W / 3.200 W
Bi-Amped LF: n/a (passive)
Bi-Amped MF: n/a (passive)
Bi-Amped HF: n/a (passive)

Maximum SPL: 134 dB SPL peak
System Sensitivity (1w/1m): 102 dB SPL

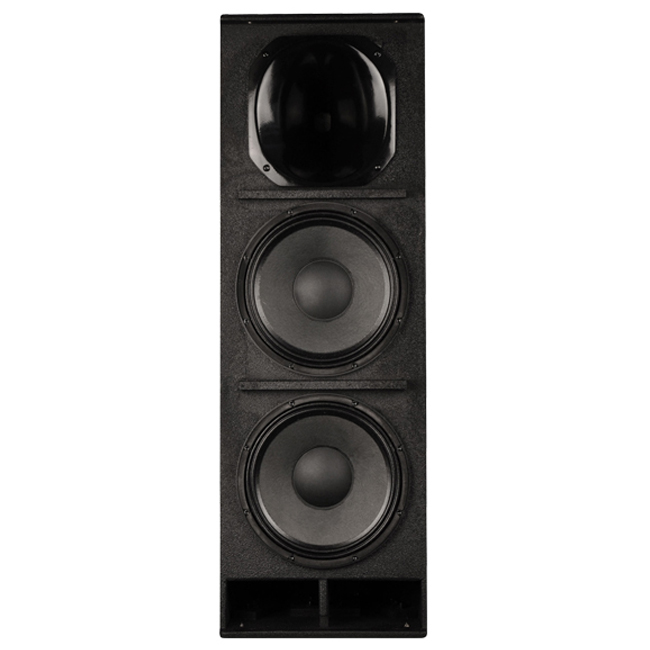

LF Driver
LF Nominal Impedance:
2 x NOVA 12/400VS
4 ohms (passive)

MF Driver: n/a
MF Nominal Impedance: n/a

HF Driver: 1 x NOVA T1501VS, 2.5 in. voice coil compression driver
HF Nominal Impedance: 4 ohms (passive)

Active Tunings: n/a (passive)
Enclosure: Fullrange, 15 mm, plywood (multi layer)

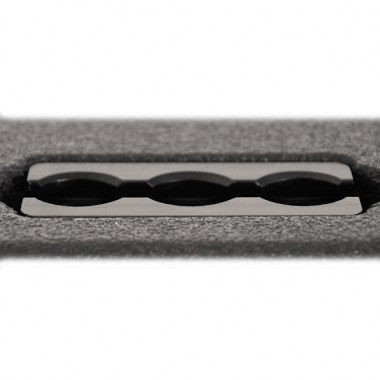

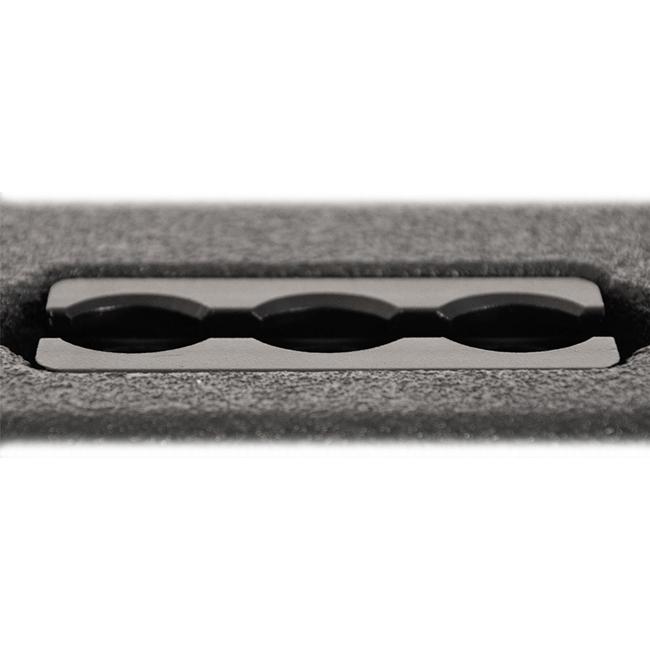

Suspension / Mounting: 35 mm pole socket, 6 x ANCRA (comp.) track for optional NFS3 mounting eyelet

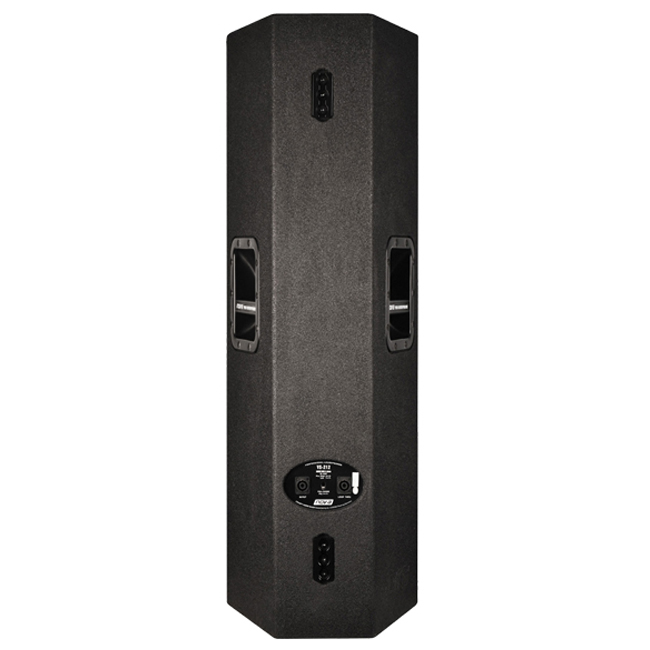

Transport: 2 x integrated handles
Finish: Black NOVA PolyCoat© finish

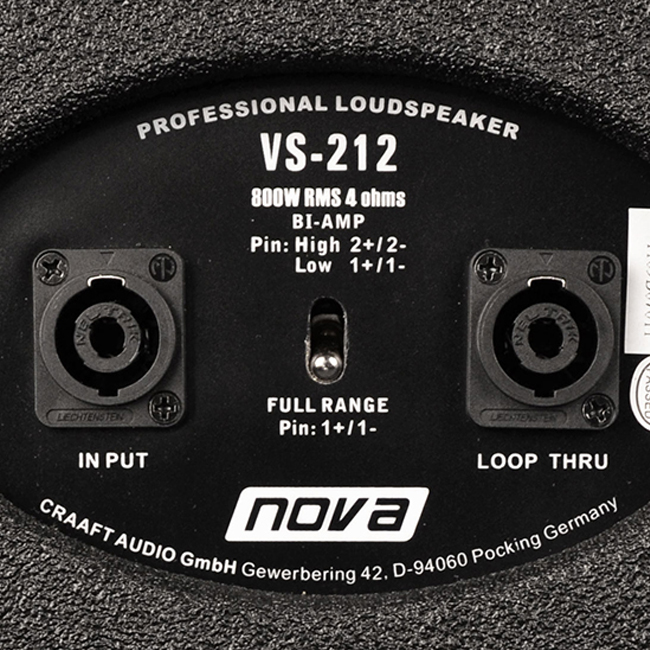

Input Connectors:
2 x Neutrik© Speakon© NL4
1+/1- (2+/2- linked from input to output)

Dimensions: 380 mm x 1.100 mm x 400 mm
Net Weight: 38 kg
