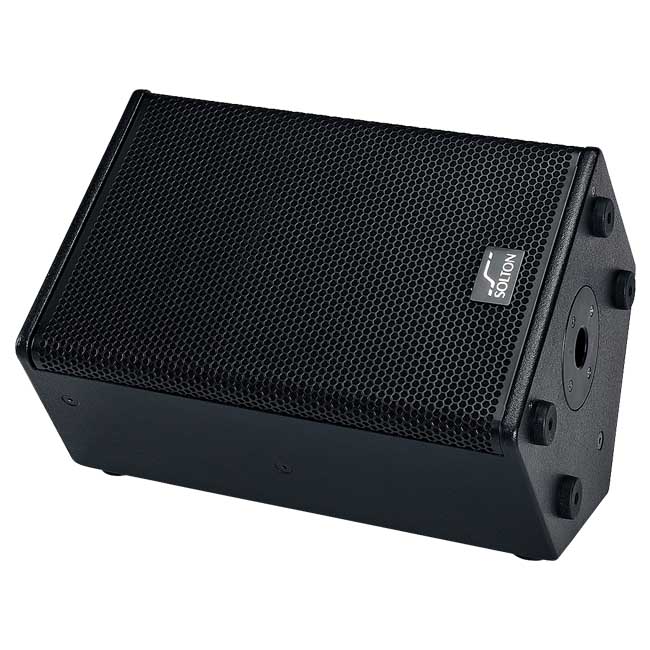

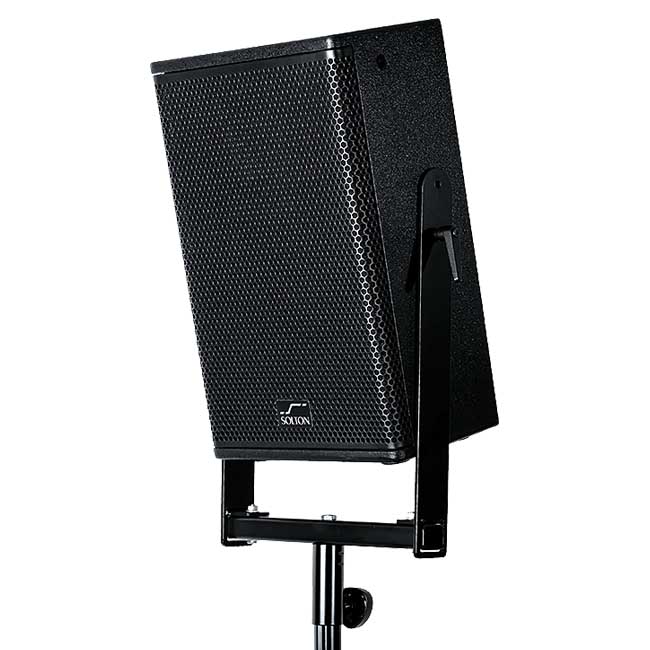

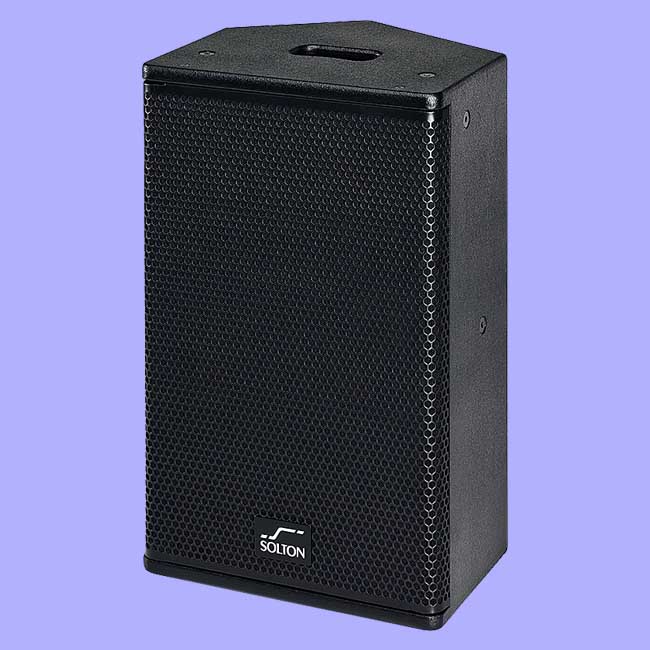

Pasivna zvučna kutija HD101 SOLTON

Proizvod je dostupan: Na stanju

653,00 KM
Količina

HD 101
The HD 101 is a two-way high-performance, multipurpose loudspeaker system designed for professional portable and installed applications. With a 90°H x 60°V coverage pattern it combines high output capability with excellent sound performance in a multiangle compact enclosure, made of 15 mm plywood.
It features a powerful 10”/2” (75mm) voice coil low frequency drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” voice coil for extended high frequency response. An advanced passive crossover, with PTC driver protection, matches the components working perfectly together and allows full-range application without additional electronics.
The versatile HD 101 suits for speech and music applications as a stand-alone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems.


KEY FEATURES
● Bullet point 1,75" voice couil , HF compression driver
● Bullet point Multi-angle compact design
● Bullet point User-rotatable, 90° x 60° horn
● Bullet point Passive fullrange operation
● Bullet point Vertical and horizontal orientation
● Bullet point Crossover with HF protection
● Bullet point Main and monitor operation possible
● Bullet point M8 inserts for flexible mounting options
● Bullet point Weight only 13 kg


SPECIFICATION
Loudspeaker Type: Two-way, Passive
Frequency Range (-10dB): 55 Hz - 20 kHz
Frequency Response (+- 3dB): 65 Hz - 18 kHz
Coverage Pattern: H 90° x V 60° nominal (user-rotatable)
Power Handling: 300 W continuous, 1200 W peak
System Sensitivity (1w/1m): 98 dB
Maximum SPL (Calculated at 1m): 123 dB continuous, 129 dB peak
HF Driver: 1,75" voice coil, 1" exit compression driver
LF Driver: 10", 2" voice coil speaker
Nominal Impedance: 8 ohms
Crossover: 2,7 kHz
Protection: PTC driver protection
Enclosure: Multi-angle, 15 mm birch plywood
Finish: Black textured paint
Fittings: 7x M8 inserts, 1x bar handle, pole-mount socket, U-bracket optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD): 320 x 518 x 293
Weight: 13 kg


APPLICATION
● Bullet point Portable sound reinforcement
● Bullet point Installation
● Bullet point Live Music
● Bullet point Bars and restaurants
● Bullet point Nightclubs
● Bullet point Stage monitoring
● Bullet point Corporate AV events and conferences
