Pasivna bass kutija VS215 SUB 15" NOVA

Proizvod je dostupan: Na stanju

With shipment Brza pošta for 0,00 KM
1800,90 KM

Dual 15” subwoofer with integrated crossover / 1.000 W (RMS)

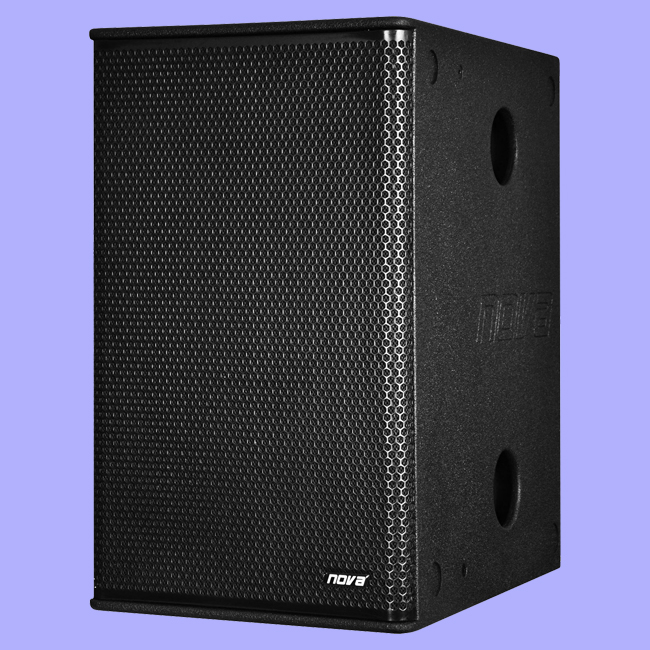

The VS215SUB is a subwoofer system in a rectangular chassis for fixed installations and mobile use.

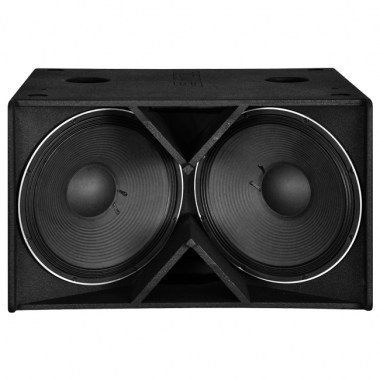

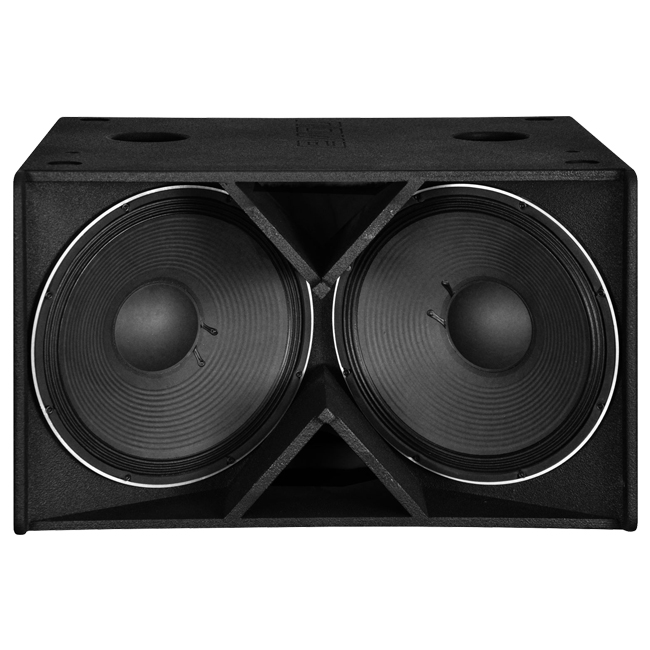

The cabinet is equipped with two high performance 15" speakers. The integrated tripod base (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system.
The flexible VS215SUB suits for speech and music applications as subwoofer speaker in sound reinforcement systems. The chassis is constructed from 15 mm plywood (birch) and covered with black NOVA PolyCoat© finish.
The cabinet is equipped with four grip handles and a front grill with transparent charcoal foam backing.

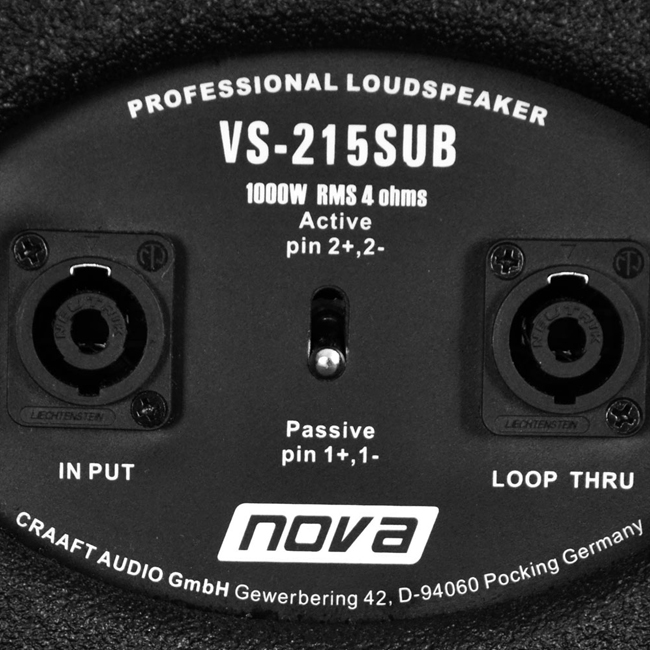

Two speakon connectors (NL4) are mounted at the rear side of the chassis for signal input (input), signal link (link) and signal output (output) to a satellite speaker if using the integrated passive crossover.
The power rating of the VS215SUB is 1.000 W (RMS), the impedance is 4 ohms.

► 2 x 15” high-performance speaker
► Compact design
► Integrated crossover (switch active / passive)
► Passive subwoofer operation
► Tripod base (M20)
► Ergonomic grip handles
► Prepared for 100 mm blue wheels (option)
► Durable NOVA PolyCoat© finish

System Type: 2 x 15", bass-reflex, subwoofer
Frequency Range (-10 dB): 35 Hz - 200 Hz
Frequency Response (±3 dB): 40 Hz - 180 Hz
Coverage Pattern: Omni
HF Horn: n/a
Crossover Modes: Passive / active (switchable)
Crossover Frequency: 120 Hz
Power Rating
(Continuous** / Program): Passive: 1.000 W / 2.000 W
Maximum SPL***: 132 dB SPL peak
System Sensitivity (1w/1m): 99 dB SPL
LF Driver: 2 x NOVA 15/500VS
LF Nominal Impedance: 4 ohms (passive)
MF Driver: n/a
MF Nominal Impedance: n/a
HF Driver: n/a
HF Nominal Impedance: n/a
Active Tunings: 120 Hz (integrated crossover)
Enclosure: Subwoofer, 15 mm, plywood (multi layer)
Suspension / Mounting: 2 x M20 pole socket, 6 x ANCRA (comp.) track
Transport: 4 x integrated handles
Finish: Black NOVA PolyCoat© finish
Grille: Powder coated, black, perforated steel with acoustic transparent charcoal foam backing, NOVA logo
Input Connectors: 2 x Neutrik© Speakon© NL4, passive mode: 1+/1-, active mode: 2+/2- (1+/1- linked from input to output)
Dimensions (W x H x D): 450 mm x 740 mm x 580 mm
Net Weight: 45 kg
