HD 181 SUB

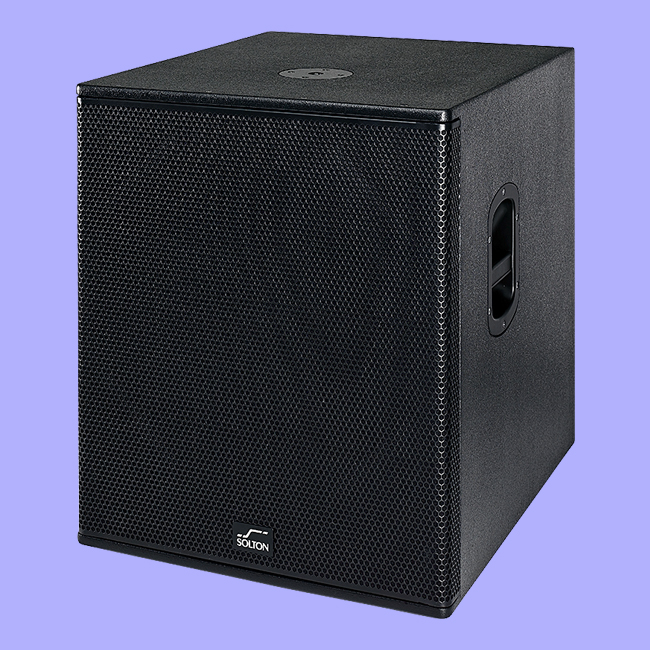

The Solton HD 181 Sub is a single 18" direct-radiating high performance subwoofer system.
It has been designed to add high-output, high-impact bass response to the mid-high and fullrange loudspeaker system in various mobile and installed applications.
The HD 181 Sub features a long-excursion, 18” ,4” (100mm) voice coil LF transducer, and a low distortion port design in a compact reflex enclosure made of 15 mm plywood.
The integrated pole mount socket (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system.
Two speakon connectors (NL4) are mounted at the rear side of the enclosure for signal input (input) and signal link (PARALLEL).

KEY FEATURES
• 1 x 18” ,4” (100mm) voice coil LF Transducer
• 135 dB Peak SPL
• Passive subwoofer operation
• Compact design
• Pole mount socket (M20)
• Two Integrated Handles for Easy Portability
• Prepared for 100mm blue wheels

SPECIFICATION
• Loudspeaker Type: Single18", bass-reflex, subwoofer
• Frequency Range (-10dB): 33 Hz – 250 Hz
• Frequency Response (+- 3dB): 38 Hz – 140 Hz
• Coverage Pattern: Omni
• Power Handling: 800 W continuous, 3200 W peak
• System Sensitivity (1w/1m): 100 dB
• Maximum SPL (Calculated at 1m): 129 dB continuous, 135 dB peak
• LF Driver: 18", 4" voice coil speaker
• Nominal Impedance: 8 ohms
• Crossover: Active by DSP
• Enclosure: 15 mm birch plywood
• Finish: Black textured paint
• Fittings: 2x Handles, M20 pole socket
• Protective Grille: Black perforated steel with acoustic transparent foam backing
• Connectors: 2x NL4, Pins 1+/1-
• Dimensions mm (WxHxD): 600 x 660 x 640
• Weight: 43 kg

APPLICATION
• Portable sound reinforcement
• Installation
• Live Music
• Bars and restaurants
• Nightclubs
