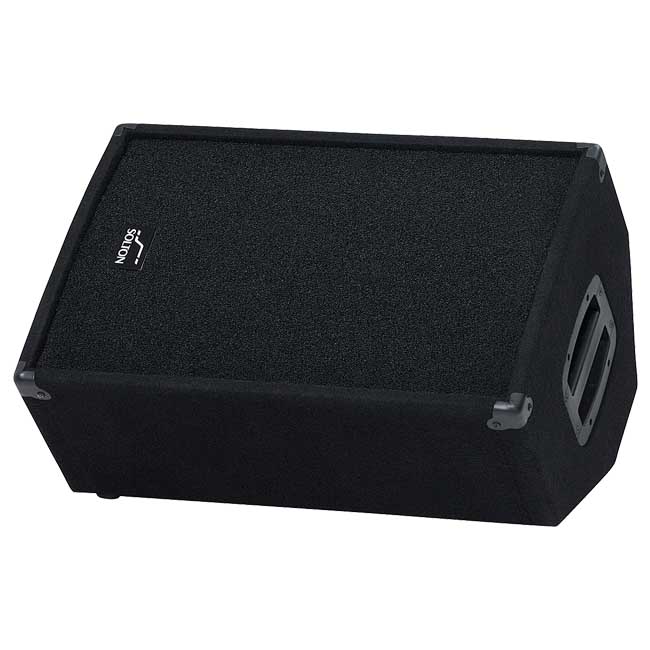

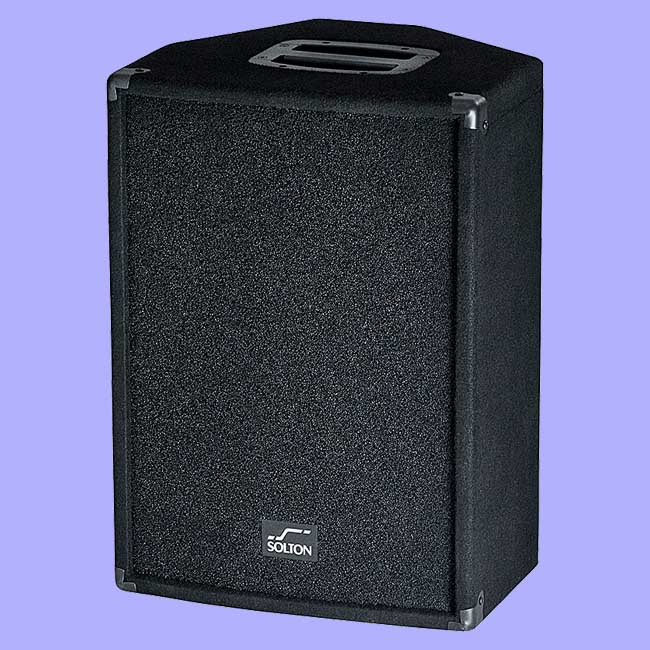

MF 200 A
The MF 200 A is a self powered two-way system with integrated mixer, designed for professional portable applications and installations, demanding the excellence in sound performance and flexibility from a single enclosure.
With a 60°H x 40°V coverage pattern it combines high output capability with excellent sound performance. It features a powerful 12” low frequency drive unit, and a 1” (25mm) exit HF compression driver for extended high frequency response. The integrated amplifier with mixer delivers outstanding dynamic and excellent headroom
The versatile MF 200 A suits for speech and music applications as a stand-alone fullrange loudspeaker, stage monitor or MF/HF speaker in sound reinforcement systems. Expandable via MF 200.

KEY FEATURES
● High SPL with smooth response
● Multi-angle, self-powered compact design
● Constant directivity 60° x 40° horn
● Integrated mixer
● PTC driver protection
● Vertical and horizontal orientation
● FOH and monitor operation possible
● Expandable PA system
● Handle and pole-mount socket available

SPECIFICATION
Loudspeaker Type: Self-powered, two-way, multifunctional
Frequency Range (-10dB): 50 Hz - 20 kHz
Frequency Response (+- 3dB): 55 Hz - 18 kHz
Coverage Pattern: H 60° x V 40° nominal
Power Handling: 200 W continuous , 800 W peak
System Sensitivity (1w/1m): 97 dB
Maximum SPL (Calculated at 1m): 120 dB continuous, 126 dB peak
HF Driver: 1" compression driver
LF Driver: 12" woofer
Nominal Impedance: 8 ohms
Crossover: 2,7 kHz
Protection: PTC driver protection
Active Tuning / Features: Mic Level, Line Level, Master, Instrumental Level, Bass & Treble, Switch for LowCut 120 Hz
Enclosure: Multi-angle
Finish: Black carpet
Fittings: 1x bar handle, pole-mount socket
Protective Grille: Black perforated steel with acoustic transparent foam backing

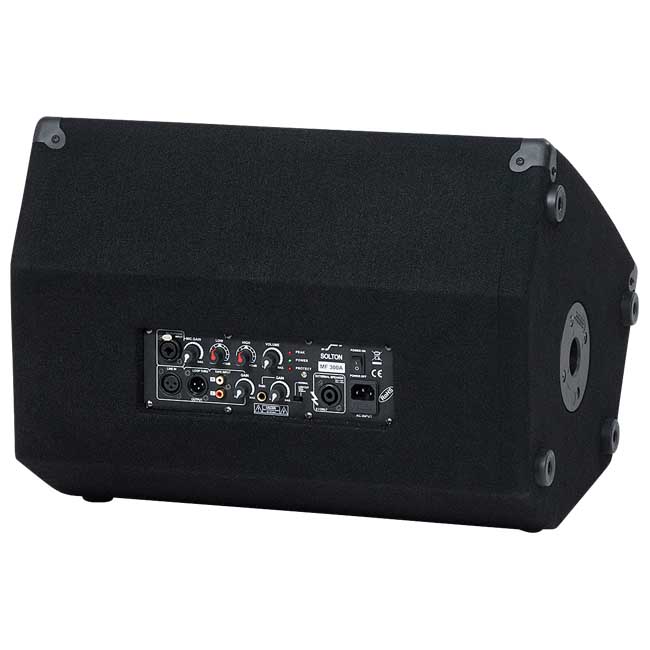

Connectors: Jack / XLR Mic, XLR / Cinch Line, XLR Out, Jack Instruments, Output for 8 Ohm passive speaker cabinet
Dimensions mm (WxHxD): 390 x 540 x 350
Weight: 17.2 kg

APPLICATION
● Bullet point Portable sound reinforcement
● Bullet point Live Music
● Bullet point Bars and restaurants
● Bullet point Nightclubs
● Bullet point Stage monitoring
● Bullet point Corporate AV events and conferences
