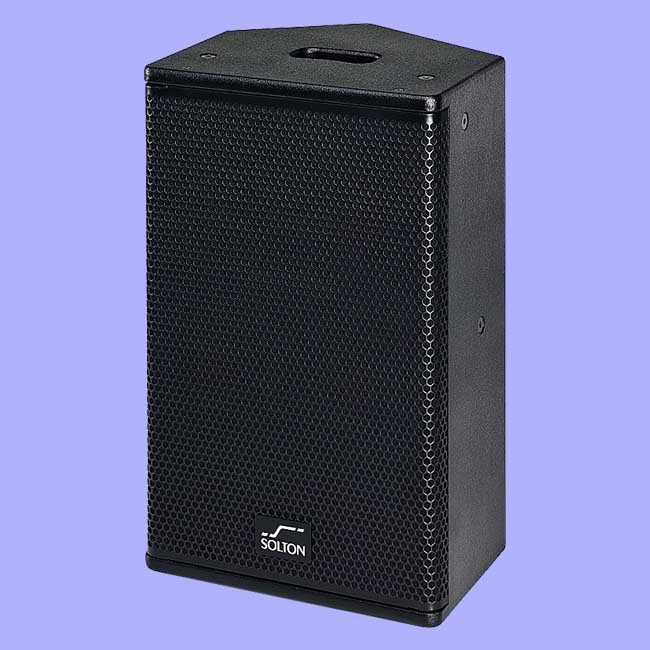

AART T 12 A
The aart T 12 A is a self powered, bi-amped 2-Way high-performance multipurpose loudspeaker system, designed for professional portable applications and installations, demanding the ultimate in sound performance from a single enclosure.
With a 90°H x 60°V coverage pattern it combines very high output capability with excellent sound performance and impact. It features a powerful 12”/3” (75mm) voice coil low frequency drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” voice coil for extended high frequency response. The integrated high performance Class D 2-channel amplifier, with integrated 2-channel DSP, delivers outstanding dynamic and excellent headroom. The 4 DSP presets and clearly arranged Input - Output section enable high application flexibility.
The versatile aart T 12 A suits for speech and music applications as a stand-alone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems.

KEY FEATURES
● High-class performance in a compact design
● Class D bi-amped power module
● User-rotatable, constant directivity 90° x 60° horn
● Vertical and horizontal orientation
● 4 DSP presets
● Dual-band limiter

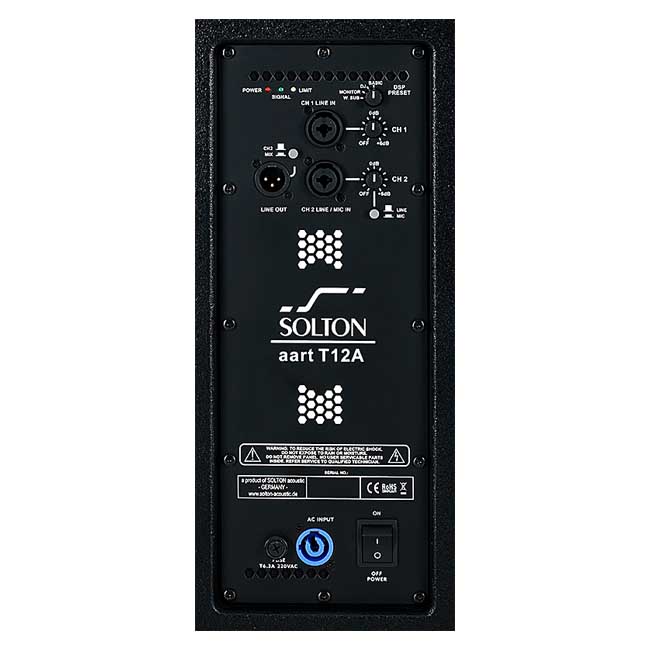

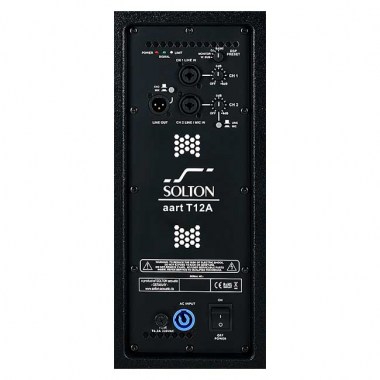

● Two inputs with level control, XLR/6.3 Jack Combo ,one with MIC/LINE switch and with high-resolution microphone pre-amplifiers (in MIC mode)
● Line/Mix OUT switchable

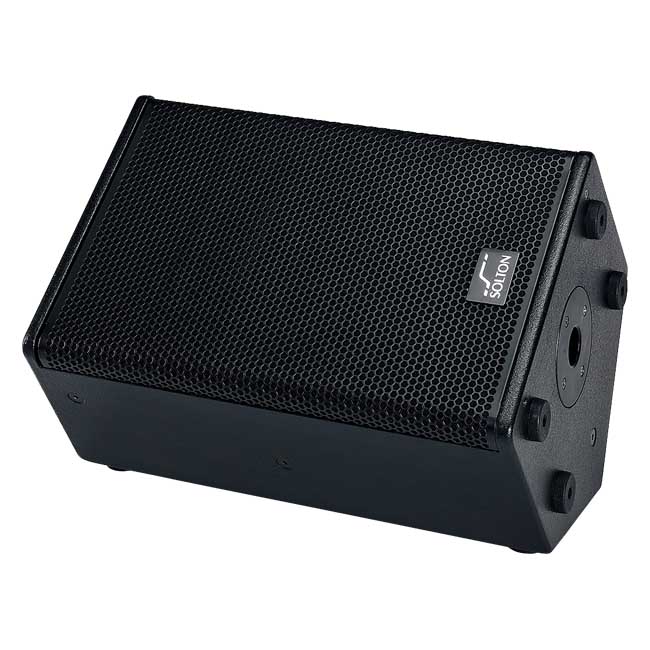

● Main and monitor operation possible
● M8 inserts for flexible mounting options
● Weight only 16 kg

SPECIFICATION
Loudspeaker Type: Self-powered, two-way bi-amped, multifunctional
Frequency Range (-10dB): 50 Hz - 20 kHz
Frequency Response (+- 3dB): 55 Hz - 18 kHz
Coverage Pattern: H 90° x V 60° nominal (user-rotatable)
Power Handling: 500 W continuous, 2000 W peak
System Sensitivity (1w/1m): 98 dB
Maximum SPL (Calculated at 1m): 125 dB continuous, 131 dB peak
HF Driver: 1,75"voice coil, 1" exit compression driver
LF Driver. 12", 3" voice coil neodym speaker
Crossover: Active / DSP
Protection: Dual-band limiter
Active Tuning / Features: 4 DSP presets,2 x Line/Mic IN level & switch, Line/Mix OUT switchable
Enclosure: Multi-angle, 15 mm birch plywood
Finish: Black textured paint
Fittings: 7x M8 inserts,1x bar handle, pole socket, U-bracket optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2x XLR / 6.35 Jack Combo, 1x XLR
Dimensions mm (WxHxD): 380 x 585 x 350
Weight: 16 kg

APPLICATION
● Bullet point Portable sound reinforcement
● Bullet point Installation
● Bullet point Live Music
● Bullet point Bars and restaurants
● Bullet point Nightclubs
● Bullet point Stage monitoring
● Bullet point Corporate AV events and conferences
