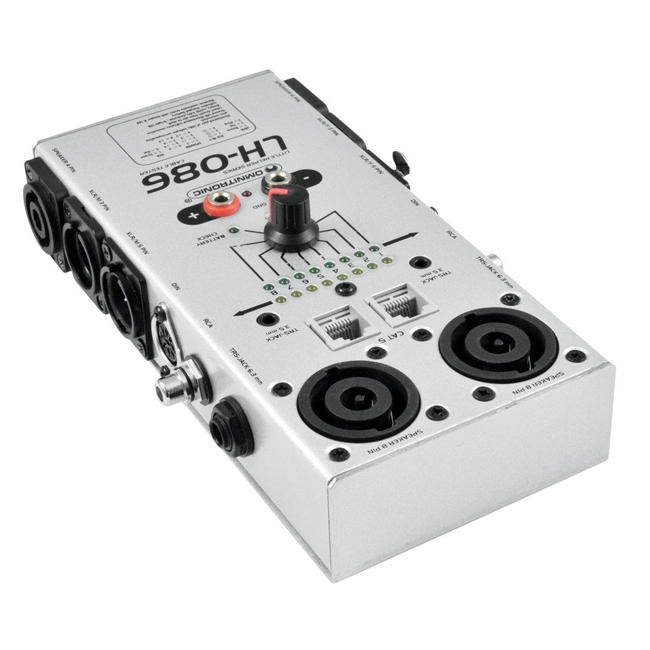

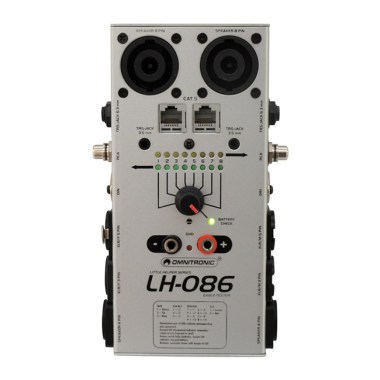

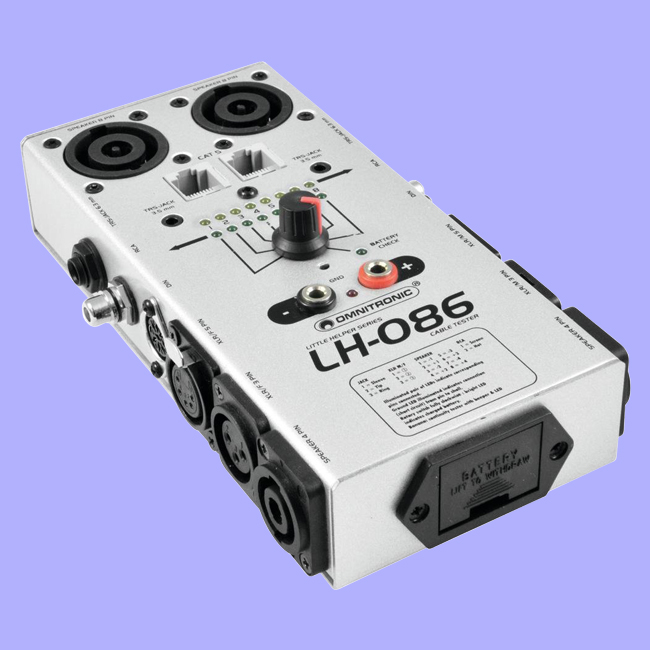

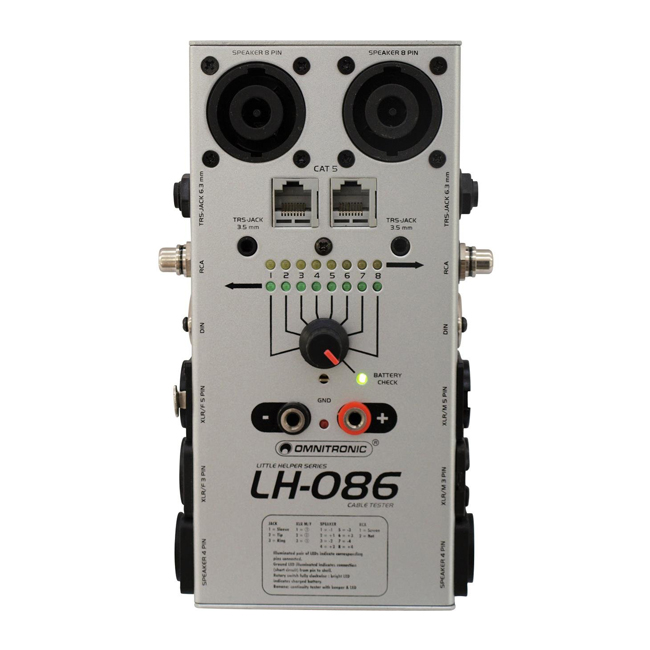

OMNITRONIC LH-086 Cable Tester

The OMNITRONIC LH-086 controls the function of 3 and 5-pin XLR-, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4 and 8-pin speaker cables and connections.
A polarity and short-circuit display enables an easy control. Testing the continuity via two banana sockets is possible as well.

Cable tester for XLR, jack, CAT5, DIN, RCA, Speaker
• Ideal cable test for all cable connections in the studio and for live applications
• Tests 3+5-pin XLR, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4+8-pin Speaker cables and connections
• Polarity and short-circuit display
• Comfortable selection via rotary switch

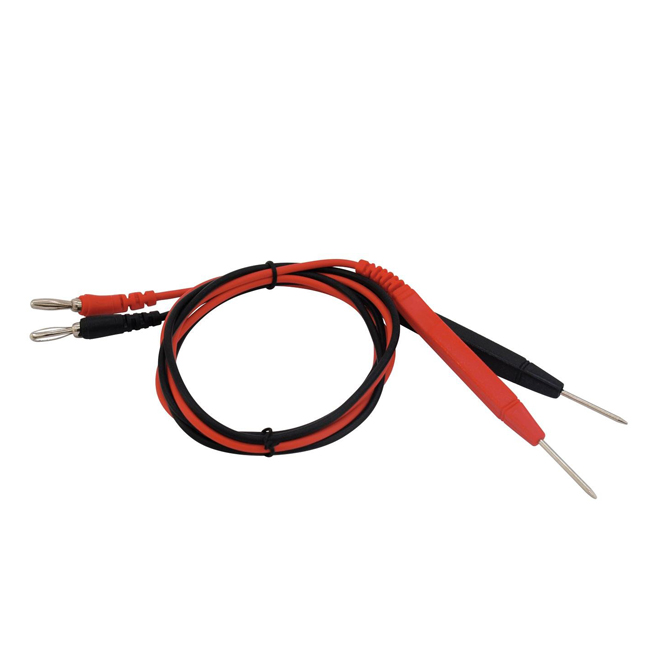

• Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
• Indispensable helper for musicians, sound and stage technicians

TECHNICAL SPECIFICATIONS
Power connection: Battery/battery pack
Battery: 1 x 9.0 V E block 6LR61 alkaline manganese included

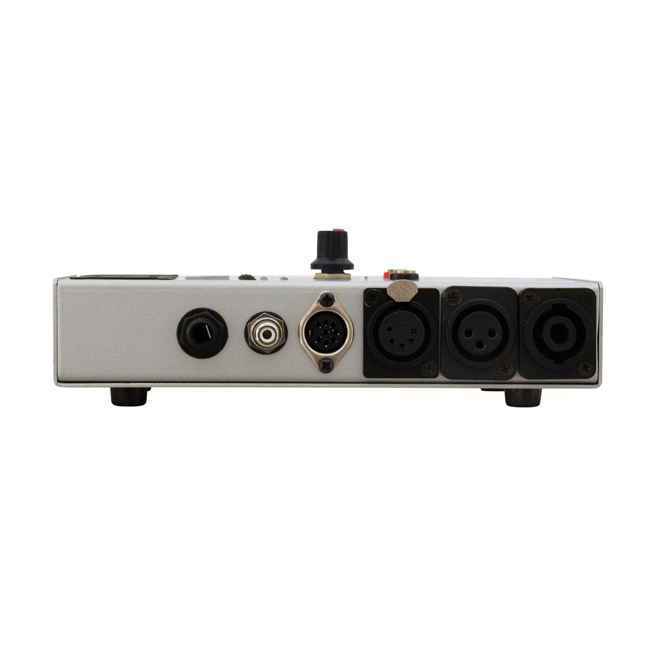

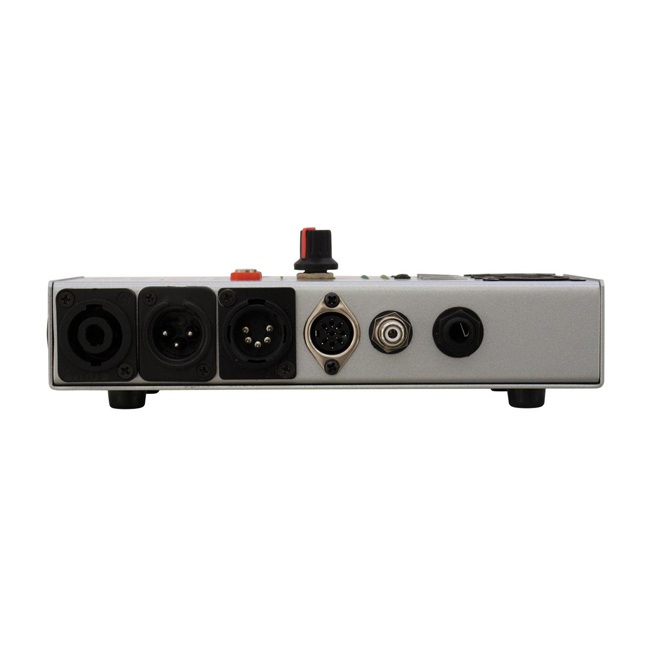

Connections:
RJ-45 (F) mounting version
3.5 mm jack (stereo) mounting version
RCA (F) mounting version
3-pin XLR
5-pin XLR
Speaker built-in socket (F)
6.3 mm jack socket (stereo) mounting version
5-pin DIN (F) mounting version
Dimensions:Width: 11,2 cm; Depth: 19 cm; Height: 6 cm
Weight: 900 g
