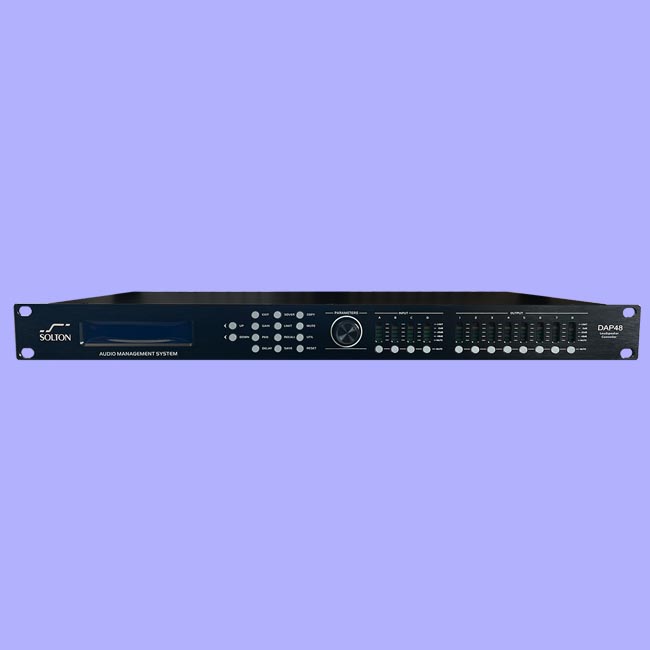

DAP 48
The excellent DSP decoder and 48 bit interior data channel and 96 KHz sampling rate which is especial for wide dynamic extension and purity sound quality.
High sampling rate, low spoilage and dynamic extension. Many opportunities and agility crossover modes, 4 way input and 8 way output with limiter, mute button and 180 phase inverter.
Each input channel is with 8 equalizer view (PEQ), each output will be with 8 PEQ.
Different filters like Butterworth, Bessel and Linkwitz-Riley for the best sound performance.
Internal memory for 30 presets to save. Connection is possible with USB and RS 485.

Specification
• Connection: USB or RS 485
• Sampling Rate: 96 kHz / 48 bit DSP
• Dynamic Range: > 110 dB
• Maximun Input Level: +20 dBu
• Maximun Output Level: +20 dBu
• Operational Frequency Range: 20 Hz - 20 kHz (-0.5 dB)
• Display: 20 character blue crystal
• Memory: 30 presets on hardware unit
• Filters: Butterworth, Bessel, Linkwitz-Riley, HS & LS
• Octave Range: 12,18, 24 and 48 db /Octave
• Equalizer: 8 band fully parametric (frequency, Q and gain) on each output and input
• Each Output: 180 phase inverter and mute button, limiter available for safety
• Input Impedance: Balance 18 K Ohm
• Output Impedance: Balance 112 Ohm
• PC Interface: USB A / RS 485 / Ethernet Interface
• Features: Lock Function
• Software: Windows

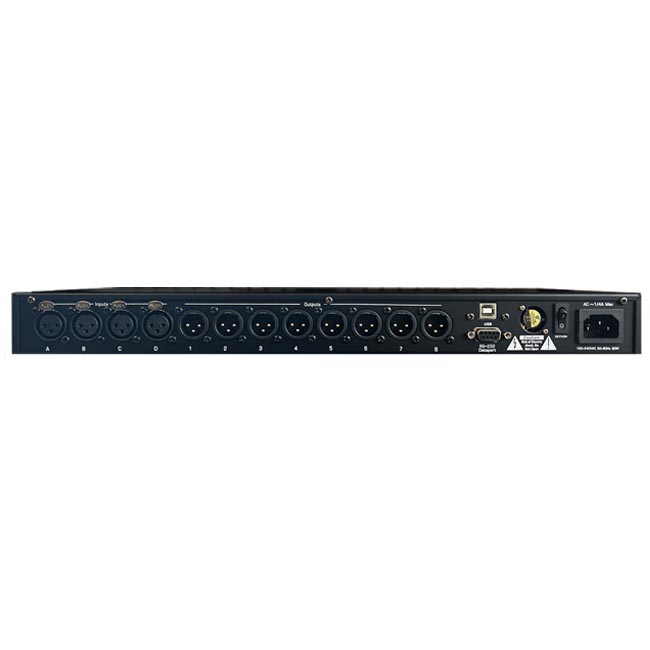

• Audio input connectors: 4x XLR female
• Audio output connectors: 8x XLR male
• Power Supply: 220V AC 50Hz ± 10%
• Dimensions mm (WxHxD): 483 x 44 (1U) x 254
• Weight: 2.7 kg
