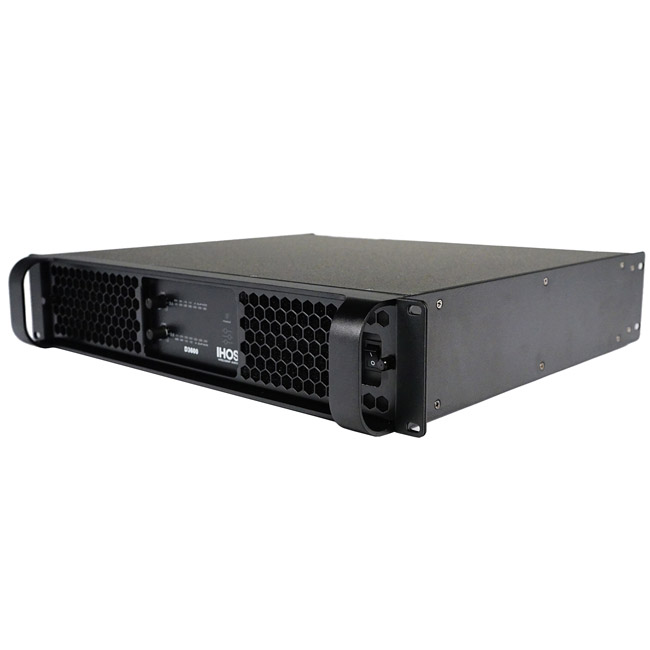

D class high performance 2 channels amplifier, 2 x1800 w/8ohms , 2 x 3600w/4 ohms, XLR input, speakon output, led VU meter, temperature control fans, frequency responce 20Hz - 34Kz,adjustable VPL, 10kg.
Technical Specifications
8 ohms stereo power: 2x 1800 W.
4 ohms stereo power: 2x 3600 W.
Input connetor: XLR female
Input impedance: 20k ohms balanced
Input Sensitivity: 0.77V 1.44V
Input CMRR: >80dB
Output connector: Speakon
Hum&Noise: >112dB
Damping Factor: >1000 @ 8 ohms
THD: <0.1% (20Hz-20kHz 1W)
Frequency Response: 20Hz-34KHz,(+0/-0.3dB, 1W/8ohms)
Level control: front level meter, from negative infinity to 0dB
Cooling: variable speed fans, front to rear airflow
Power Requirement: AC voltage 180-240V 50-60Hz
Amplifier dimensions: 88mmX488mmX438mm
Packing dimensions: 150mmX600mmX550mm
Net weight: 12 Kg.
Gross weight: 15.1 kg
⬆
