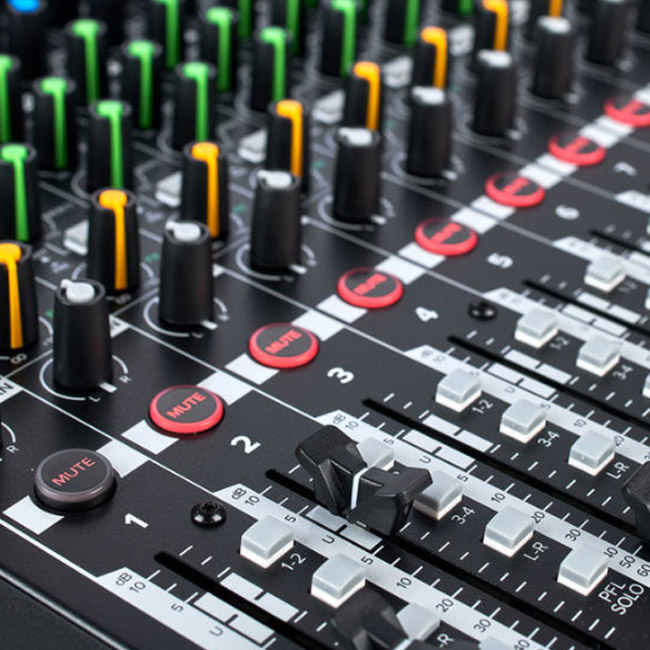

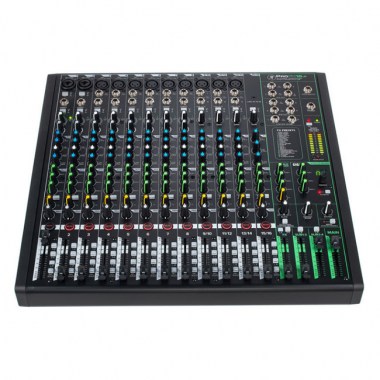

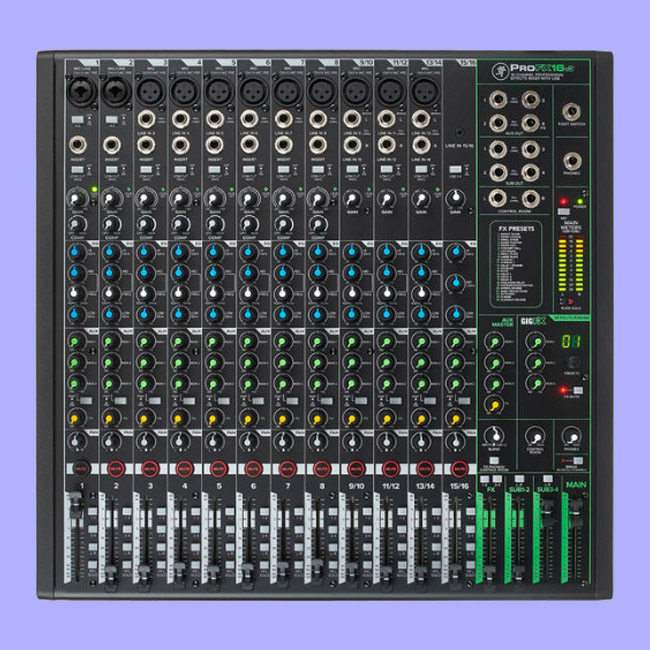

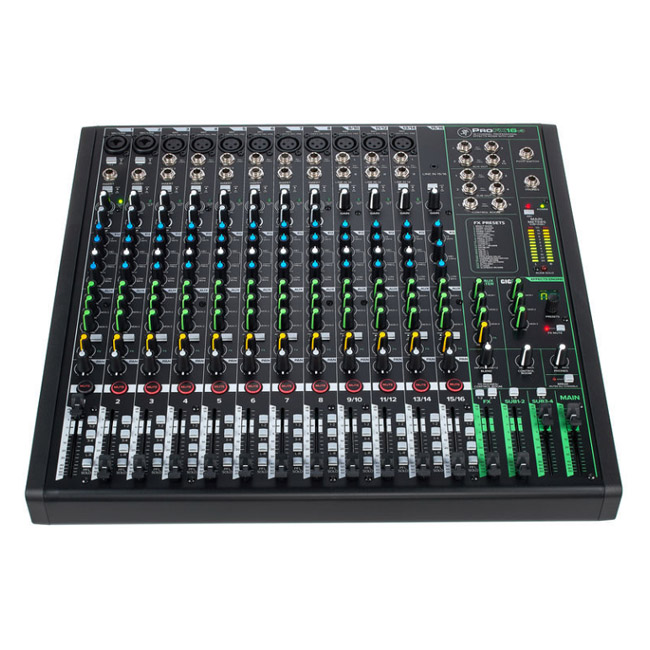

16-Channel Mixer

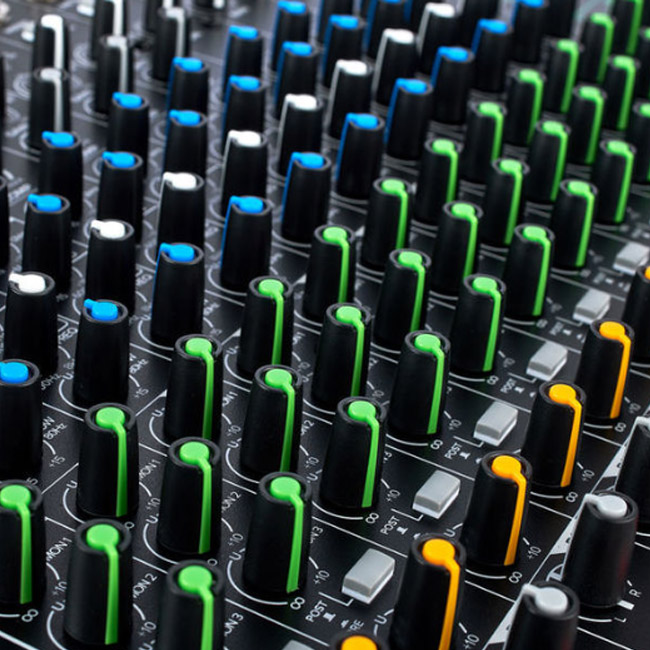

• 11 Microphone inputs with 3-band EQ on all channels with variable midrange frequency control (channel 15/16 has a standard 3-band EQ)
• 8 Inserts and 8 one-button compressors
• Channels 9-14 have microphone inputs and stereo line inputs
• 1x 3.5 mm stereo jack line input
• 2x4 USB interface

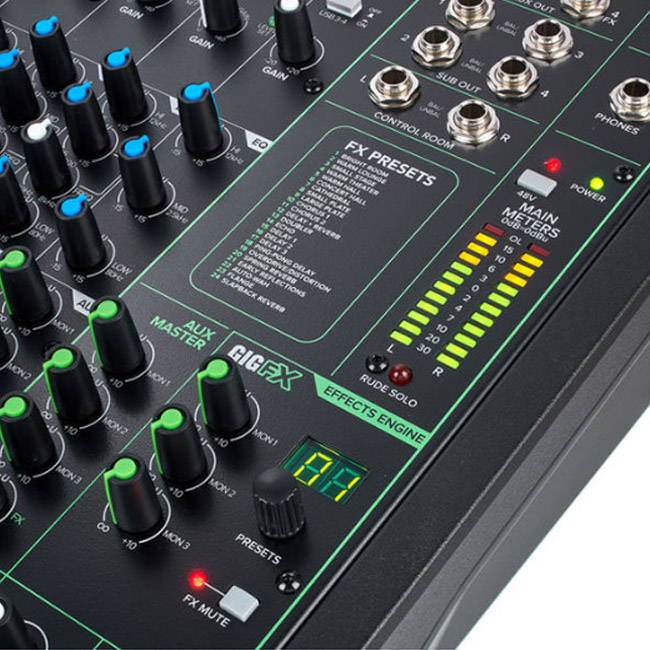

• Built-in GigFX effects device with 24 effects
• 100 Hz low cut filter
• 2 Hi-Z switches
• 48 V phantom power

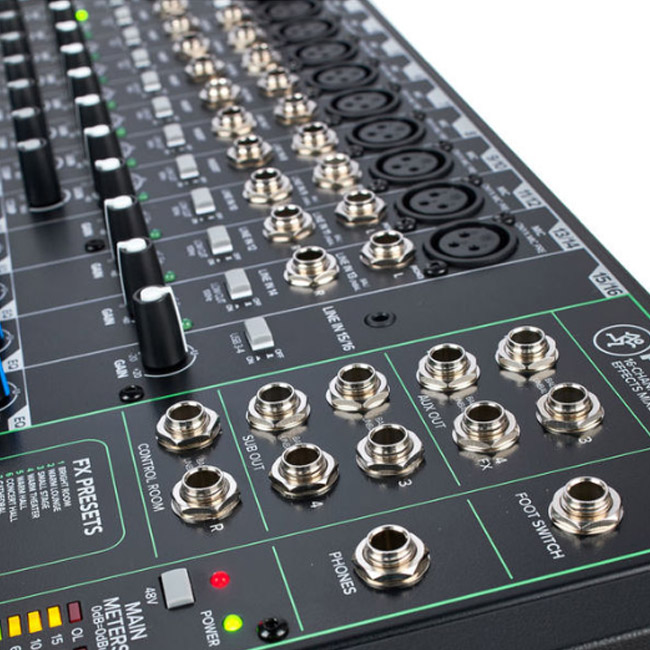

• Headphone connector
• 3 AUX / monitor outputs with dedicated Sends on each channel
• 2 Stereo subgroups with assignment per channel
• Foot pedal connector

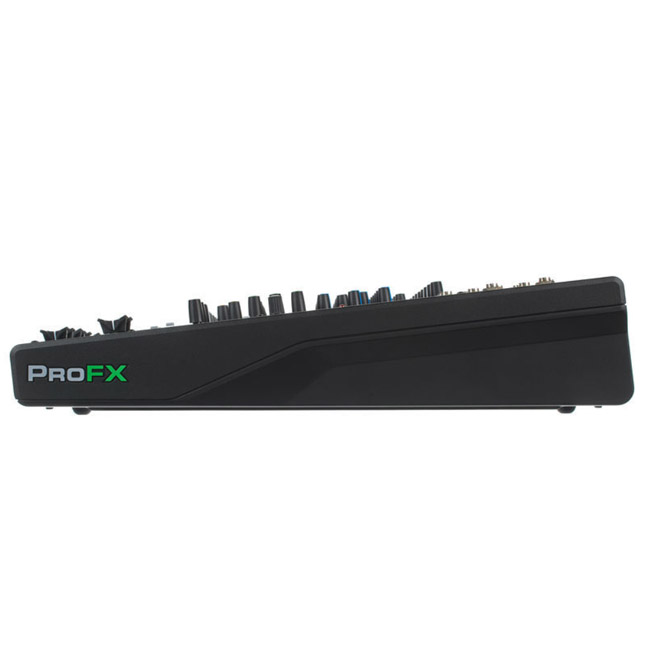

• Dimensions (H x W x D): 112 × 450 × 434 mm
• Weight: 6.9 kg

Includes ProTools | First and Waveform:
• With extensive plugin bundles for professional recordings
• The Musician Collection for ProTools | First includes - exclusively for Mackie - 23 plugins such as BBD Delay, the legendary 304 Bundle and Eleven Lite
• The DAW Essentials Bundle for Waveform OEM contains 16 powerful plugins such as Equalizer, Compressor, Reverber8 and Limiter

Parallel usable Channels: 12
Mic Ins: 11
Stereo Ins: 4

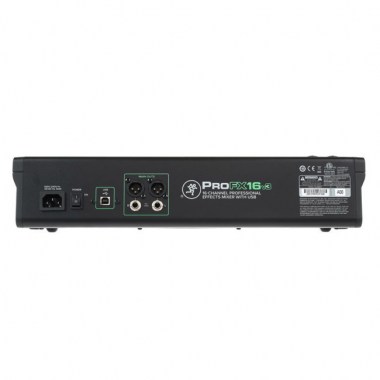

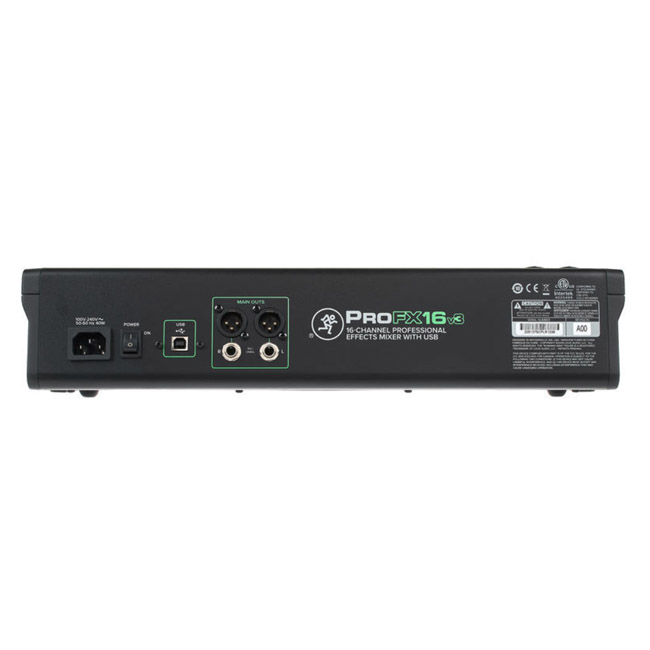

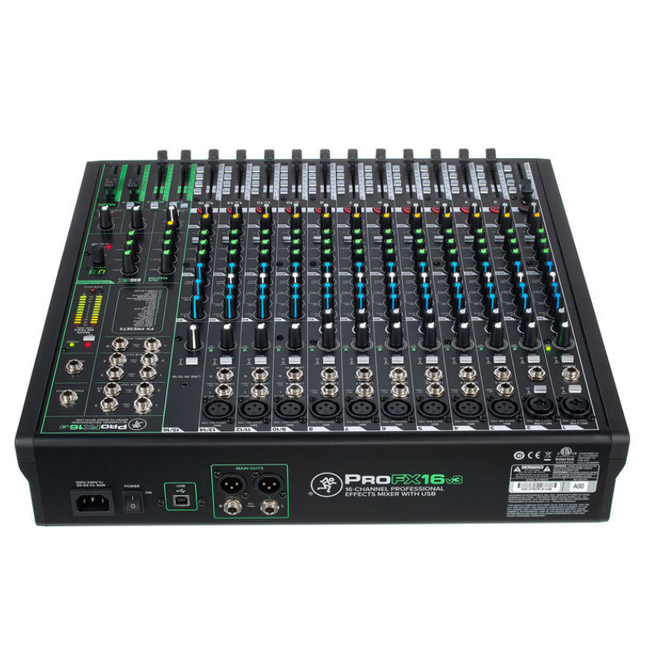

Master Out: XLR
Number of Pre Aux max.: 3

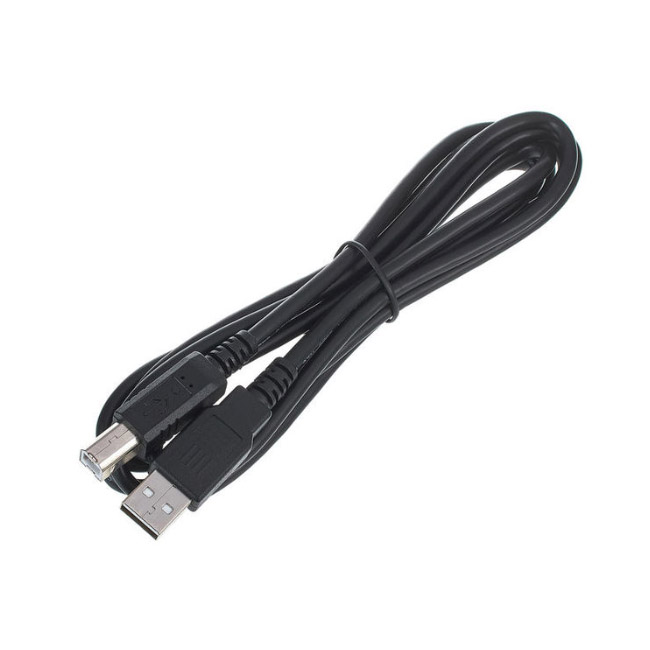

PC Interface: USB-B
Multitrack Recording : No
PFL: Yes
Effect Processor: 1
USB Play: No
Bluetooth Play: No
Matrix Mixer: No
Zones: 0
19" Rackmount: Optional
