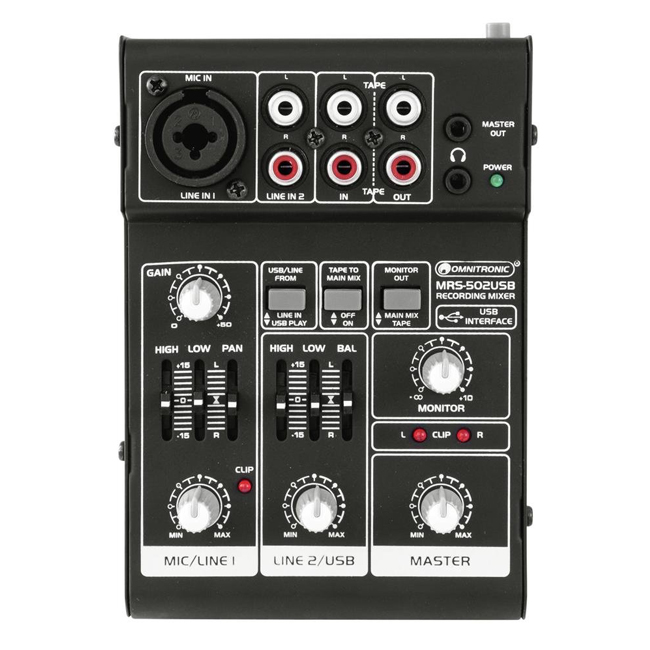

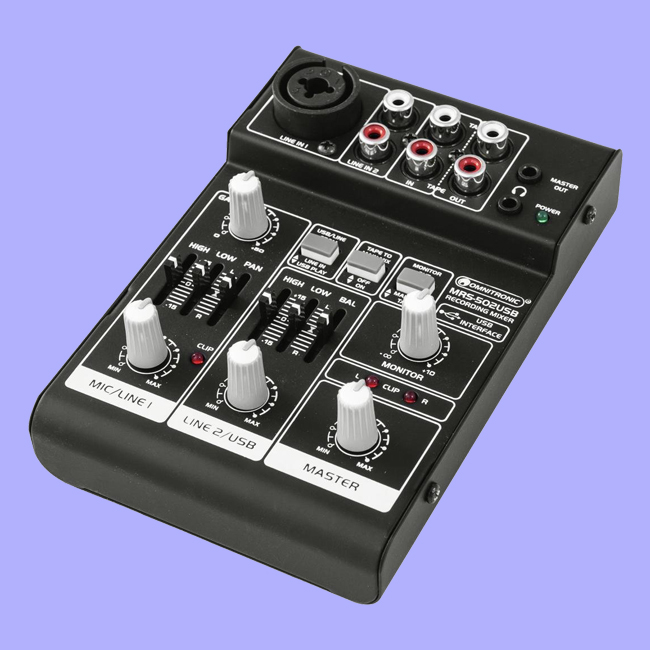

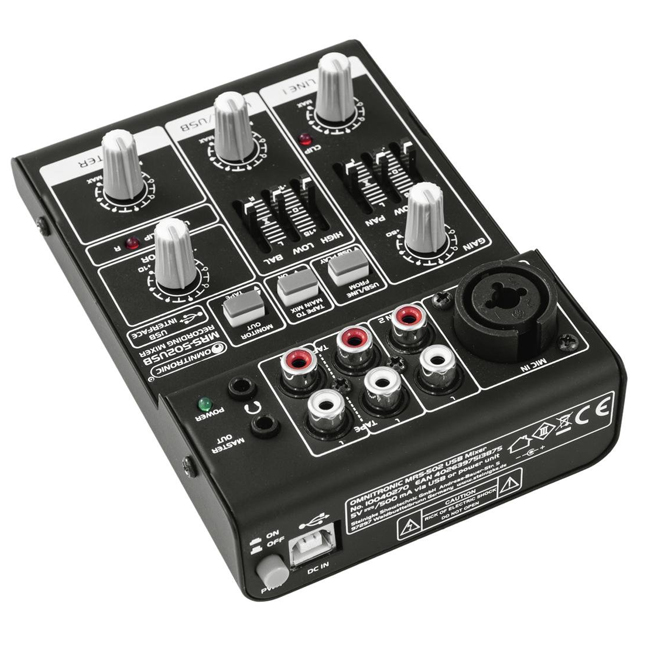

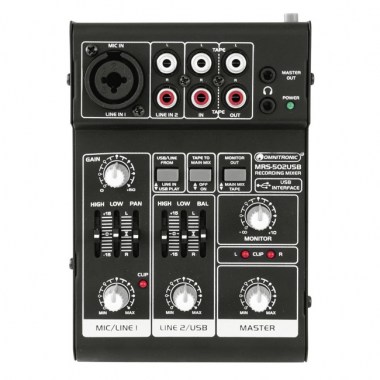

Miniature audio mixer with USB interface

• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• Full duplex USB port: simultaneous recording and playback possible
• 1 mono input channel with gain control, 2-band EQ and pan control, clip LED
• 1 stereo input channel with level control, 2-band EQ and balance control
• Tape input and output
• 3.5 mm stereo master output
• Adjustable headphones output
• +20 V phantom power, permanent
• Clip LED L/R

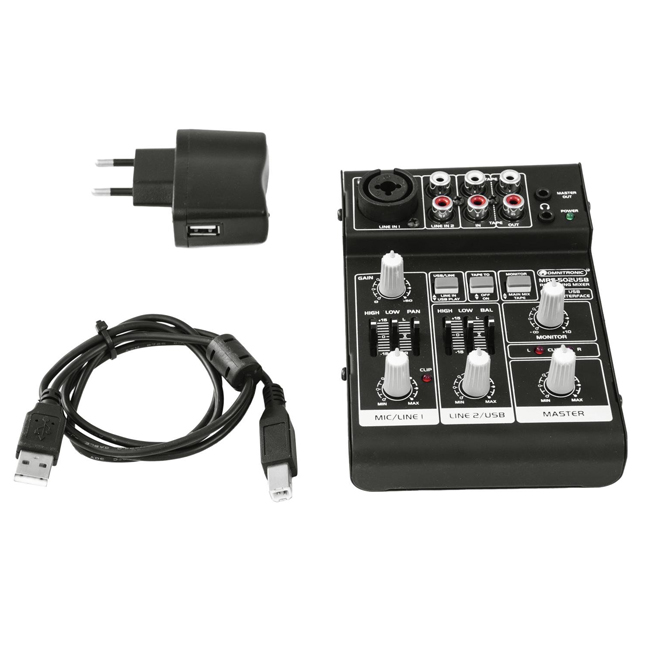

• Operation via supplied power unit or USB port
• Rugged, compact metal housing
Mixer
• Desktop console housing

Power consumption: 2.50 W
Frequency range: 20 - 20000 Hz
S/N ratio: >81 dB
THD: Phantom power: 20 V DC
Control elements: Power switch, source selector
Status LED: Clip, power

Connections:
Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x line via stereo RCA 0.15 V
Input: 1 x line via stereo RCA 0.42 V
Output: 1 x line via stereo RCA 2 V
Output: 1 x line via 3.5 mm jack (stereo) mounting version 6 V
Output: 1 x headphones via 3.5 mm jack (stereo) mounting version 2 V

Chanals:
Microphon chanal: 1 x mono via XLR or jack, channel control via Rotary dial, 2-band tone control EQ 80Hz/12kHz, gain control, panoramacontol,
Input chanel: 1 x stereo with Line-USB switch via RCA or USB, channel control via Rotary dial, 2-band tone control EQ 80Hz/12kHz, balancecontrol,
Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial

USB port: USB 2.0, Typ B
Dimension: 10.3 x 14.8 x 4.7 cm
Weight: 530 g

Mixer
Power supply: 5 V DC 0.5 A
Power connection: Mains input USB, type B Power supply cord with AC adapter (provided)
Housing color: Black
Material: Metal
Housing design: Desktop console housing

External mains adapter
Power supply: 100-240 V AC, 50/60 Hz
