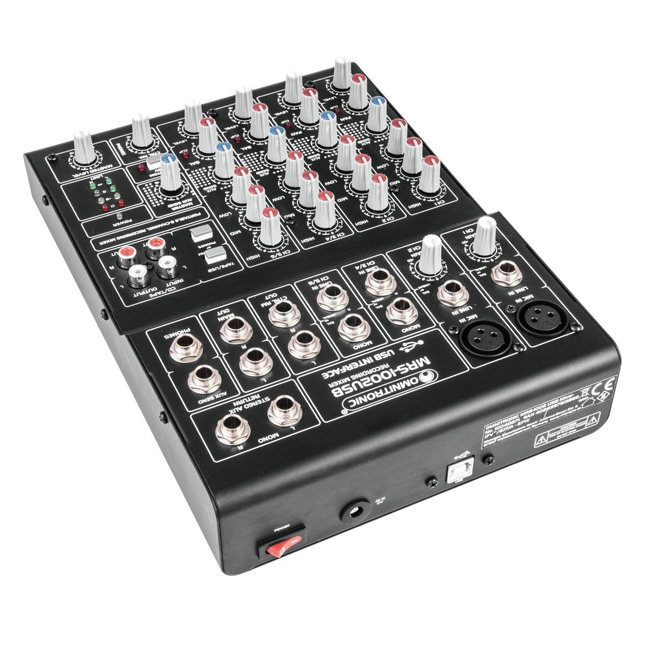

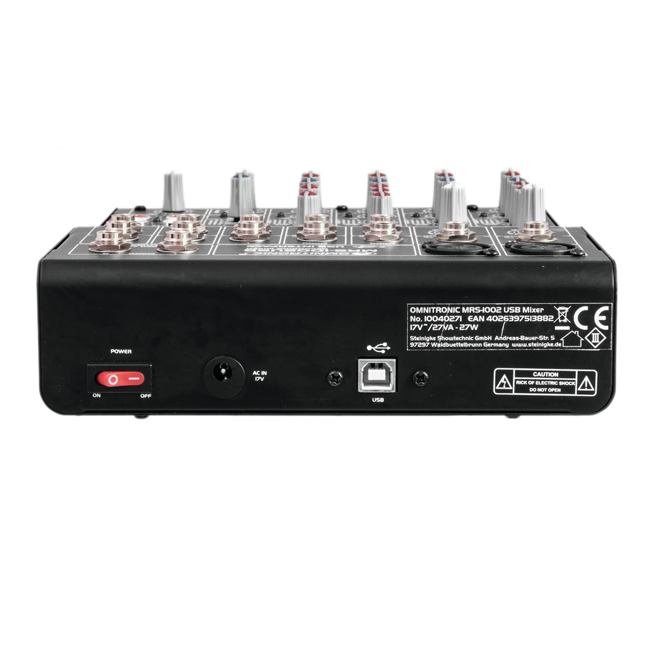

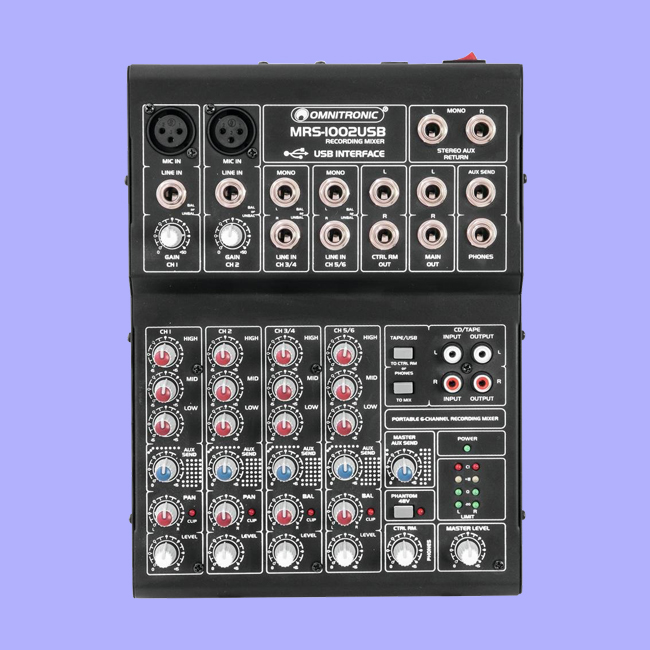

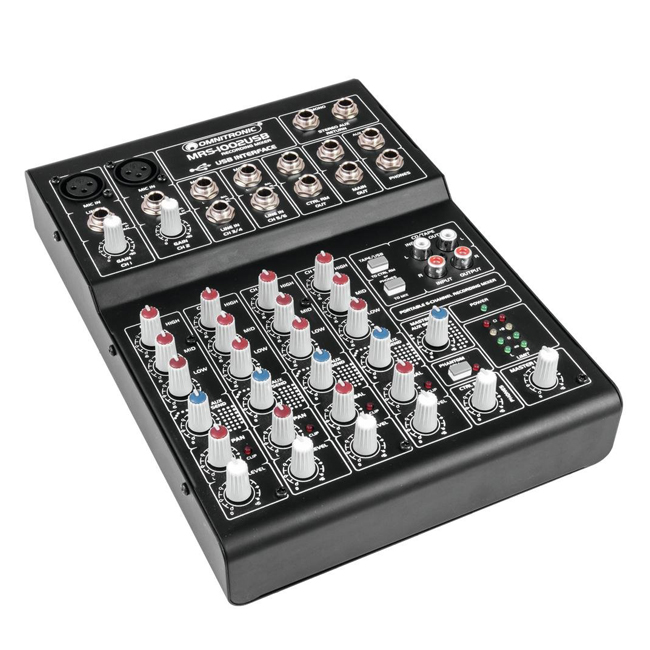

OMNITRONIC MRS-1002USB Recording Mixer
Compact audio mixer with 10 inputs and USB interface
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• Full duplex USB port: simultaneous recording and playback possible
• 2 mono input channels with gain control, 3-way EQ and pan control
• 4 stereo input channels with 3-way EQ and balance control
• Adjustable stereo aux send output; aux return input
• Tape input and output
• Separate main mix and control room outputs
• Adjustable headphones output
• +48 V phantom power, can be switched centrally
• Precise 4-digit stereo LED level display
• Operation via supplied power unit
• Rugged, compact metal housing
• Desktop console housing
Power supply: 230 V AC, 50 Hz; 17 V AC
Power consumption: 27.00 W
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >74 dB
THD: Control elements: Phantom power switch
Status LED: Power, clip, master level meter, phantom power
Connections:
Input: 2 x Microphone via 3-pin XLR
Input: 2 x Microphone via 3.5 mm jack (mono) mounting version
Input: 4 x line via 6.3 mm jack socket (mono) mounting version
Input: 1 x stereo via stereo RCA
Input: 1 x line via USB B (W) mounting version
Input: 2 x AUX returns via 6.3 mm jack socket (mono) mounting version
Output: 2 x master via 6.3 mm jack socket (mono) mounting version
Output: 2 x control room via 6.3 mm jack socket (mono) mounting version
Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version
Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Output: 1 x line via stereo RCA
Chanals:
Input chanel: 2 x mono via XLR or jack, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz, 1 Send/AUX, gain control, panoramacontol,
Input chanel: 2 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz, 1 Send/AUX, balancecontrol,
Input chanel: 1 x stereo via RCA, Routing master bus switch,
Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
USB port: USB 2.0, Typ B
Housing design: Desktop console housing
Dimension: 18.9 x 26 x 7.2 cm
Weight: 2.02 kg
⬆
