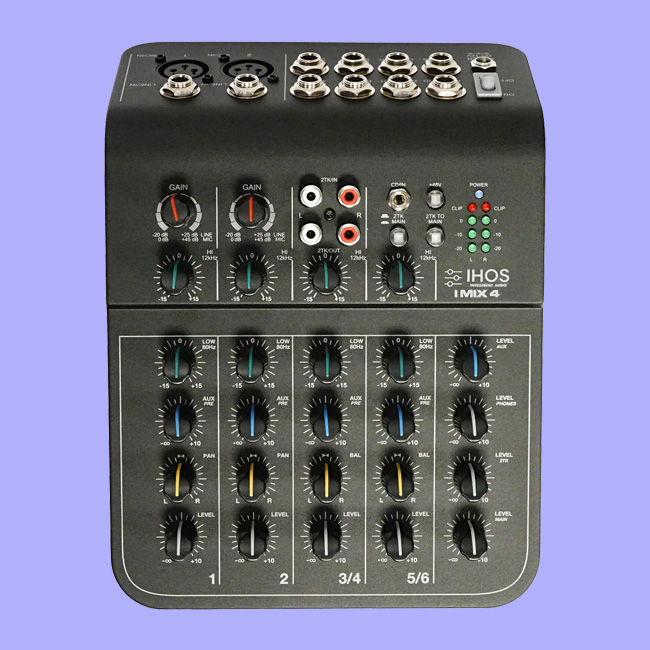

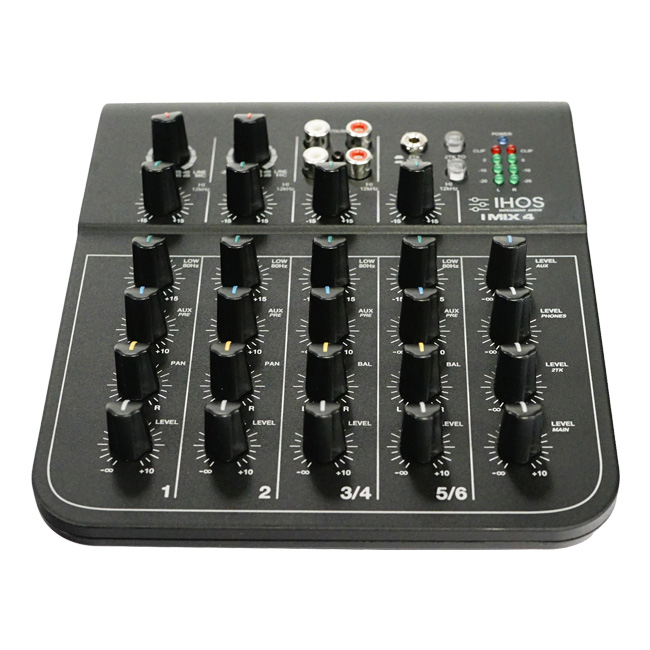

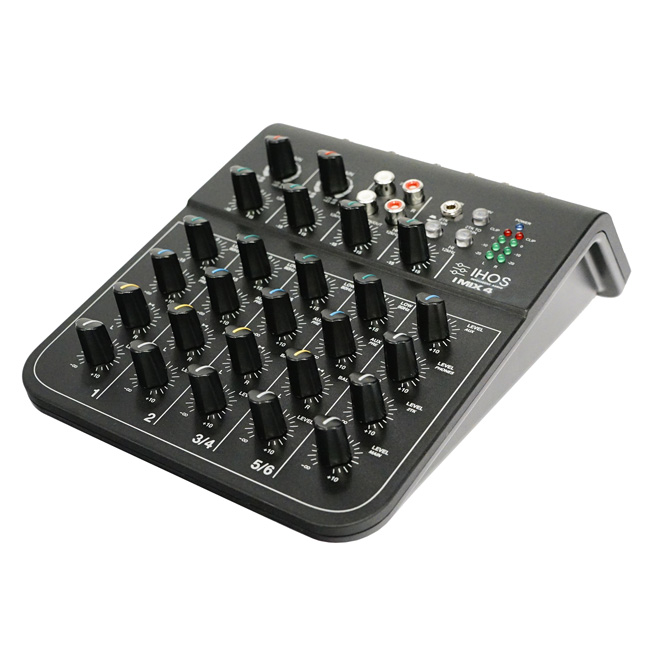

Compact, portable mixing console, 2mono + 2 stereo input, 1bus, USB interface
5644

Features
4-way mini mixing console.
2/4mic/line input, 48V phantom power, be used for condenser microphone.
2 way stereo line input.
q; 3.5mm CD input(I MIX 1 A NO).
2 band EQ, +/- 15d8 EQ at 80 Hz & 12KHz.
Main output control (L/R).
Headphone output control.

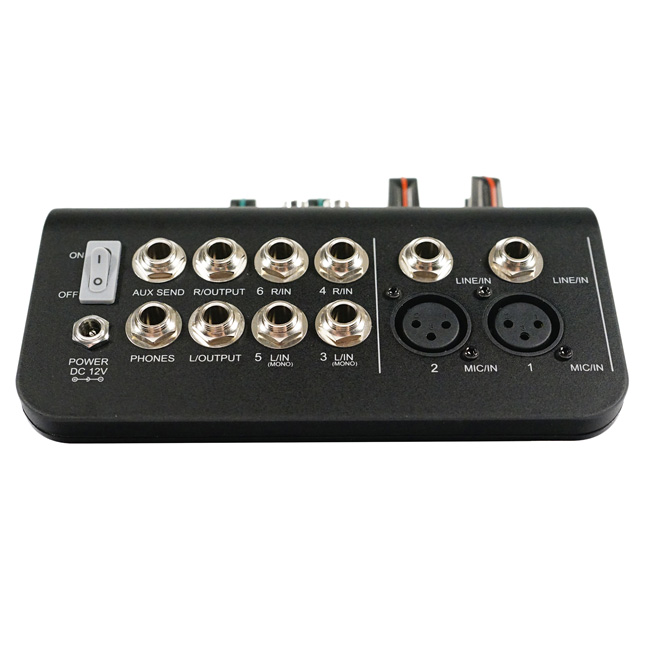

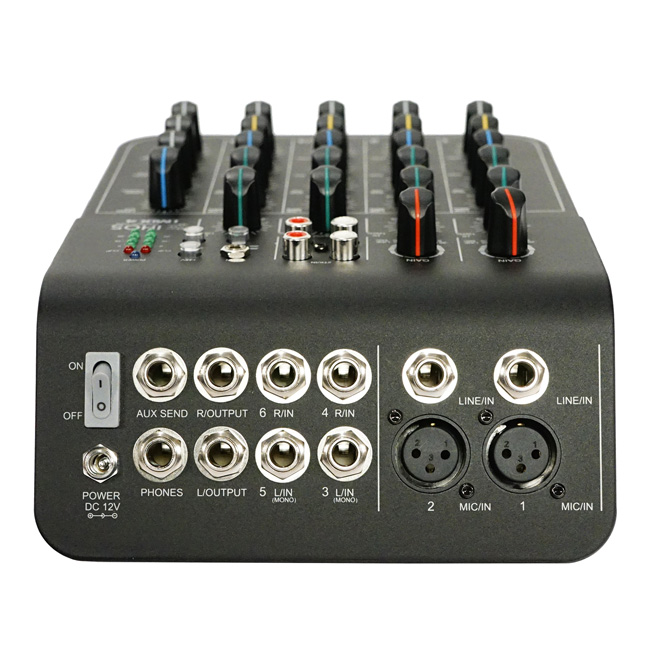

RCA input/output.
1 way Subsidiary output(I MIX 1 NO).
4 band LED level indicator.
Compact structure, which can be used in different locations.
Convenient for operating.
External supply power (100-265V 50/60Hz), which can be used in any country.

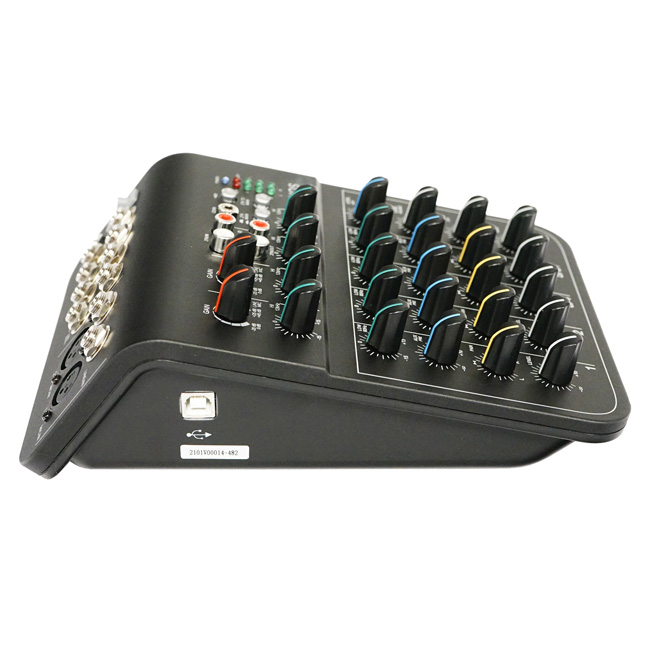

USB recording / playing function.

Technical Specifications
Frequency response: 20 Hz to 20 kHz.
THD: <0,008 %.
Residual noise: Main output - 103 dB, subsidiary output: -90 dB.
Gain scope: Mic input -20 dB to + 45 dB, Line input -20 dB to +25 dB.
Phantom power: +48 V DC.
EQ: Hi ± 15 dB @ 12 kHz, Low ± 15 dB @ 80 Hz.
Max output: Main output + 21 dBu, headphones + 18 dBu.
Input impedance: Mic 2,3 kΩ bal, Line 20 kΩ bal, CD/RCA input 24 kΩ unbalanced.
Output impedance: Main 120, RCA 1k, Headphone 25.
Level indicators: (Clip), 0, -10, -20.
Supply power: AC 100/240 Volt, 50/60 Hz, DC 12V power supply.
Consumption: 11 Watt.
Dimensions: 220 x 210 x 68 mm.
Net weight: 0,98 kg
