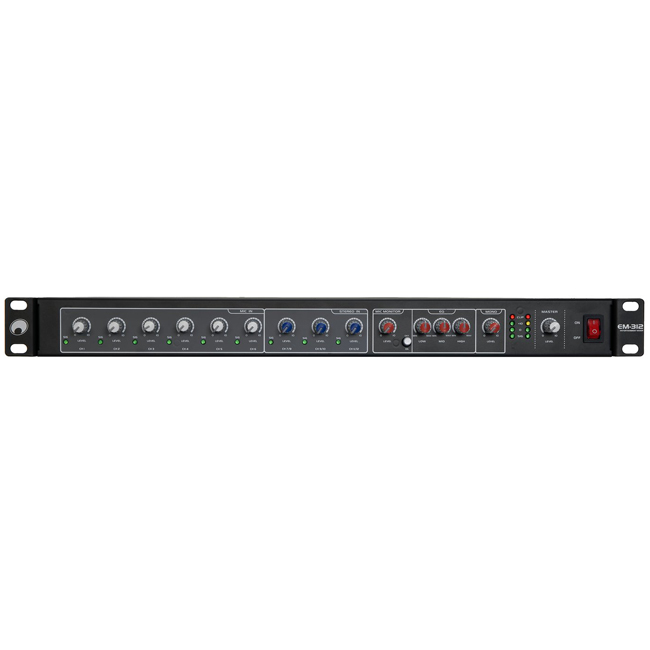

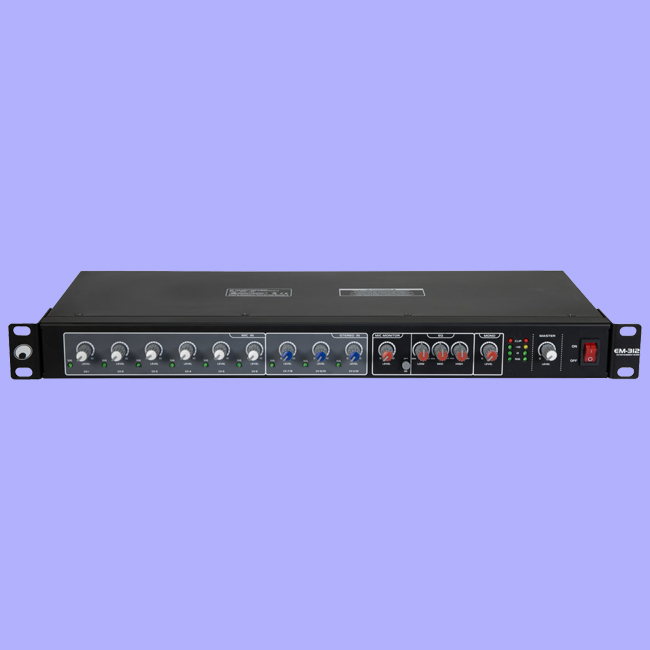

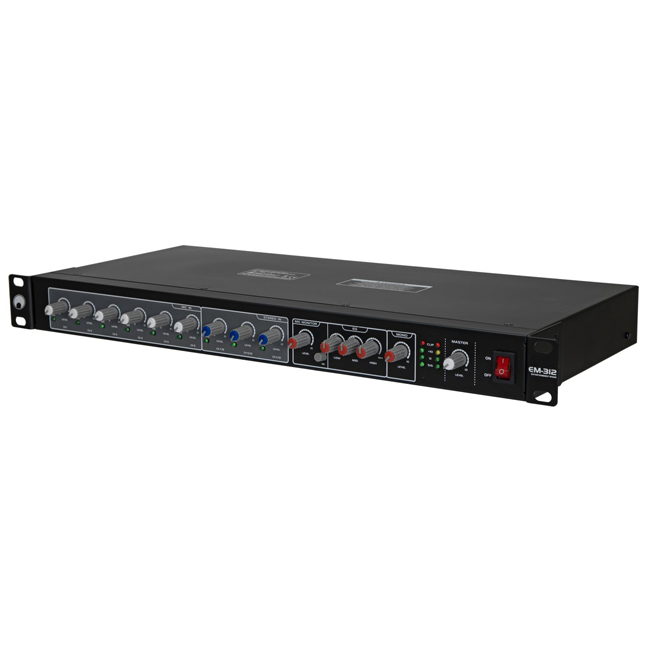

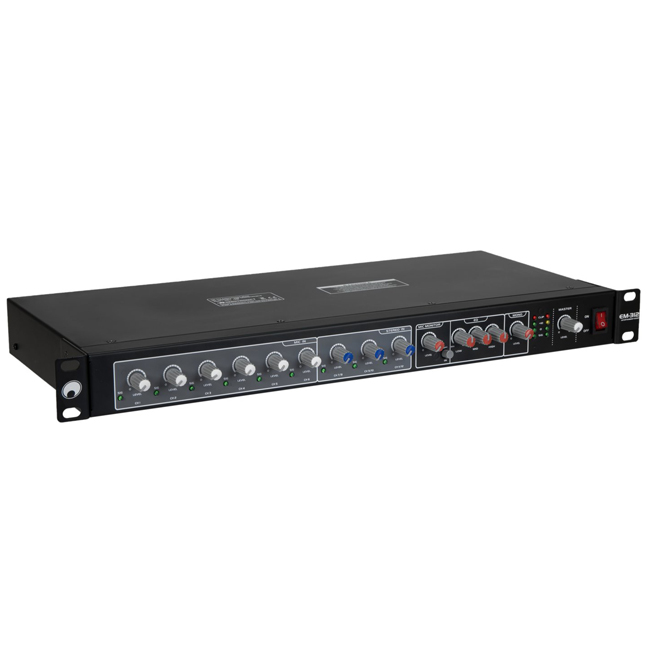

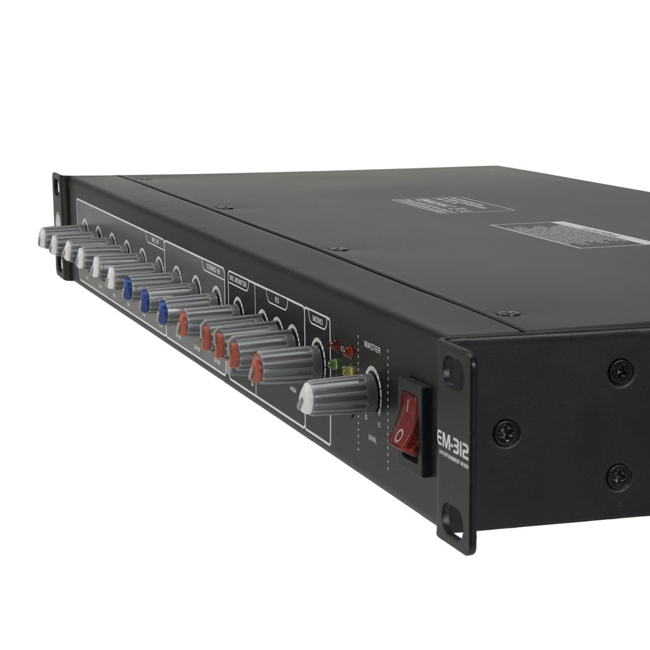

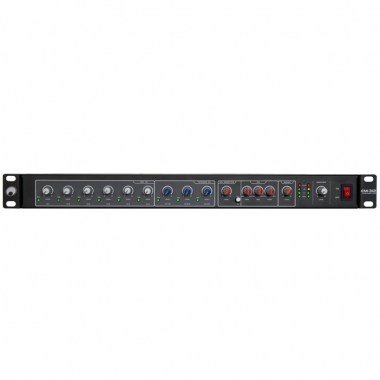

OMNITRONIC EM-312 Entertainment Mixer

The EM-312 is a slim rack-mounted 12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs. It has XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output for the mic section.
The EM-312 offers separate volume controls for all inputs in addition to volume control for the mono output and a master volume control. It has a 3-band equalizer and an adjustable priority function for microphone announcements through channel 1.

Microphone/line mixer, 6 mono channels + 3 stereo channels
• 6 mono mic/line input channels (combo jack), switchable
• 3 stereo line input channels (RCA)
• Phantom power can be switched on for each microphone input
• All input channels with separate level controls and signal LED
• Adjustable priority circuit for channel 1
• Balanced stereo XLR outputs and RCA outputs
• Adjustable monitor output (6.3 mm jack) for monitoring the microphone signals
• Adjustable mono line output (6.3 mm jack)
• Master level control, 4-digit stereo LED level meter and 3-band equalizer
• Additional screw terminals for 24 V DC power input
• Incl. mounting brackets for 483 mm rack installation (1 U)
• (19") 48.3 cm rack installation 1 U

Power supply: 230 V AC, 50 Hz Or 24 V DC
Power consumption: 12 W
Protection class: Class I

Power connection:
Mains input IEC connector (M) mounting version Power supply cord with safety plug
Mains input screw terminal
Frequency range: 20 - 22000 Hz
S/N ratio: >103 dB
THD: Phantom power: 18 V DC or 21 V DC

Impedance:
Input mic/line: 1.4 kOhm
Input line: 10 kOhm
Output 120 Ohm
Control elements: Power switch
Status LED: Signal, master level meter, clip, power

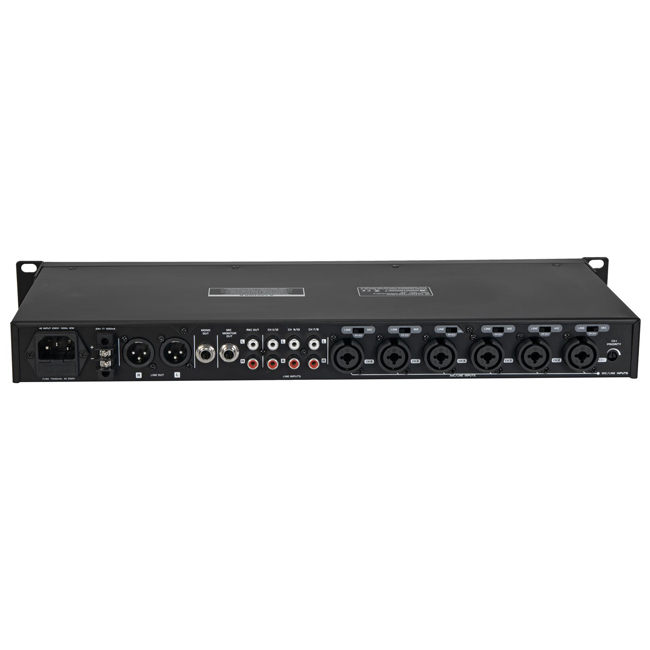

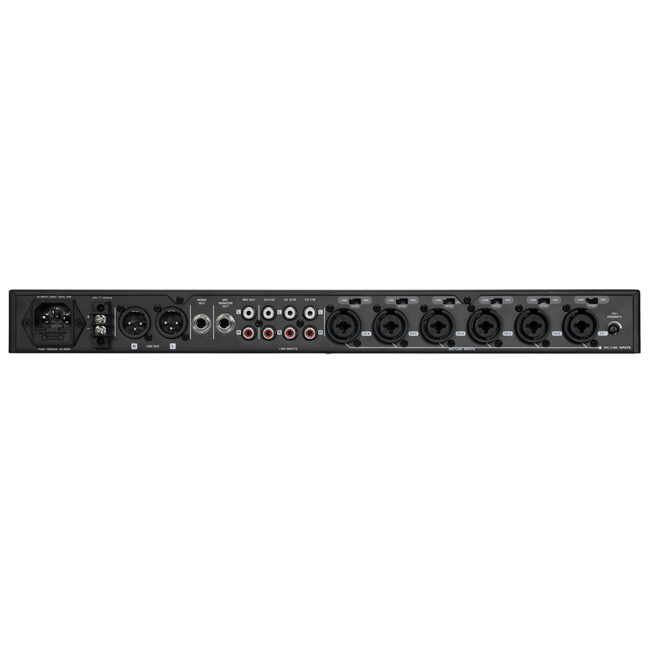

Connections:
Input: 6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 3 x line via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x mono via 6.3 mm jack socket (mono) mounting version
Output: 1 x line via 6.3 mm jack socket (mono) mounting version
Output: 1 x rec. via stereo RCA

Chanals:
Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Master output: 1 x stereo via XLR, channel control via Rotary dial
Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial

Max. level:
Input: Microphone -19 dBu
Input: line +21 dBu
Output: +21 dBu

Housing design: (19") 48.3 cm rack installation 1 U
Dimension: 48.3 x 23 x 4.45 cm
Weight: 3.04 kg
