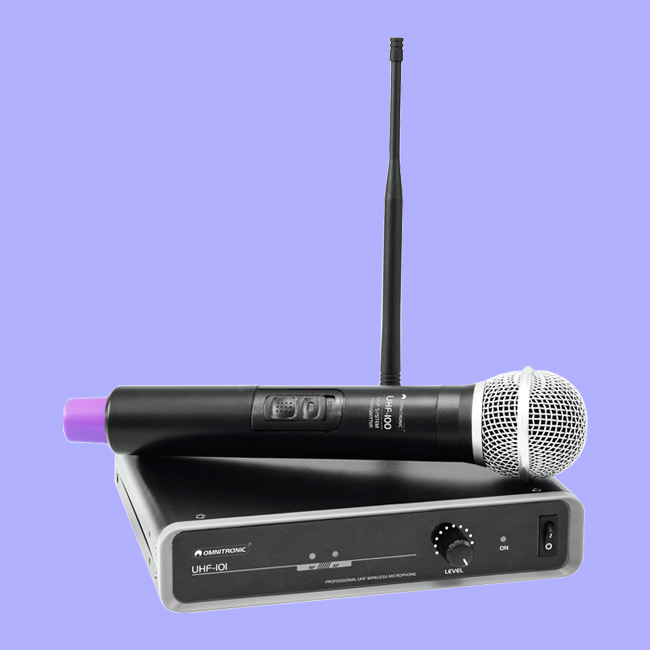

OMNITRONIC UHF-101 Wireless Mic System
MIC-01040
1-channel UHF PLL microphone system
• Receiver unit and hand-held microphone with UHF PLL technology
• Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
• Parallel operation of up to 8 transmission channels is possible without any interference
• Volume control
• XLR and 6.3 mm output
• Jack cable included
• LEDs for power, carrier and audio signal
• Microphone with color indication
• Matching pocket transmitter can be ordered separately
• 483 mm rack installation possible with optional mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Housing design: (19") 48,3 cm rack installation possible

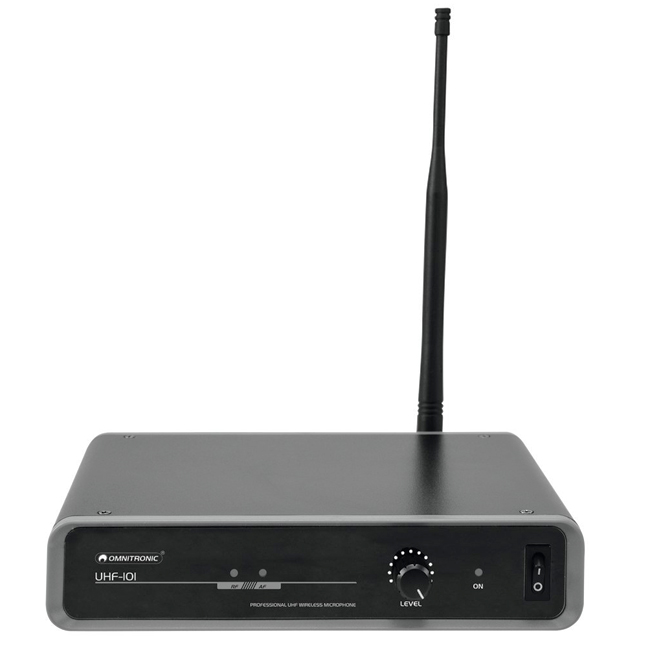

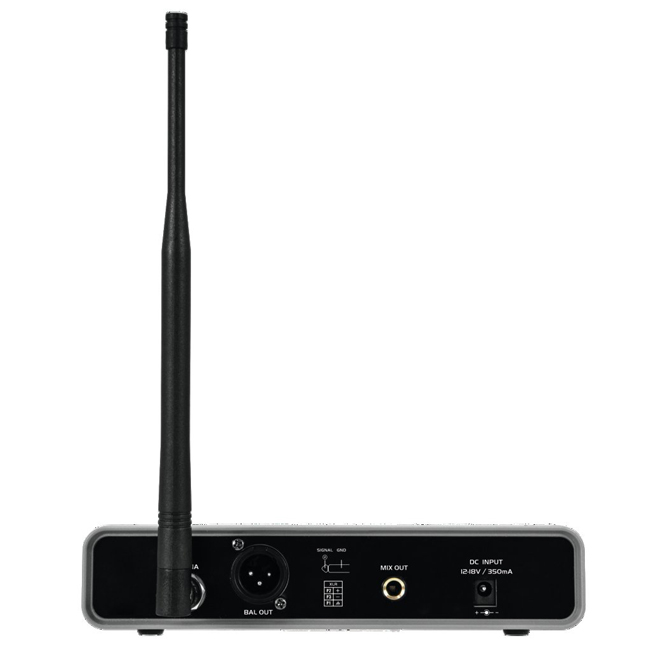

Receiver
• Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)

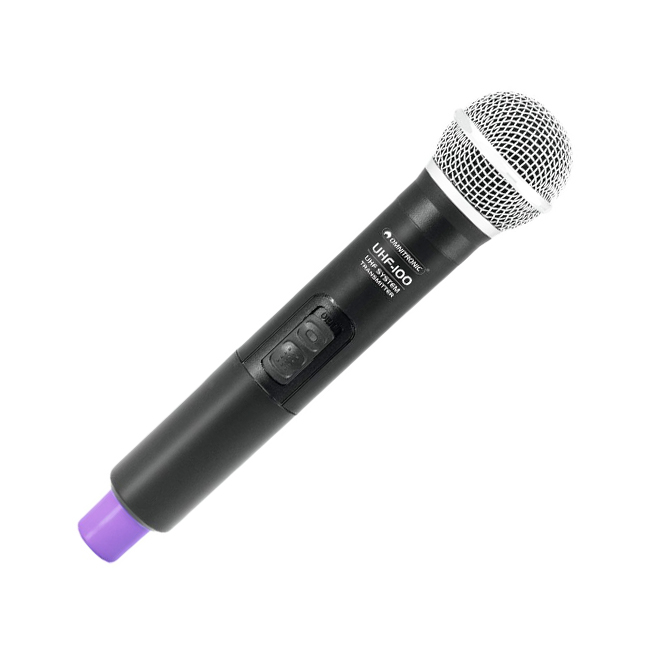

Microphone
• Mute function: No
• Polar pattern: Unidirectional
• Power connection: Battery/battery pack (not included)
|
System: |
Non-diversity |
|
Coverage: |
60 m (with line-of-sight) |
|
RF power output: |
5 mW |
|
Modulation method: |
F3F |
|
S/N ratio: |
>105 dB |
|
Selectivity: |
>85 dB |
|
T.H.D.: |
|
|
Audio outputs: |
400 mV, 2.2 kohms (XLR, bal.) |
|
200 mV, 2.2 kohms (6.3 mm jack, unbal.) |
|
|
Power supply: |
|
|
Receiver: |
100-240 V AC, 50/60 Hz via supplied power unit |
|
Microphone: |
2 x 1.5 V battery, type AA |
|
Battery life: |
approx. 10 hours |
|
Dimensions, weight: |
|
|
Receiver: |
225 x 205 x 46 mm (W x D x H), 0.7 kg |
|
Microphone: |
50 x 260 mm (D x L), 230 g |
|
Frequency range: |
40 - 18000 Hz |
|
Weight: |
1,10 kg |
|
Receiver |
|
|
Power consumption: |
5 W |
|
Height: |
4,6 cm |
|
Depth: |
22,5 cm |
|
Width: |
20,5 cm |
|
Power connection: |
Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
|
Material: |
Metal |
|
Power supply: |
110-240 V AC, 50/60 Hz |
|
Microphone |
|
|
Polar pattern: |
Unidirectional |
|
Weight: |
0,23 kg |
|
Power connection: |
Battery/battery pack |
|
Material: |
Plastic |
|
Length: |
26 cm |
|
Diameter: |
5,0 cm |
