OMNITRONIC UHF-E2 Wireless Mic System 823.6/826.1MHz

License-free 2-channel wireless microphone system

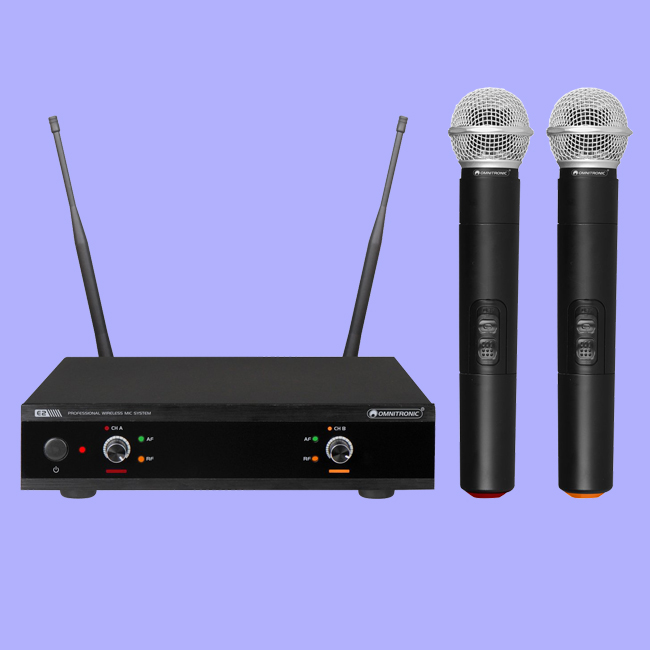

• 2-channel receiver and 2 hand-held microphones with UHF PLL technology
• Parallel operation of up to 12 transmission channels is possible without any interference
• Easy handling
• 2 separate channels with volume controls and LEDs for carrier signal and audio signal
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Microphones with color indication
• UHF 823 - 832 MHz License-free and approved in large parts of europe
• Operating range up to 60m with line-of-sight

TECHNICAL SPECIFICATIONS
Type: Wireless set
Frequency band: UHF 823 - 832 MHz
Carrier frequency: 823,6; 826,1
Frequency selection: Fixed frequencies
Modulation: FM
Range: Range up to 60m with line-of-sight
Color code: CH A= red, CH B= orange,
Weight: 1,82 kg

Receiver
Power supply: 100-240 V AC, 50/60 Hz; 13,5 V DC 150 mA
Power consumption: 6 W
Power connection: Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 20 - 20000 Hz
S/N ratio: >96 dB
THD: <0,1 % at 1 kHz
Housing color: Black
Control elements: Power switch, level control

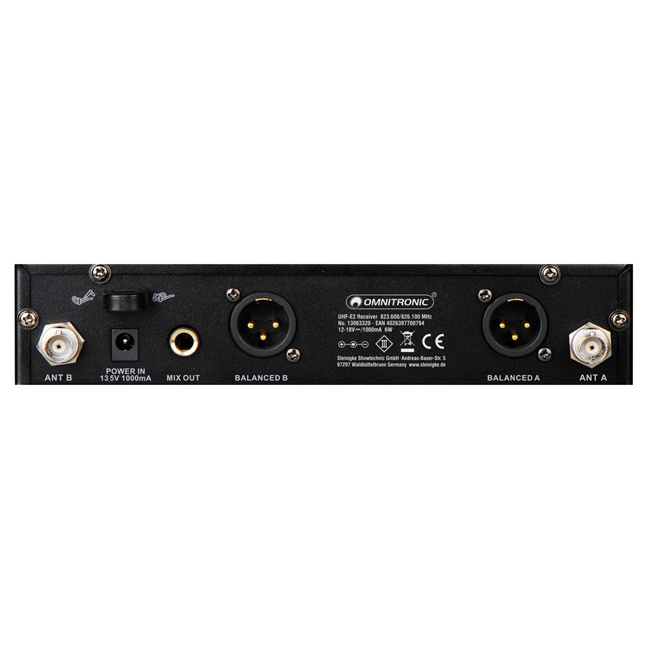

Connections: Output: line via 1 x 6.3 mm plug (unbal.); Output: Microphone via 2 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing (19") 48.3 cm rack installation possible 1 U
Weight: 1 kg

Microphone
Type: Transmitter
Power supply: 3 V DC
Power connection: Battery/battery pack
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Frequency range: 50 - 20000 Hz
Housing color: Black
RF power output: 10 mW
Switch: Mute control
Material: Plastic
Dimensions: Length: 25 cm; Diameter: Ø 5,2 cm
Weight: 205 g
