Mikrofoni
Mikrofon bežični ATW-13HH2 Audio-Technica
Proizvod je dostupan: Na stanju
With shipment Brza pošta for 0,00 KM
620,20 KM

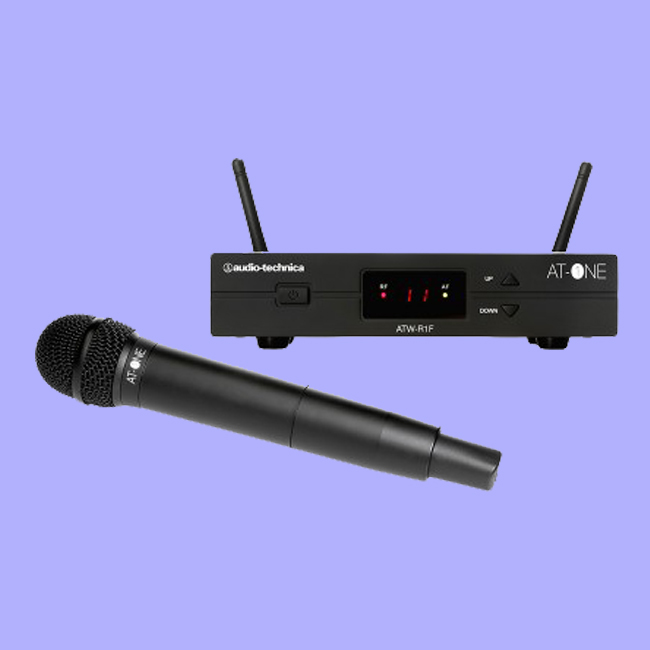

AT-ONE HANDHELD TRANSMITTER SYSTEM
• Simple to set up and use
• 2 x 4 channel frequency plan for enhanced flexibility
• Rack mountable for easy installation
• Intuitive receiver and transmitter controls
• Condenser element prevents feedback
• Up to 10 hours battery life
THE AT-ONE ENTRY LEVEL UHF SYSTEM, THE BEST EQUIPPED ON THE MARKET
AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price.
The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-13 handheld system features the ATW-T3 cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life.
• Designed for quick and easy use
• Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
• The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
• Users can choose up to 4 channels in a group

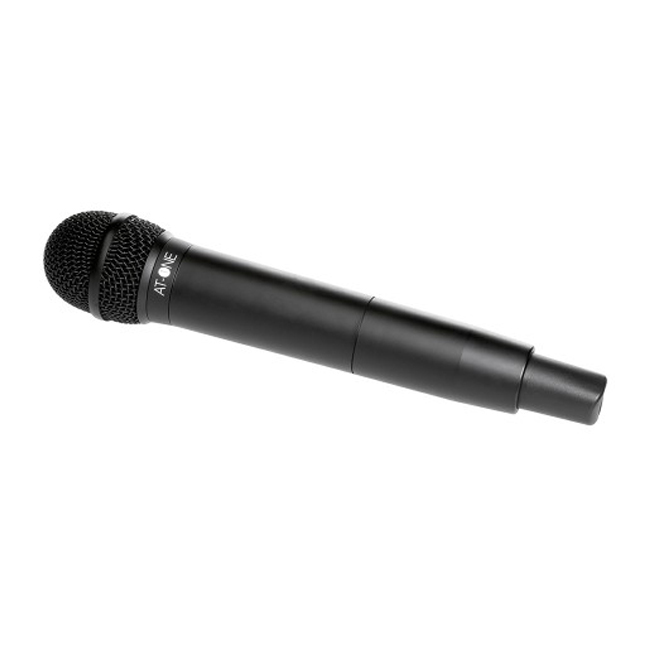

• The ATW-13 system is equipped with a cardioid condenser handheld transmitter
• RF transmission power 10mW
• Up to 10 hours' battery life with 2 x 1.5V AA batteries
• RF Indicator light
• Robust construction from high quality components
• Delivered in a transport case with a rack mount kit and detachable antennas
| Overall System | |
|---|---|
| Operating Frequencies | F-Band: 824 - 831 MHz, 863 - 865 MHz |
| Number Of Channels | 2 x 4 frequencies |
| Frequency Stability | +/- 0.005%, Phase lock loop frequency control |
| Modulation Mode | FM |
| Frequency Response | 60 Hz - 16 kHz |
| Operating Range | 60m, typical |

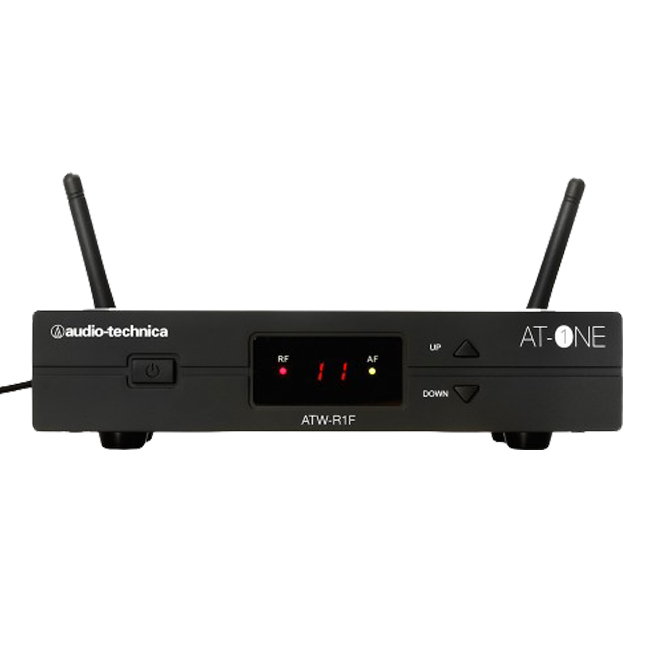

| Receiver | |
|---|---|
| Receiving System | Antenna switching diversity |
| Image Rejection | 55dB minimum |
| Dynamic Range | HH: 108 dB, BP 103 dB (@ max deviation) |
| Sensitivity | 10dBµV (S/N 60dB @ 20 kHz deviation) |
| Total Harmonic Distortion | <1% - 20 kHz deviation @ 1 kHz |
| Audio Output Unbalanced | -2dBV |
| Audio Output Balanced | 4dBV |
| Output Connectors (Microphone) | Balanced: XLRM-type |
| Output Connectors (Instrument) | Unbalanced: 6.3 mm mono jack |
| Maximum Output Level | Mic / Line (0 / -20dB) |
| Antenna Input | BNC type, 50 - BIAS voltage 12V DC 100mA each |
| Dimensions | 200 mm x 42 mm x 122 mm (W x H x D) |
| Weight | 418 g without accessories |
| Accessories Included | AC Adapter, Antennas, Rack mount adapter, protective carrying case |
| Handheld Transmitter | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following national regulatios |
| Microphone Element | Condenser Cardioid |
| Battery Type | Two 1.5V AA alkaline |
| Battery Life | 10 hours - depending on battery type and use pattern |
| Dimensions | 268 mm long - 52 mm (diameter) |
| Accessories Included | Stand clamp |
