ATW-11/P AT-One Beltpack System with ATR35cW

AT-One Beltpack System with ATR35cW
ATW-11/P AT-One Beltpack System with ATR35cW. 2 x 4 channel frequency plan for enhanced flexibility, Rack mountable for easy installation, Intuitive receiver and transmitter controls.
ATR35cW omnidirectional condenser lavalier microphone and Up to 10 hour battery life with 2 x 1.5V AA batteries.

ATW-11/P
THE AT-ONE ENTRY LEVEL UHF SYSTEM, THE BEST EQUIPPED ON THE MARKET
AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11/P comes equipped with the ATR35cW tie-clip microphone.

• Designed for quick and easy use
• Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
• The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
• Users can choose up to 4 channels in a group

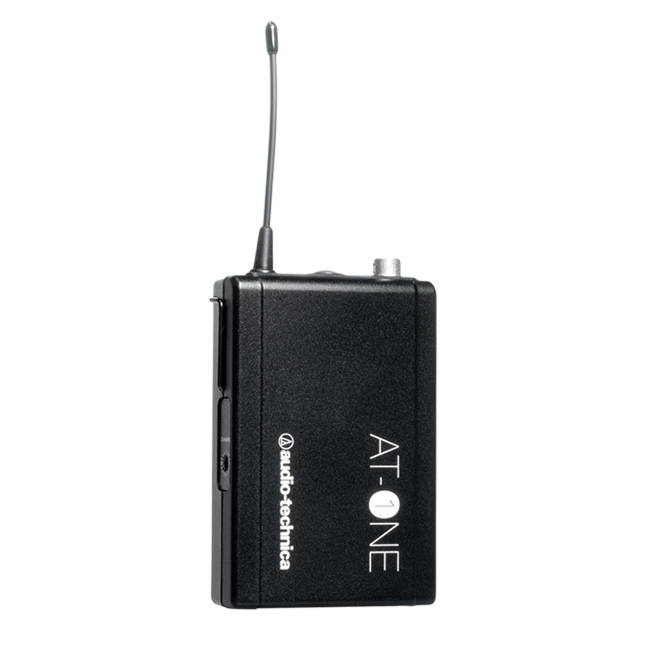

• The ATW-11 system is equipped with a discreet and robust pocket transmitter
• RF Transmitting power 10mW
• Comes with an ATR35cW miniature omnidirectional condenser microphone
• Up to 10 hours' battery life with 2 x 1.5V AA batteries
• RF Indicator light
• Robust construction from high quality components
• Delivered in a transport case with a rack mount kit and detachable antennas

“2 X 4 Channels”
AT-One's frequency plan is divided into two groups, each with 4 channels available, one in the range of authorized European frequencies and the other in the duplex gap. Users can choose up to 4 channels in a group.
“RF light indicator”

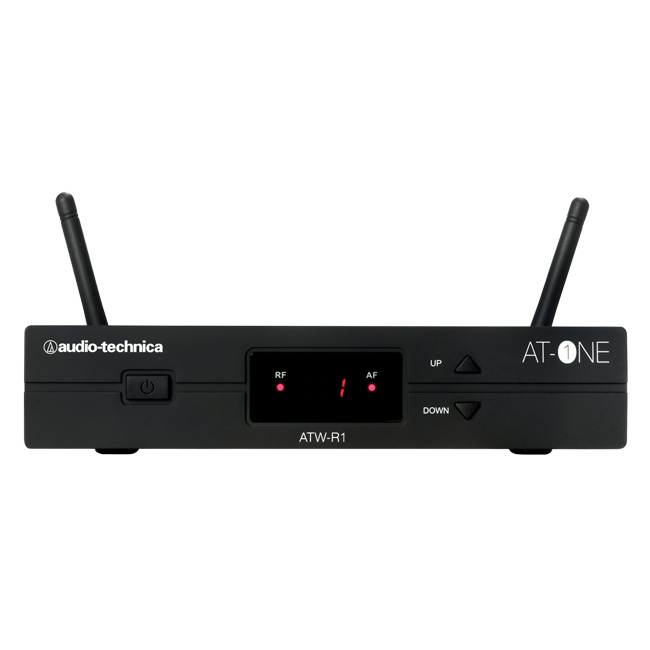

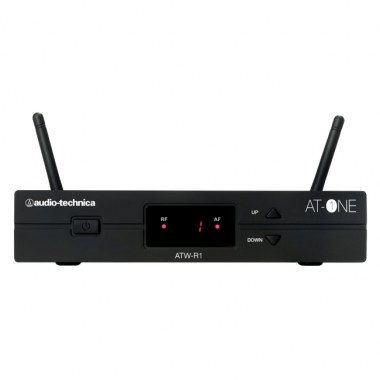

The display on the half-rack receiver clearly indicates both the RF and AF levels.
“12v power”
The ATW-R1 receiver delivers a voltage of 12V / 100 mA for powering an ATW-B80 booster antenna, active splitters, an antenna combiner or any other active component.

Delivered in a case
The AT-One comes with an ATW-R1 receiver, an ATW-T1 pocket transmitter, detachable antennas, a rack-mount kit, and a power supply, all in a hard carrying case.
Easy to use
The AT-One has been conceived and designed for quick and easy use. Simply open the carrying case, connect, and your UHF wireless system is immediately operational.

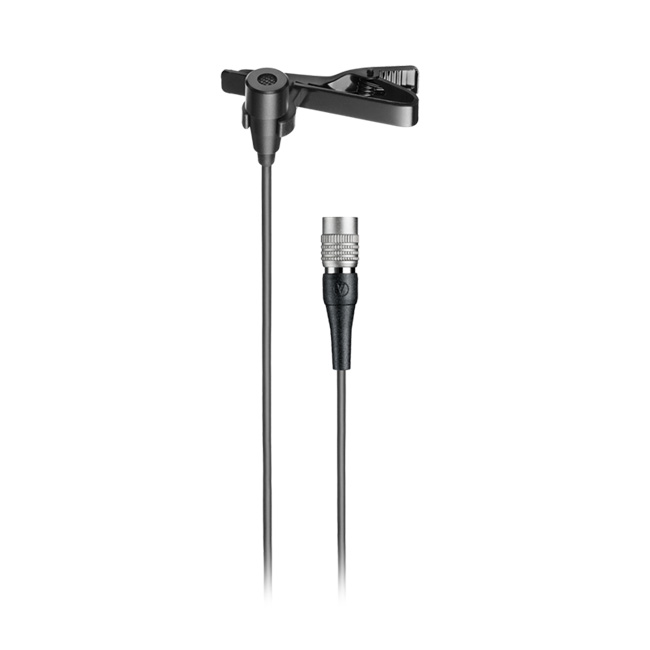

Micro-omni lavalier mic
The AT-One AT-11/P system comes with an ATR35cW omnidirectional lavalier microphone, to provide precise and intelligible speech quality.
Removable Antennae
The antennae of the AT-One wireless system are detachable, which alternatively allows remote operation via a single BNC cable.

Overall System
Operating Frequencies: F-Band: 824 - 831 MHz, 863 - 865 MHz
Modulation Mode: FM
Frequency Response: 60 Hz - 16 kHz
Frequency Stability: +/- 0.005%, Phase lock loop frequency control
Operating Range: 60m, typical
Number Of Channels: 2 x 4 frequencies

Body Pack
RF Power Output: 10 mW
Battery Life: 10 hours - depending on battery type and use pattern
Battery Type: Two 1.5V AA alkaline (not included)
Dimensions: 66 mm x 98 mm x 22 mm (W x H x D)
Input Connections:
Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Spurious Emissions: Following national regulations

Receiver
Receiving System: Antenna switching diversity
Image Rejection: 55dB minimum
Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
Maximum Output Level : Mic / Line (0 / -20dB)
Antenna Input: BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
Weight: 418 g without accessories
Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case
Audio Output Balanced: 4dBV
Audio Output Unbalanced: -2dBV
Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
Output Connectors (Microphone): Balanced: XLRM-type
Total Harmonic Distortion: <1% - 20 kHz deviation @ 1 kHz
