Specification and performance parameters
Microphone rod length: 59cm
Chassis diameter: 14cm
Base weight: 0.9KG
Base material: Zinc-based alloy
Plug: Appearance patent and structure patent
Capsule Type: Φ 9.7 Condenser
Frequency response range: (80-13000)Hz
Sensitivity: 10mV/Pa
Pointing type: Hyper cardioid type
Pointing level: 0° and 135° sensitivity difference greater than 18dB (at 1 KHz)
Output impedance: 200Ω ±20%
Output mode: Balanced
Pickup range: (10-20)cm
Power supply mode: 48V phantom power supply
Product configuration

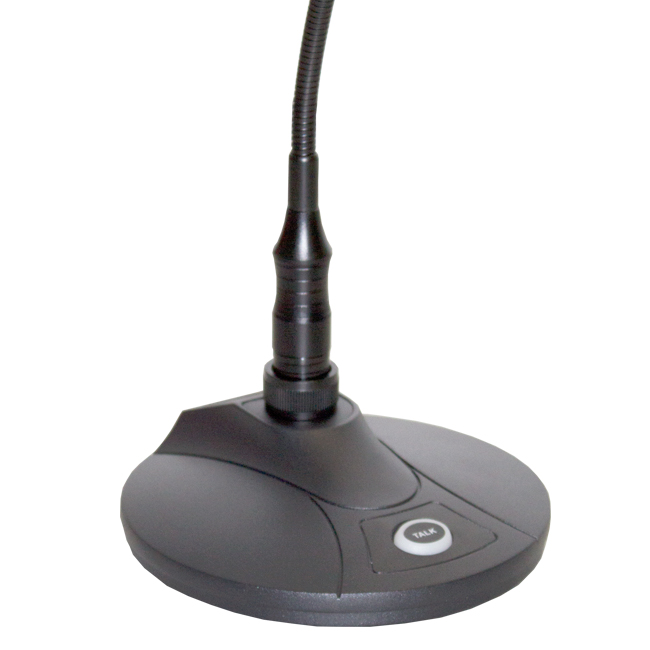

Metal base: one
Microphone body: one

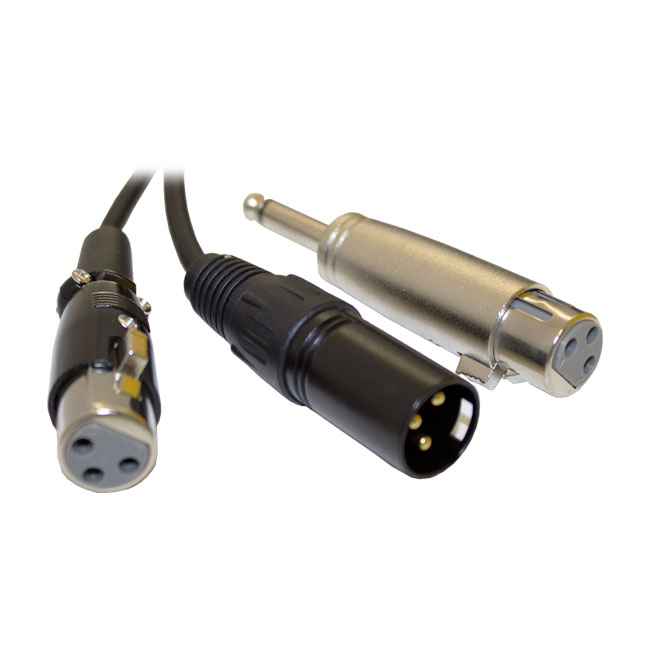

Dual-core shielded balanced output cable: one
(5.0x10M, Male and female charon)
Wind hood: one
Functional description of panel

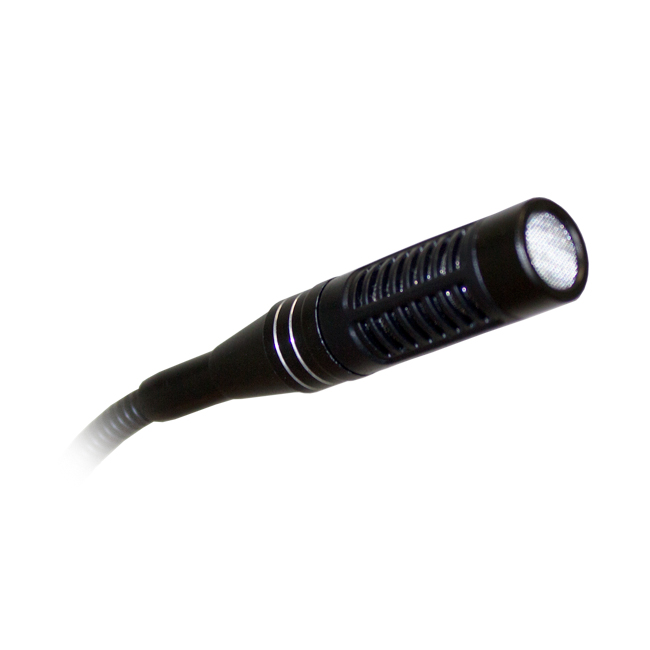

- Microphone body
- Switch
Overview

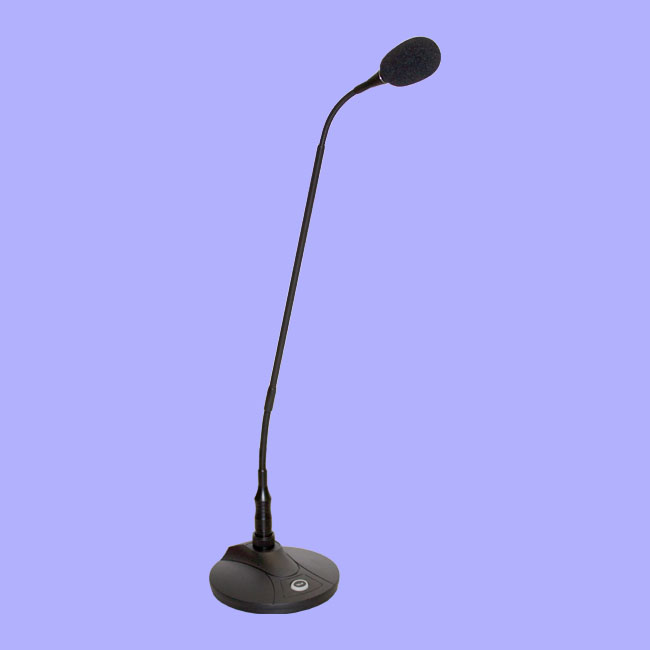

This is a newly developed conference microphone with metal base and a number of national patents.
The appearance is novel, the structure is innovative, the low and middle frequency sound range is wide, the electrical performance is excellent, the cost performance is high, the super heart-shaped characteristics are matched with the microphone body and the whole hose structure, the main performance is far better than the national standard, especially suitable for a variety of senior conference places, is the ideal product for senior conference installation engineering.
⬆
