• WRAT (Wide Range Amplifier Technology) for Naturally Vivid Sound
• Innovative Three-Stage Amplifier Circuit Brings Your Music to Life
• Optimal Gain Volume Control Guarantees Cleaner Sound
• Phase-Matched Bass Boost for Deeper Bass and a Clearer Mid-Range
• Discrete Output Stage Circuitry Means Cooler Running Temperatures

FEATURES
65 W/Ch (8 Ω, 1 kHz, 0.08% THD, 2 Channels Driven, IEC)
Three-Stage Inverted Darlington Circuitry
WRAT (Wide Range Amplifier Technology)
Phase-Matching Bass Boost
High-Current Low-Impedance Drive
Thick, Low-Impedance Bus Bar for Perfect Ground Potential
Two 8,200 µF Capacitors
Optimum Gain Volume Control
Direct Mode
1.6 mm Full Flat Chassis

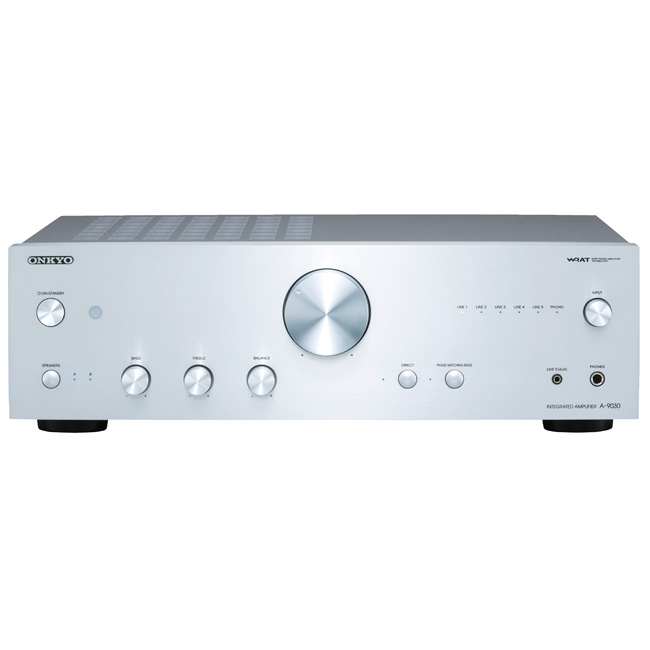

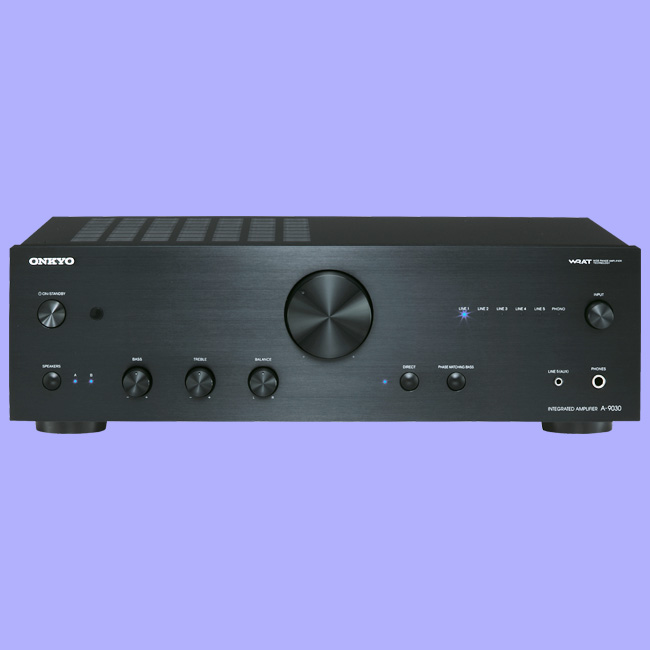

Aluminum Front Panel
Tone Control (Bass/Treble/Balance)

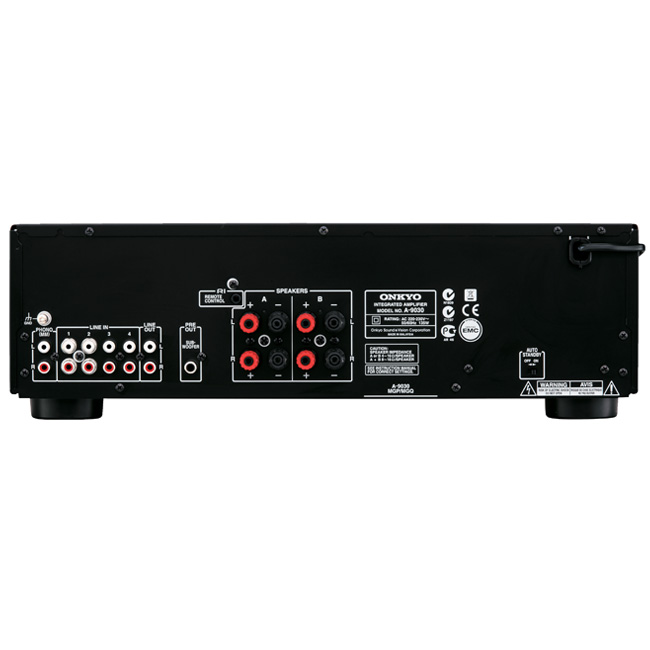

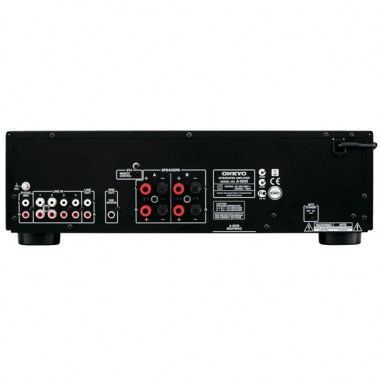

5 Analog Audio Inputs and 1 Output
Phono Input (MM)
Subwoofer Pre-Out
Speaker A/B Drive
Banana Plug-Compatible Speaker Posts
Headphone Jack

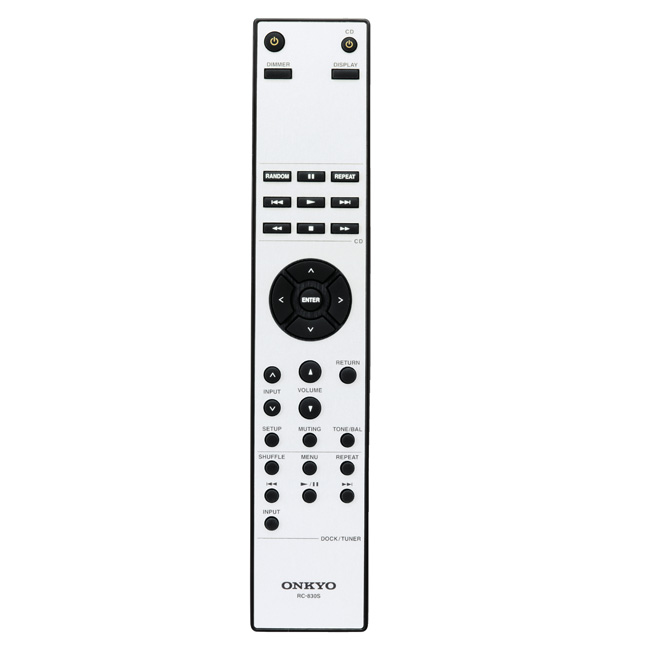

RI (Remote Interactive) Remote Control

SPECIFICATIONS
Power Output: 65 W/Ch (8 Ω, 1 kHz, 0.08% THD, 2 Channels Driven, IEC)
THD+N (Total Harmonic Distortion + Noise): 0.08% (1 kHz, 1 W Output)
Damping Factor: 60 (1 kHz, 8 Ω)
Input Sensitivity and Impedance:
175 mV/33 kΩ (Line)
4.8 mV/47 kΩ (Phono MM)
Rated RCA Output Level and Impedance: 0.175 V/2.2 kΩ (Rec Out)
Phono Overload: 100 mV (MM, 1 kHz, 0.5%)
Frequency Response: 10 Hz−100 kHz/+1 dB, -3 dB (Line 1)
Tone Control:
±14 dB, 100 Hz (Bass)
±14 dB, 10 kHz (Treble)
+8 dB, 80 Hz (PM Bass)
Signal-to-Noise Ratio:
105 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance: 4 Ω–16 Ω (A or B), 8 Ω–16 Ω (A + B)

General
Power Supply: AC 220–230 V~, 50/60 Hz
Power Consumption: 135 W
Standby Power Consumption: 0.3 W
Dimensions (W x H x D): 435 x 139 x 330.3 mm
Weight: 7.4 kg

A-9030 (B) Crna
A-9030 (S) Siva
