• Hi-Current Non-Phase-Shift Amplification
• Hi-Grade 384 kHz/32-bit DAC
• Quick-Access Presets
• Ready for Internet Radio and Spofify Connect
• Supports for Hi-Res Audio

HIGHLIGHTS
110 W per Channel
Internet Radio and Music Streaming including Spotify Connect
Phono Input
Hi-Current Amp Design
384 kHz/32-bit Hi-Grade DAC
4 Quick-Access BGM Presets

AMPLIFIER AND CONNECTION FEATURES
110 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC); 115 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
Non-Phase-Shift Amp Design for Realistic Sound Imaging
Discrete Amplifier Design with Massive EI Transformer
Two Custom-Made 8,200 μF Hi-Current Capacitors
AKM AK4452 384 kHz/32-bit Hi-Grade DAC
Plays Music from Mass-Storage-Class USB Memory Devices
Supports Onkyo Remote App for Control of Receiver via iPod touch/iPhone and Android™ Devices*1
Plays Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, and LPCM)
Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*2
Certified with Windows® 8 and DLNA Version 1.5
Direct Mode

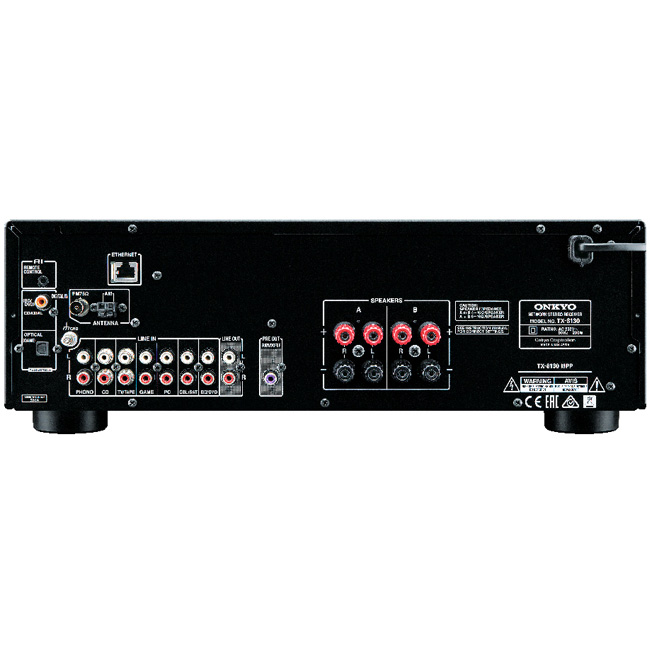

2 Digital Audio Inputs (1 Optical and 1 Coaxial)
6 Analog Audio Inputs (Excluding Phono Input) and 1 Output
MM Phono Input
Subwoofer Pre Out
Speaker A/B Drive
Headphone Jack
*1 Compatible models: iPod touch 3rd generation or later, iPhone 3GS or later running iOS 4.2 or later; Android 2.1 or later.
*2 Availability of services depends on region.

TUNER FEATURES
AM/FM Tuner with 40 Station Presets
Preset Station Naming (Up to 10 Characters)

OTHER FEATURES
Anti-Vibration Oval Chassis
Banana Plug-Compatible Speaker Posts
Front USB Port Supports WAV 96 kHz, DSD 2.8 MHz, and MP3 Playback
Auto Power On via Optical When Signal is Detected
Independent Bass, Treble, and Balance Controls
Network Standby Capability
3-Mode Display Dimmer (Normal/Dim/Dimmer)
Sleep Timer
Battery-free Memory Back-up
Compatible with RI (Remote Interactive) Dock for iPod/iPhone

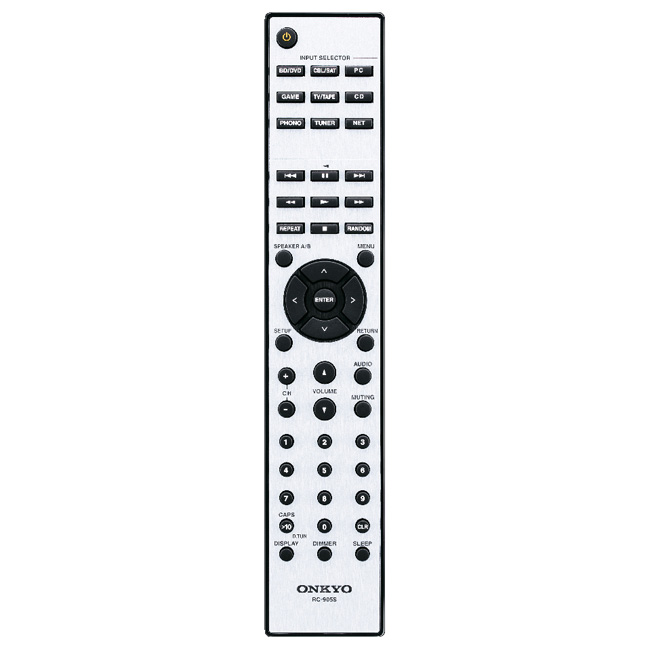

Full-Function RI Remote Control

SPECIFICATIONS
Power Output:
110 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
115 W/Ch (6 Ω, 1 kHz,
2 Channels Driven, JEITA)
Dynamic Power:
170 W (3 Ω)
150 W (4 Ω)
90 W (8 Ω)
THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance:
200 mV/47 kΩ (Line)
3.5 mV/47 kΩ (Phono MM)
Rated RCA Output Level and Impedance: 1 V/680 Ω (Subwoofer Pre Out)
Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control:
±10 dB, 100 Hz (Bass)
±10 dB, 10 kHz (Treble)
Signal-to-Noise Ratio:
106 dB (IHF-A, Line In, Speaker Out)
80 dB (IHF-A, Phono In, Speaker Out)
Speaker Impedance: 4 Ω–16 Ω
Headphone Output Impedance: 390 Ω
Headphone Rated Output: 200 mW (32 Ω, 1 kHz, 10%)

Tuner Section
Tuning Frequency Range:
FM 87.5 MHz–108 MHz
AM 522 kHz–1611 kHz
      530 kHz–1710 kHz
FM/AM Preset Memory: 40 Stations

General
Power Supply: AC 230 V~, 50 Hz
Power Consumption: 200 W
Standby Power Consumption: 0.2 W
No-Sound Power Consumption: 45 W
Network Standby Power Consumption: 2.0 W
Dimensions (W x H x D): 435 x 149 x 328 mm
Weight: 7.9 kg
