• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in several frequency bands: DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (794-806 MHz) and HH2 (821-832 and 863-865 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Network-enabled system, featuring the ATW-R3210N receiver*, offers network monitoring and control via Wireless Manager software
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup - Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks
*Not available in all frequency bands, please check the configurable selection or contact your local Audio-Technica contact for further information.

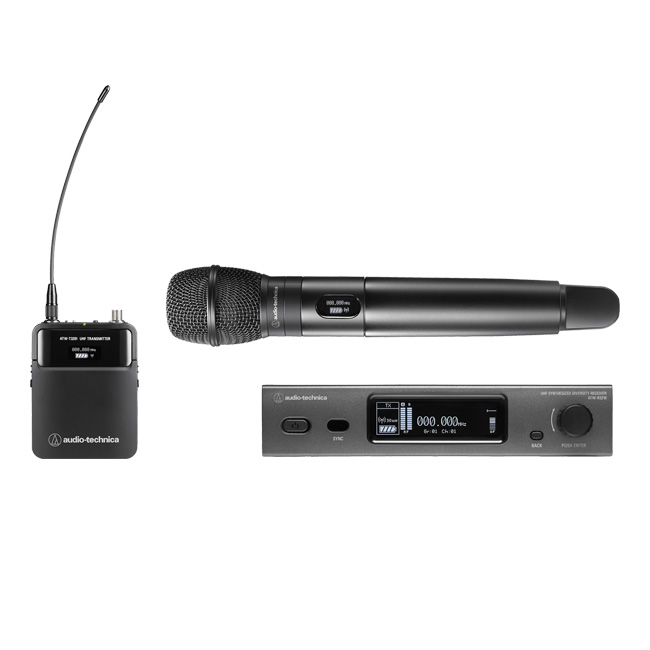

Overall System
Operating Frequencies:
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Maximum Deviation:
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Frequency Response:
ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
Frequency response depends on attached microphone element
Operating Range:
100 m (328')
Open range environment with no interfering signals.
Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
Simultaneous Use:
40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent

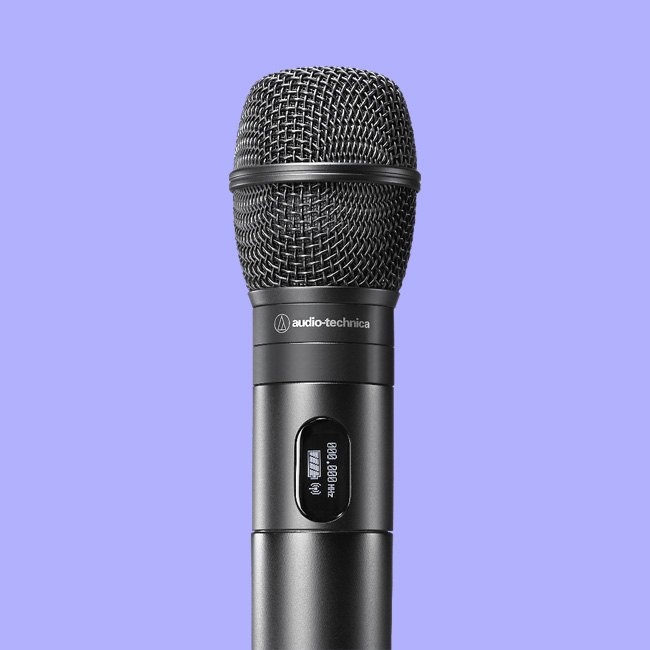

Handheld Transmitter
RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions: Following Federal and National Regulations
Battery Type: Two 1.5V AA, not included
Battery Life:
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Dimensions:
ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter
ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
Net Weight:
ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
ATW-T3202/C510: 330 g (11.6 oz), without batteries
ATW-T3202/C710: 314 g (11.1 oz), without batteries

Body Pack
RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life:
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Battery Type: Two 1.5V AA, not included
Dimensions:
64 mm x 82 mm x 23 mm (W x D x H)
2.52" x 3.22" x 0.91" (W x D x H)
Input Connections:
cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
Net Weight: 102 g (3.6 oz), without batteries
Spurious Emissions: Following Federal and National Regulations

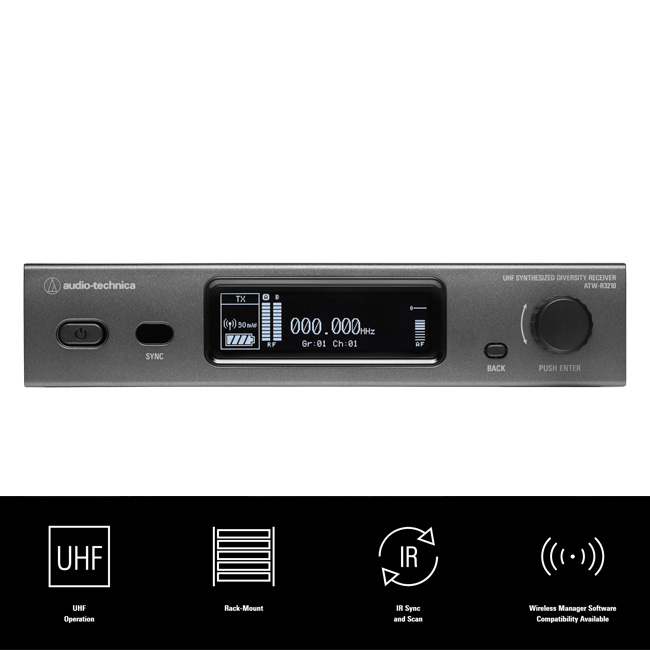

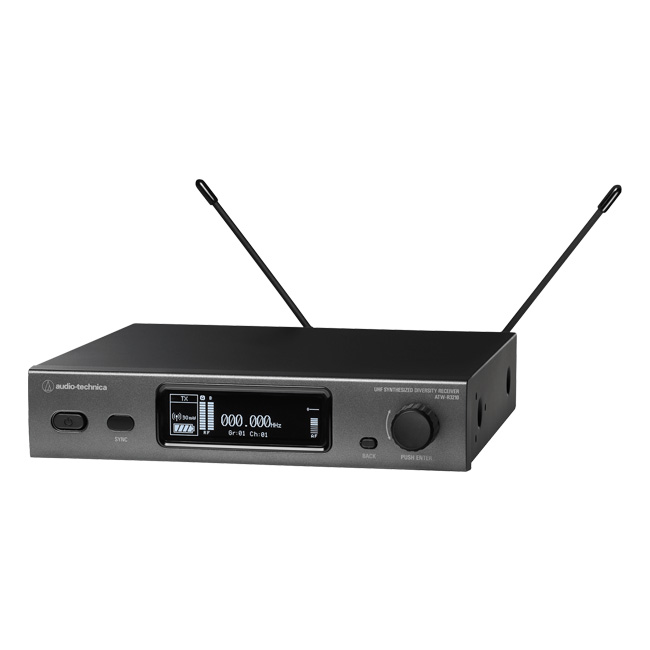

Receiver
Receiving System: True Diversity
Image Rejection: 60 dB nominal
Maximum Output Level:
XLR, balanced: +14 Dbv
6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input: BNC-type, 50 ohms
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions:
210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27" x 7.52" x 1.71" (W x D x H)
Weight : 1100 g (38.8 oz), without accessories
Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
