HDMI 2.0 compliant
● Support 4k×2k@60Hz transmission
● Up to 18Gpbs bitrate
● Multiple strands of 28AWG pure copper core
● 5-Layer anti- interference structure, shielding rate up to 85%
● Detachable protection caps with chain
● 50um plating connectors durable over 10000 repeated plug and unplug
● Stainlessstainlessscrew lock
● Velcro strap for easy storage
● Synchronzied audio and video loss less transmission
● Molded connectors with strain relief

PERFORMANCE
Nominal Impedance: 100±10Ω
Nominal Capacitance: 84±2pF/m
Nominal Velocity of Propagation: 2.38 × 105km/s
DC Resistance: 195 Ω/km
Dielectric Strength: DC500V <1min
Voltage Rating: 30V

STANDARD
RoHS Yes

ENVIRONMENT
Minimum Bend Radius: 50mm
Working Temperature: -20 °C ~80°C

PHYSICAL

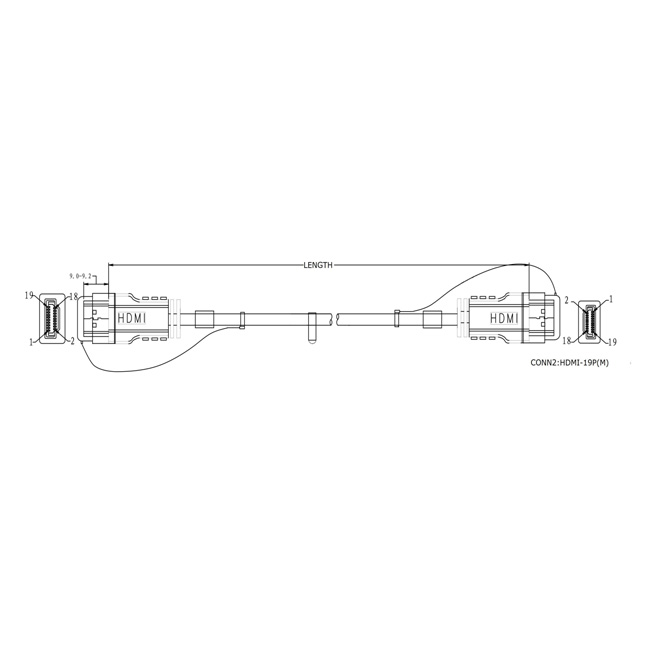

Dimensions(Net): Connector 42mm×21mm×11.4mm
Weight (Net):
5m: 0.95kg
