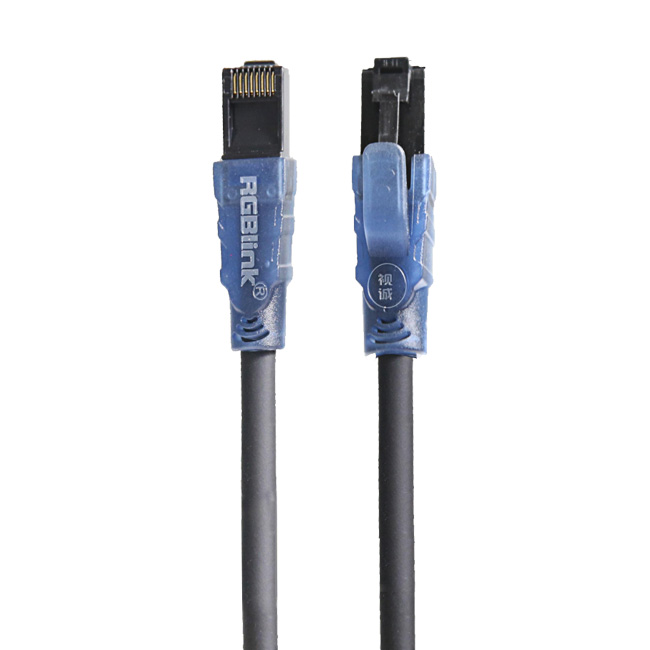

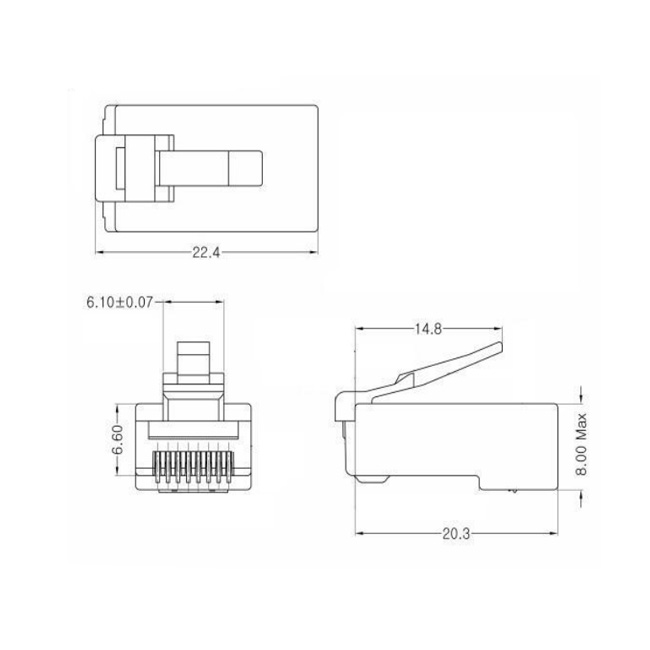

● Durable break-resistant connector
● Copper terminals with anti-oxidation Nickle & Gold plating
● Easy to see florescent connector boot
● Extra wide latch for quick connection/removal
● Dual PVC jackets with high strength and heat resistance
● Pure copper wire core , each formed by 7 independent wire to conduct with low resistence
● 50um plating connectors durable over 1000 repeated plug and unplug
● Velcro strap for easy storag

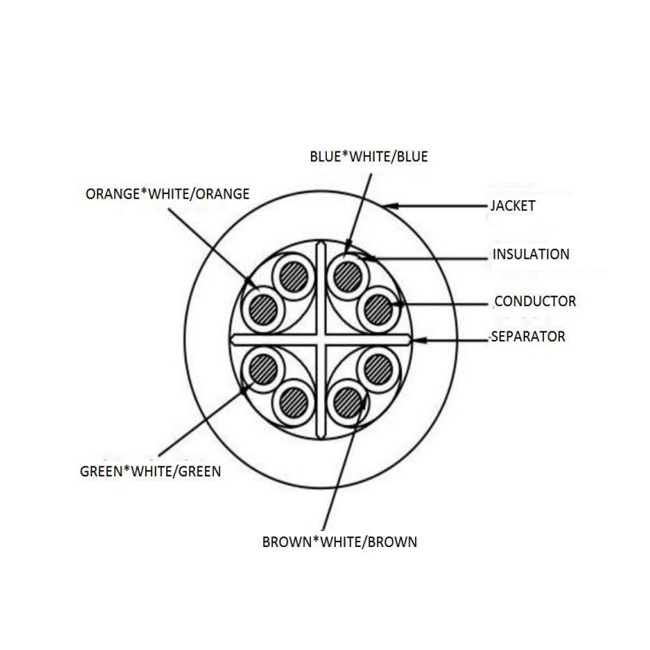

CONDUCTOR
Wire Guage: 24AWG
Material: Bare Copper Twisted Pair
Cord Size: 7/0.2/BC+0.008

INSULATION
Avg.Thickness: 0.2mm
Min.Thickness: 0.16mm
Material: HD-PE
Color: Orange*White/Orange, Green*White /Green, Blue*White/Blue, Brown*White/Brown Diameter 0.98 ± 0.05mm

JACKET
Avg.Thickness: 0.6+0.05mm
Material: 110P Matte
Color: Matte Black
Diameter: 6.0+0.015m
